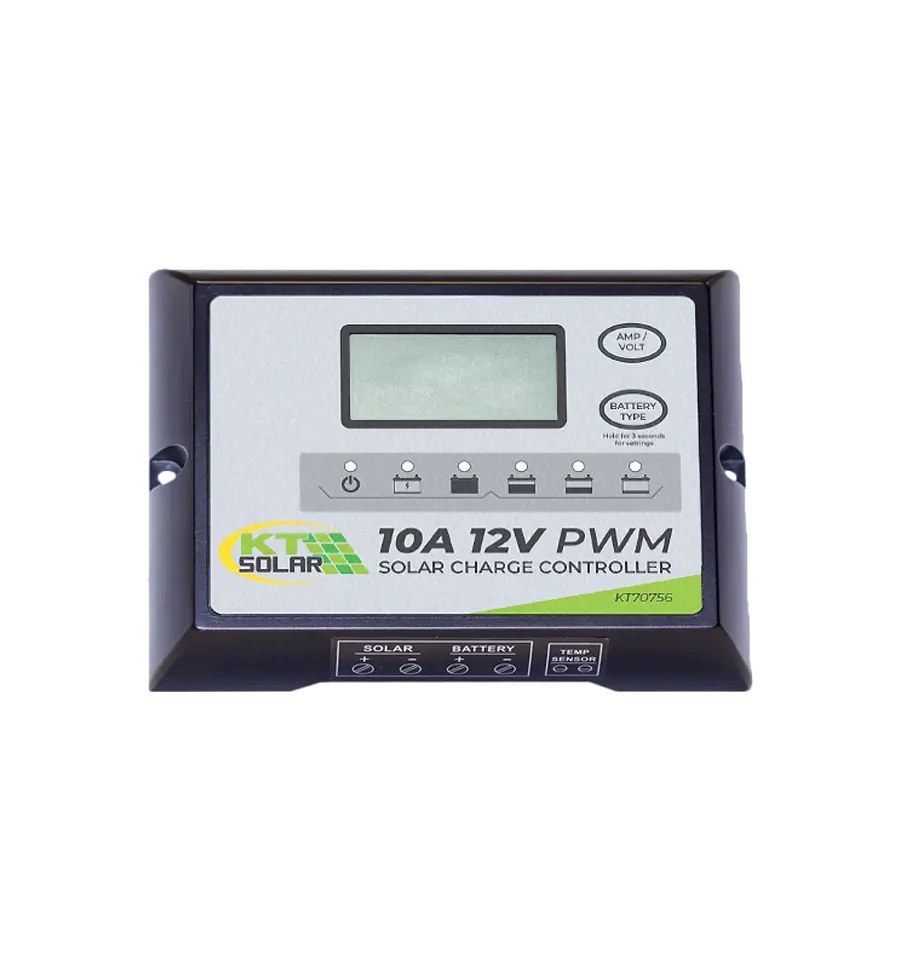

KT 12 V 10 A PWM Solar Charge Controller (Model KT70756)
KT 12 V 10 A PWM Solar Charge Controller (Model KT70756)
Couldn't load pickup availability
The KT 12 V 10 A PWM Solar Charge Controller (Model KT70756) offers dependable charge regulation for smaller solar systems. Compatible with solar panels up to approximately 120 W, it features selectable battery settings (AGM, GEL, Wet, Calcium, Lithium), an intuitive LCD display, and battery temperature compensation.
Built with an IP65 enclosure for dust and splash resistance and equipped with LED indicators for real-time monitoring, the controller is ideal for compact solar applications, caravans, marine, rooftop, or off-grid setups. Its PWM charging algorithm protects batteries from overcharging while ensuring efficient charging performance under Australian environmental conditions.
Key Features
- 12 V solar charge controller with up to 10 A maximum charge current
- LCD screen plus LEDs for clear system status monitoring
- Compatible with multiple battery types: AGM, GEL, Wet, Calcium, Lithium
- Battery temperature sensor port included for accurate temperature compensation
- IP65-rated housing for outdoor use in dusty or wet conditions
- Efficient PWM charging designed for longevity and performance
- Supports solar inputs up to approximately 120 W on 12 V systems
Specifications
| Product Model / Code | KT70756 |
| Input Voltage | 12 V nominal (designed for 12 V systems) |
| Maximum Charge Current | 10 A |
| Maximum Panel Power (12 V) | Approximately 120 W |
| Supported Battery Types | AGM, GEL, WET, Calcium, Lithium |
| Display | LCD screen plus 6 LED status indicators |
| Temperature Sensor Port | Yes |
| Charging Stages | Trickle, Boost, Absorb, Float, Full Charge, Maintain Float |
| Enclosure Rating | IP65 (dust and splash resistant) |
| Operating Temperature Range | –20 °C to +80 °C |
| Ideal Applications | Small solar systems, RVs, caravans, marine, off-grid setups |
| Warranty | 12 months manufacturer warranty |
