Dual‑Circuit Battery Isolator Switch – 3‑Position ON/OFF/COMBINE (12–32 V)
Dual‑Circuit Battery Isolator Switch – 3‑Position ON/OFF/COMBINE (12–32 V)
Couldn't load pickup availability

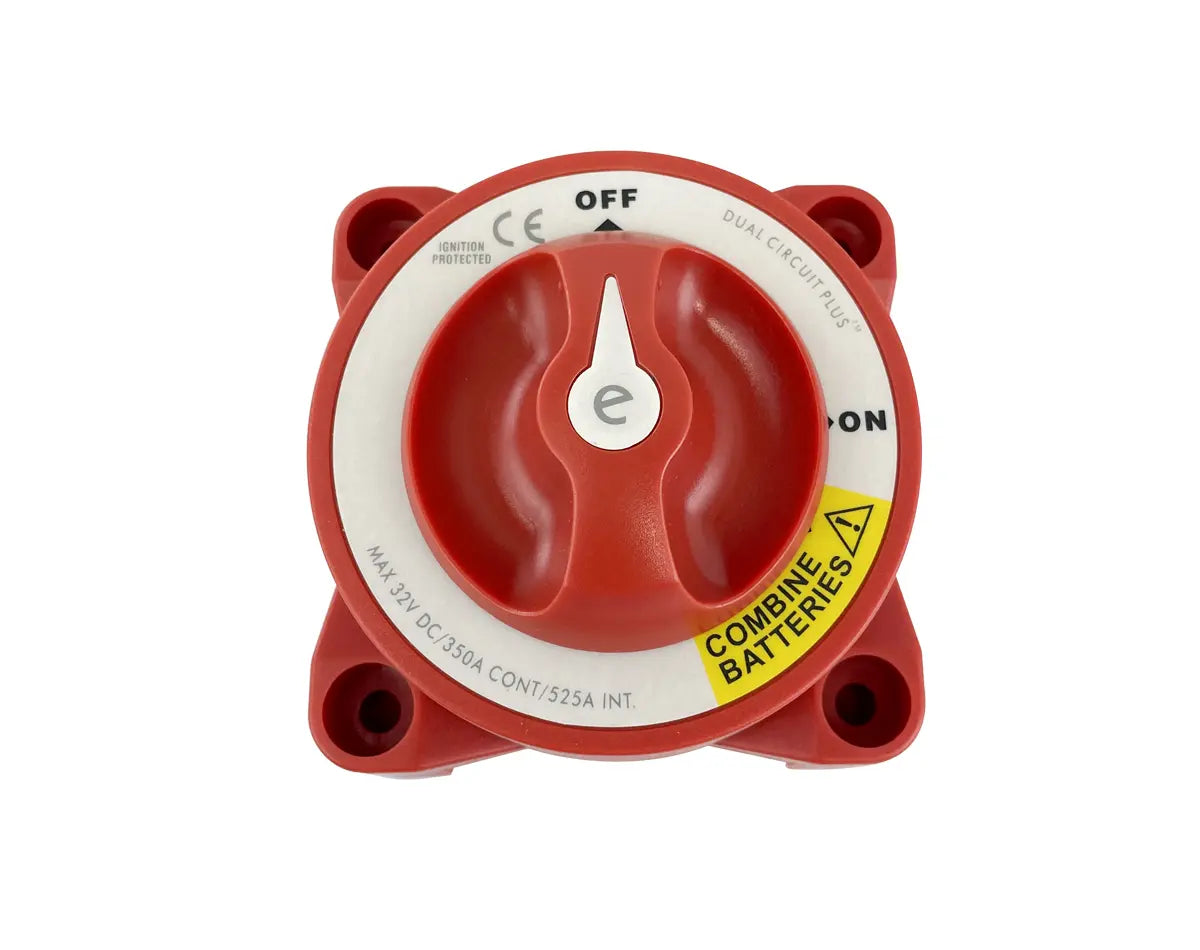

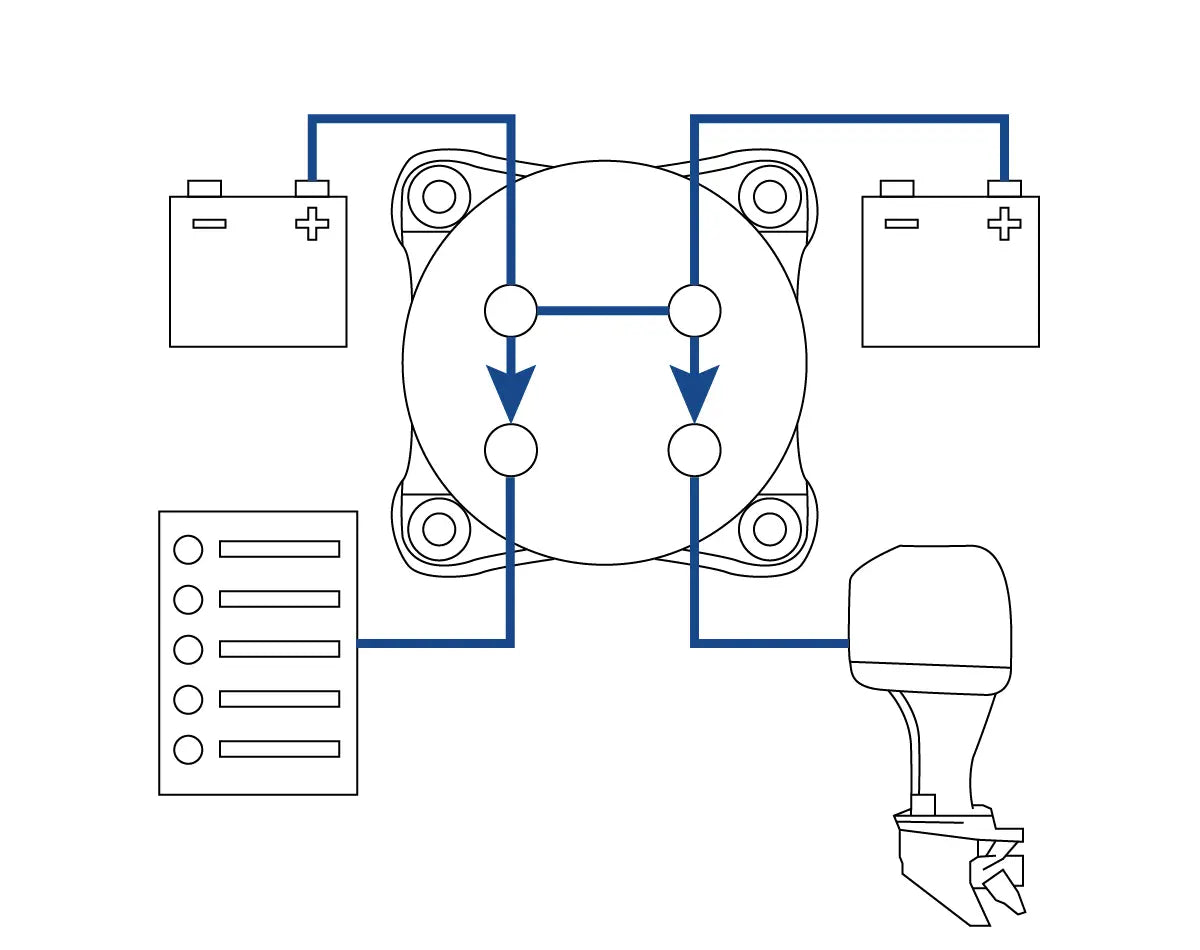

The Dual‑circuit battery isolator switch (model JPW6139) is a versatile and rugged power control solution for 12–32 V systems. Featuring a rotary dial with ON/OFF/COMBINE positions, it enables smooth isolation and merging of two separate battery banks—key for emergency starting or power-sharing needs.
Engineered for heavy-duty use, it supports 350 A continuous current with peaks up to 525 A and cranking ability of 700 A per circuit. The switch is ignition-protected, making it safe for petrol-powered boats and vehicles, with flexible mounting options for front, rear, or surface installation. Rugged terminals ensure secure connections even under harsh marine and off-grid conditions.
Key Features
- 3-position rotary dial: ON / OFF / COMBINE
- Suitable for 12–32 V DC systems
- Rated at 350 A continuous, 525 A intermittent, 700 A cranking per circuit
- Ignition-protected – safe for petrol-powered marine and RV applications
- Front, rear, or surface panel mounting options

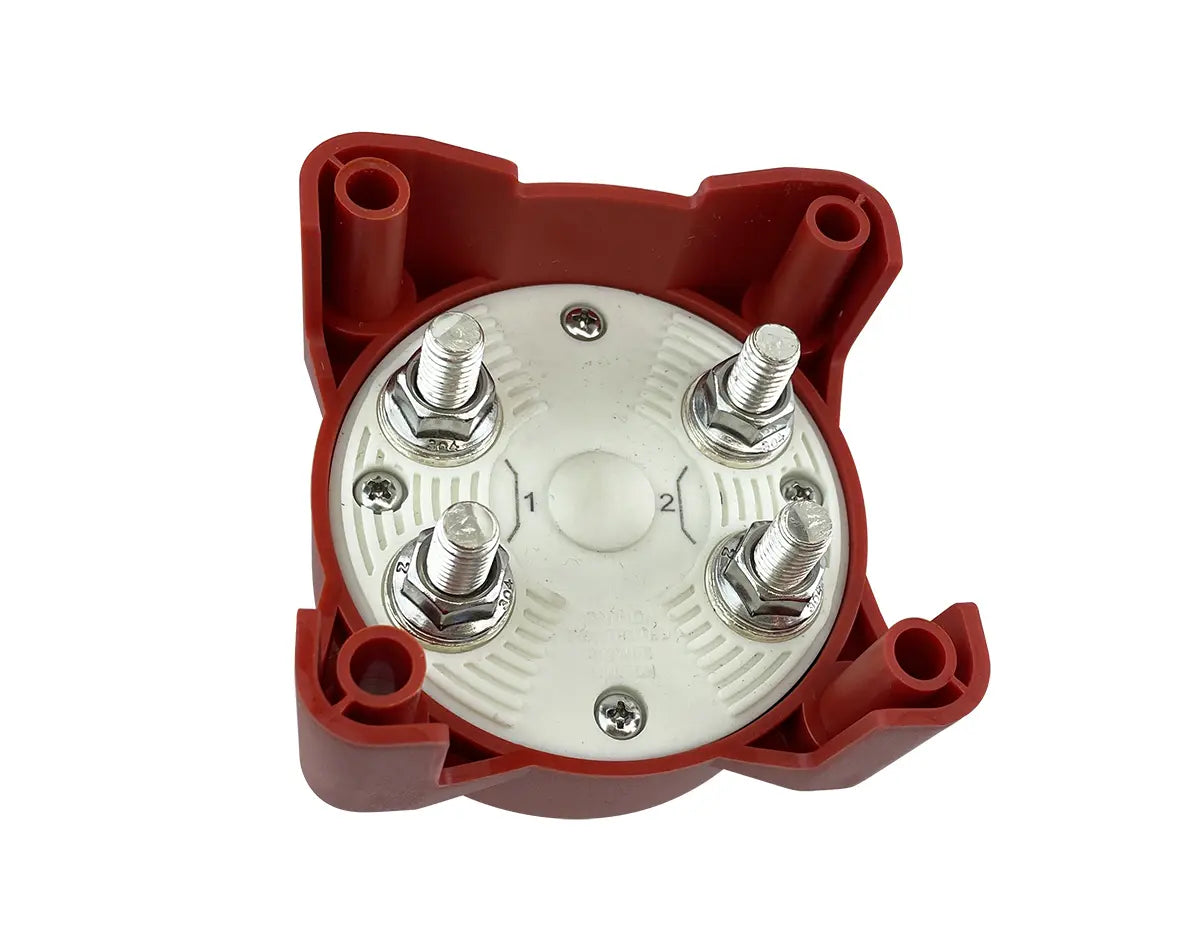

- Strong 3/8″–16 (M10) terminal studs for reliable connection
Specifications
Model | JPW6139 |
Voltage Rating | 12–32 V DC |
Continuous Current | 350 A |
Intermittent Current | 525 A |
Cranking Capacity | 700 A per circuit |
Switch Positions | ON / OFF / COMBINE |
Ignition Protected | Yes |
Terminal Stud Size | 3/8"-16 (M10) |
Mounting Options | Front, rear, or surface mount |
