JPW Marine - JPW6138

Dual‑Circuit Battery Isolator Switch - 2‑Position ON/OFF, 12-32 V

Dual‑Circuit Battery Isolator Switch - 2‑Position ON/OFF, 12-32 V

Regular price $75.15 AUD
Regular price Sale price $75.15 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

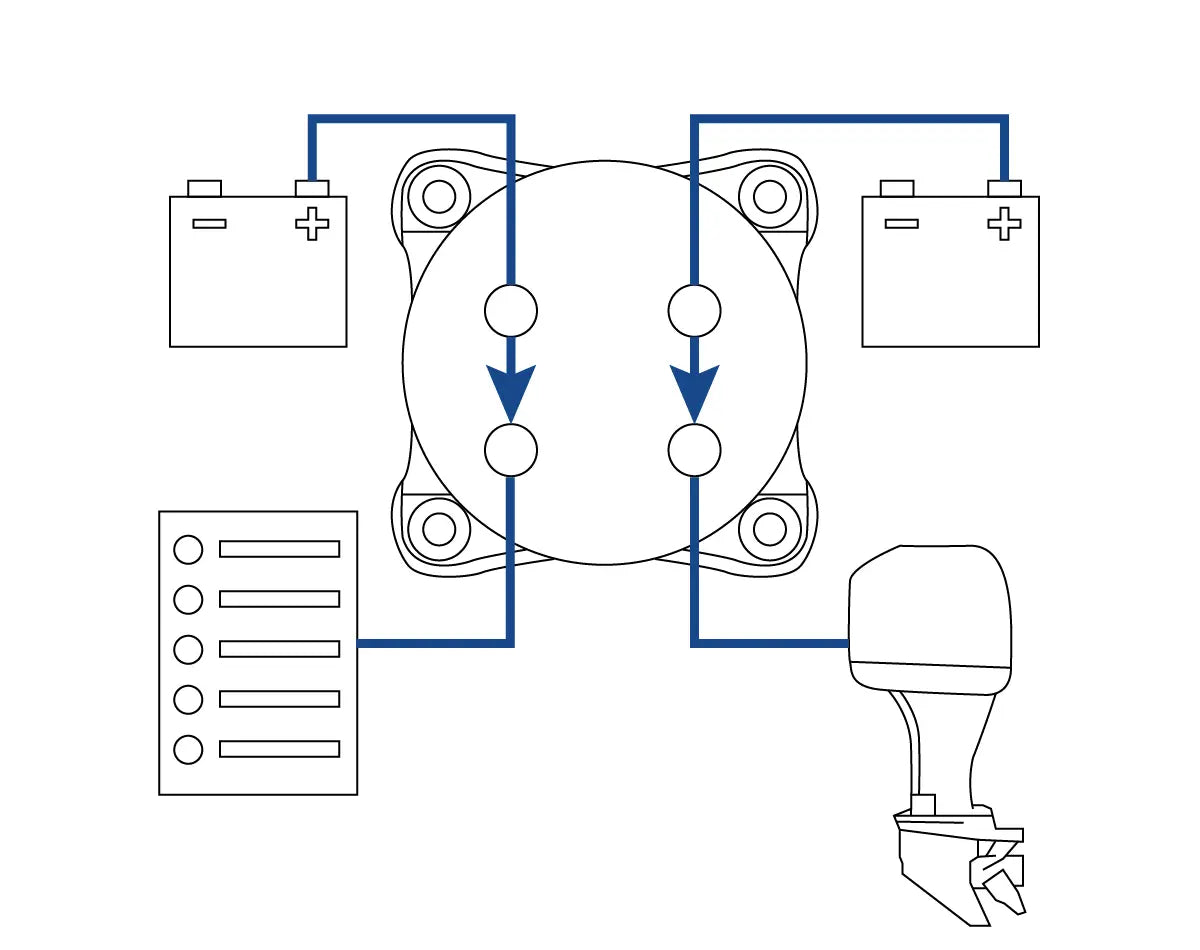

The dual‑circuit battery isolator switch (model JPW6138) provides reliable isolation for two separate battery banks in 12-32 V systems. Designed to meet the demands of marine, recreational vehicles, and off‑grid solar applications, this ignition‑protected switch enables simultaneous switching of dual battery systems - perfect when managing dual-start and auxiliary banks.

Built for durability, it delivers a continuous current rating of 350 A (with intermittent peaks up to 525 A and cranking capacity of 700 A per circuit), ensuring dependable power distribution and isolation. Panel-mountable from the front, rear, or surface, it offers versatile installation options without compromising accessibility or safety.

Key Features

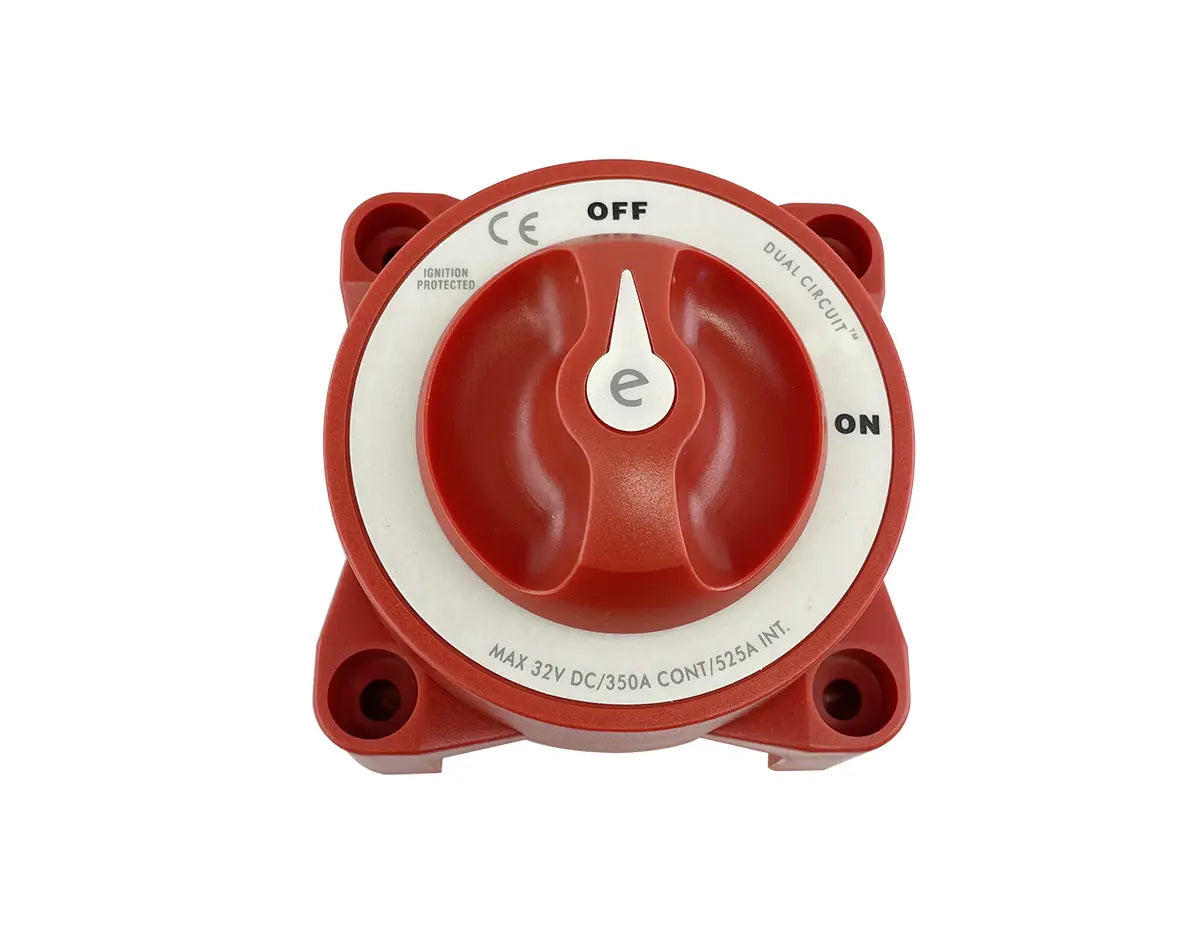

  • 2‑position rotary switch: ON / OFF to isolate both battery banks simultaneously
  • Wide voltage compatibility: Supports 12-32 V DC systems
  • High current capacity: 350 A continuous, 525 A intermittent, 700 A cranking per circuit
  • Ignition‑protected: Safe installation aboard petrol-powered boats and RVs
  • Panel mounting options: Front, rear, or surface based on installation needs

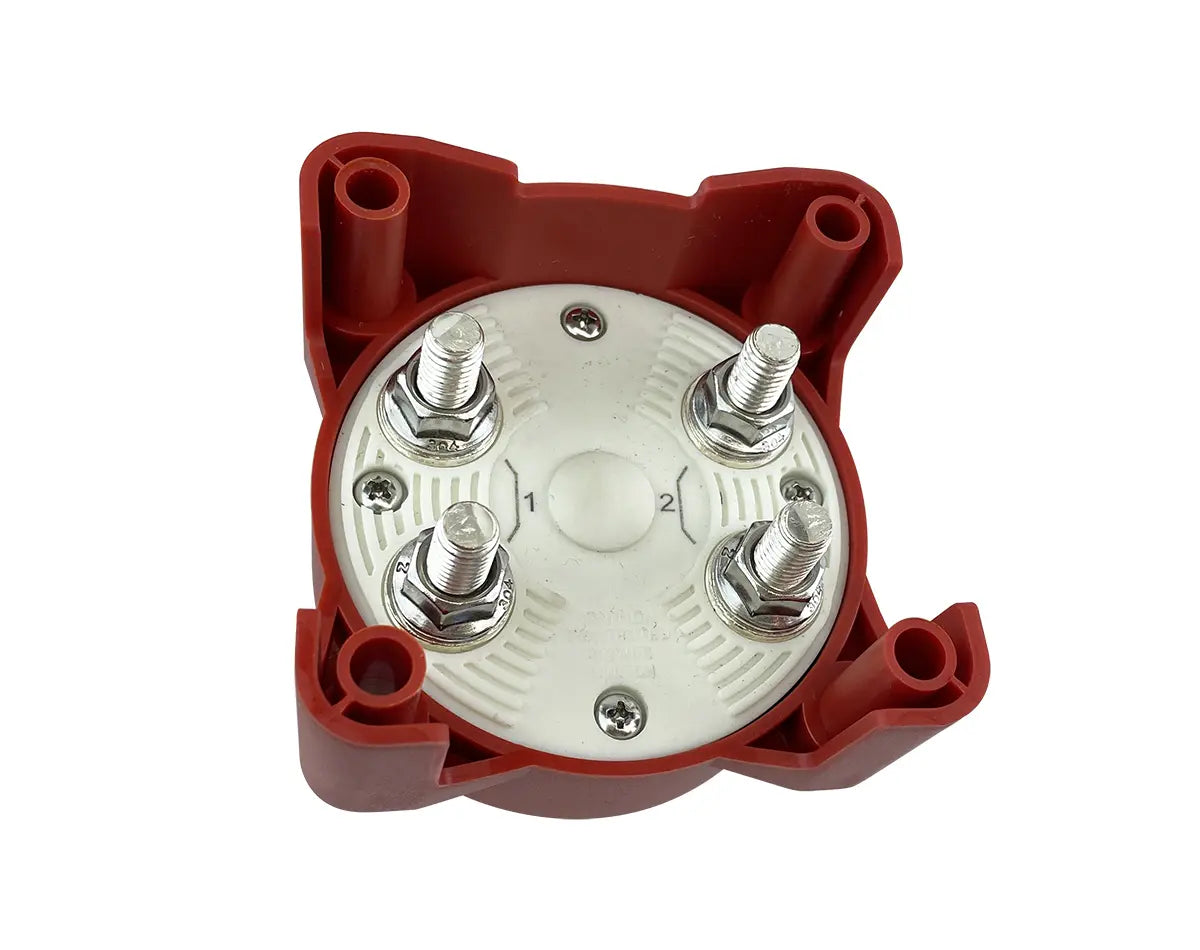

  • Sturdy 3/8"-16 M10 terminal studs: Secure battery and load connections

Specifications

Model JPW6138
Voltage Rating 12–32 V DC
Current Rating 350 A continuous
Intermittent Rating 525 A
Cranking Capacity 700 A per circuit
Stud Size 3/8"–16 (M10)
Switch Positions ON / OFF
Ignition Protection Yes
Mount Style Panel mount (front/rear/surface)
