Cole Hersee - 75910BX

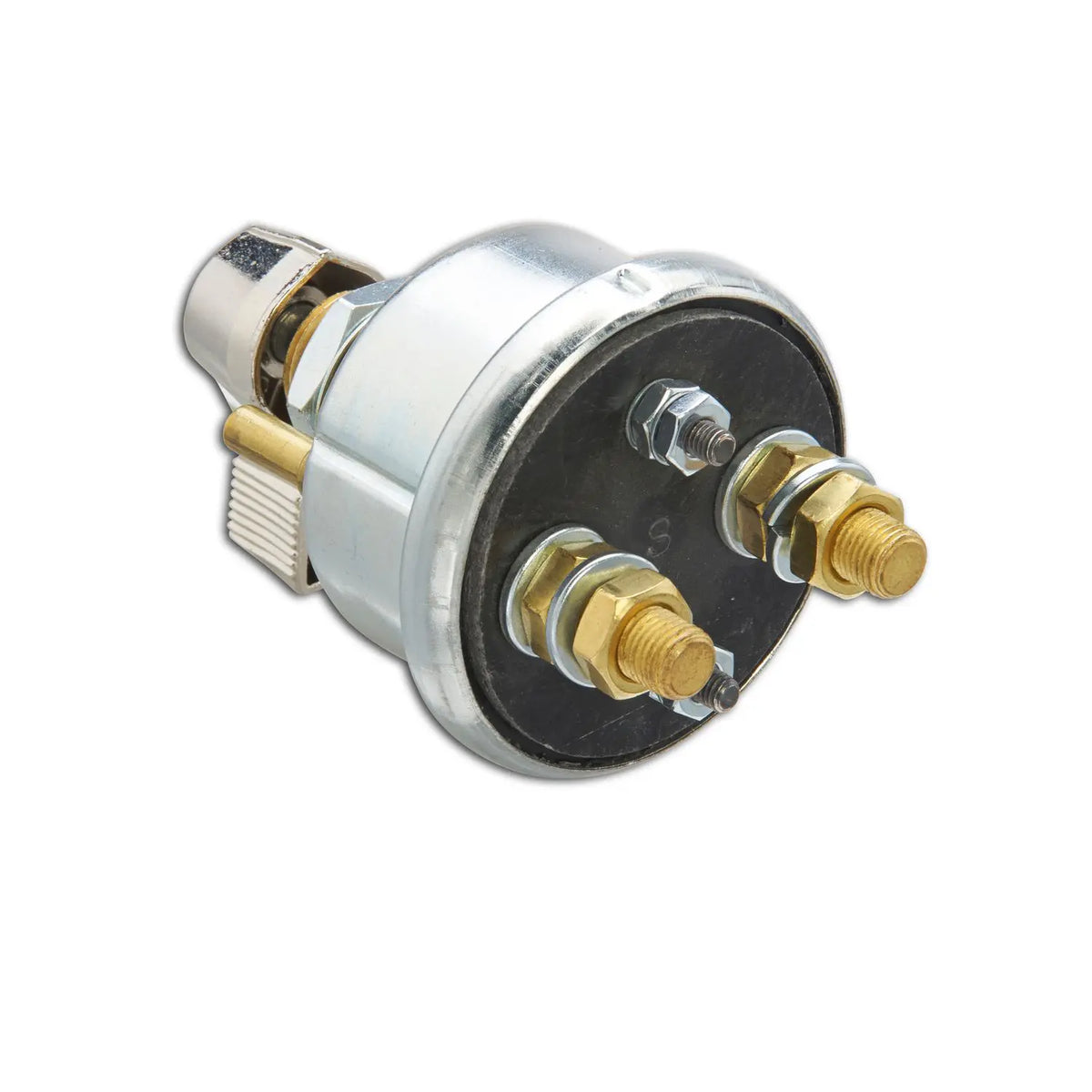

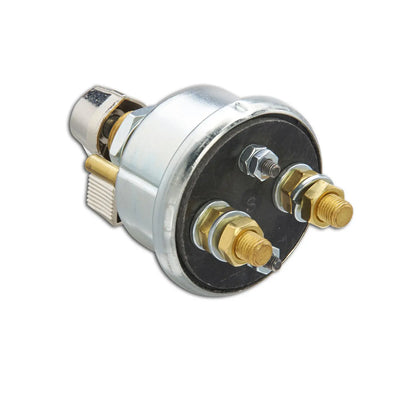

Cole Hersee 75910BX Battery Master Switch 6-36V 125A
Ideal for heavy-duty vehicles, mining equipment, plant and commercial electrical systems requiring simultaneous battery and alternator field isolation.
Regular price
$154.95 AUD
Regular price
Sale price
$154.95 AUD
Unit price
/
per
FREE shipping Australia-wide
- Genuine Cole Hersee heavy-duty battery master switch
- Controls the battery and alternator field circuits together
- Rated for 6–36V systems and 125A continuous current
- Weather-resistant O-ring sealed mounting shaft
- Expert support available before and after purchase
The Cole Hersee 75910 Battery Master Switch provides dependable manual isolation of a vehicle's battery and alternator or generator field circuit. Its DPST on/off configuration allows the main battery circuit and field circuit to be controlled together, supporting a complete electrical shutdown in compatible heavy-duty installations.
Designed for 6–36V DC systems, the switch is rated at 125A continuous on the main battery circuit and 20A continuous on the field terminals. Silver contacts, a heavy-duty plated-steel casing and a chrome-plated lever support reliable switching in commercial vehicle, mining, plant and equipment applications.

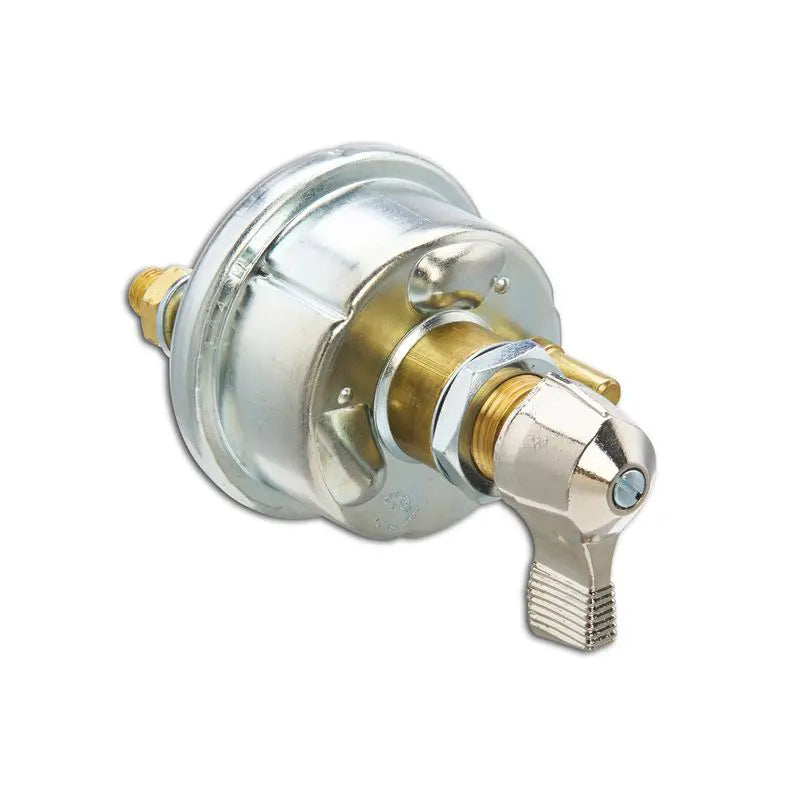

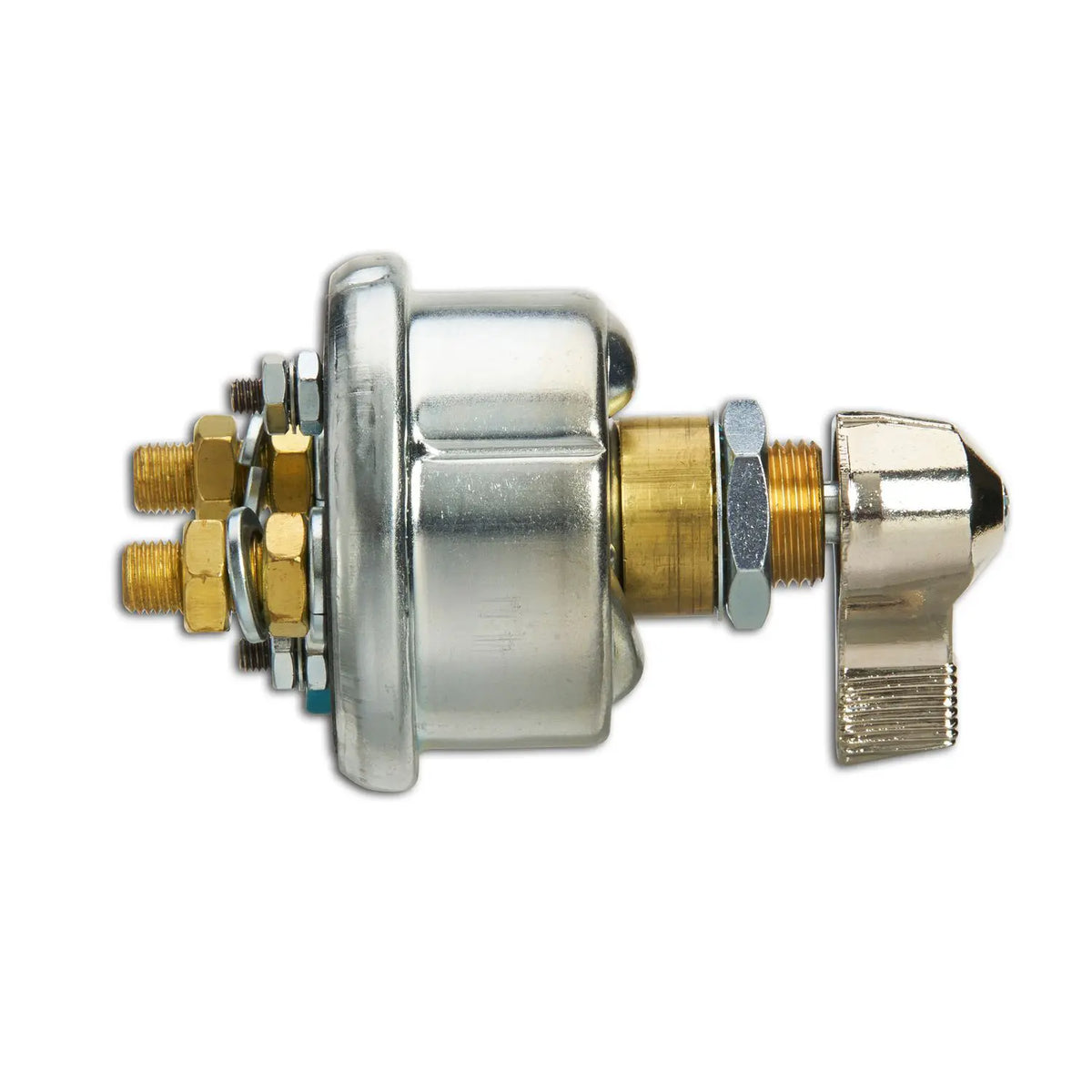

The brass indexing pin aligns the switch and helps prevent rotation after installation, while an O-ring seal provides weather resistance around the mounting shaft. Confirm the electrical ratings, cable requirements and mounting dimensions against the application before installation.
Key Features
- Disconnects the battery and alternator or generator field circuit
- Suitable for 6–36V DC electrical systems
- 125A continuous rating on the main battery circuit
- 20A continuous rating on the field terminals
- DPST normally open on/off configuration
- Silver contacts for dependable electrical switching
- Heavy-duty plated-steel casing with chrome-plated lever
- O-ring sealed mounting shaft for weather resistance
- Brass indexing pin helps align the switch and prevent rotation
Specifications
| Brand | Cole Hersee |
| Part Number | 75910 |
| Product Type | Battery master disconnect switch |
| Voltage Range | 6–36V DC |
| Main Circuit Rating | 125A continuous |
| Field Circuit Rating | 20A continuous |
| Configuration | DPST, normally open, on/off |
| Contacts | Silver |
| Housing | Plated steel |
| Actuator | Chrome-plated die-cast alloy lever |

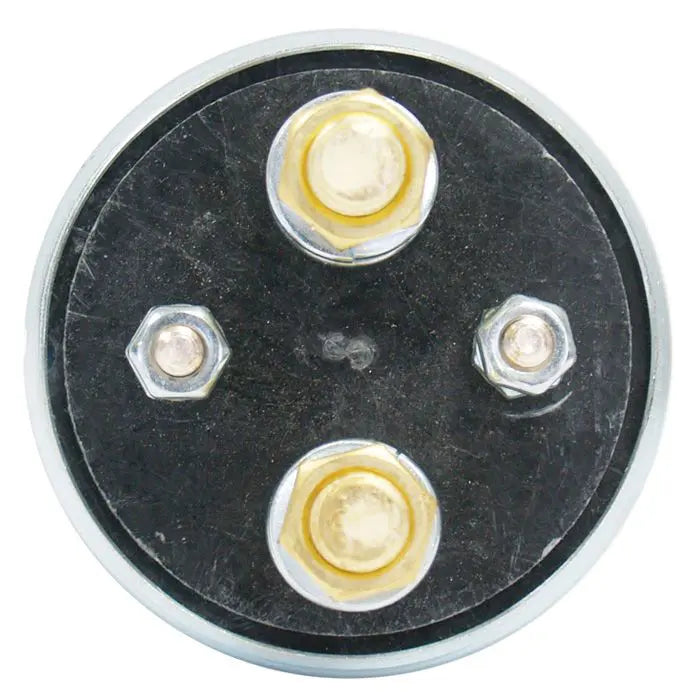

| Battery Terminals | 2 × 3/8-inch-24 studs |
| Field Terminals | 2 × #10-32 studs |
| Mounting Stem | 3/4-inch-24 thread, 13mm long |
| Maximum Panel Thickness | 6.5mm |
| Dimensions | 110mm high × 67mm diameter |
| Weather Resistance | O-ring sealed mounting shaft |
Share
What does the Cole Hersee 75910BX isolate?
What does the Cole Hersee 75910BX isolate?
It simultaneously disconnects the main battery circuit and the alternator or generator field circuit in a compatible electrical system.
What voltage systems can it be used with?
What voltage systems can it be used with?
The switch is designed for 6–36V DC electrical systems, including compatible 12V and 24V installations.
What is its continuous current rating?
What is its continuous current rating?
The main battery circuit is rated for 125A continuous current. The separate field circuit is rated for 20A continuous current.
Is the 75910BX waterproof?
Is the 75910BX waterproof?
The mounting shaft has an O-ring seal for weather resistance, but the product should not be described as completely waterproof or suitable for unrestricted submersion.
Does it have an removable key?
Does it have an removable key?
No. It uses a fixed chrome-plated lever. The switch has a DPST normally open configuration and a brass indexing pin to help prevent rotation after installation.
