• Calibre 6.8" Wired Apple CarPlay & Android Auto Receiver with Touchscreen
1 1

Autobacs - ELITE7W

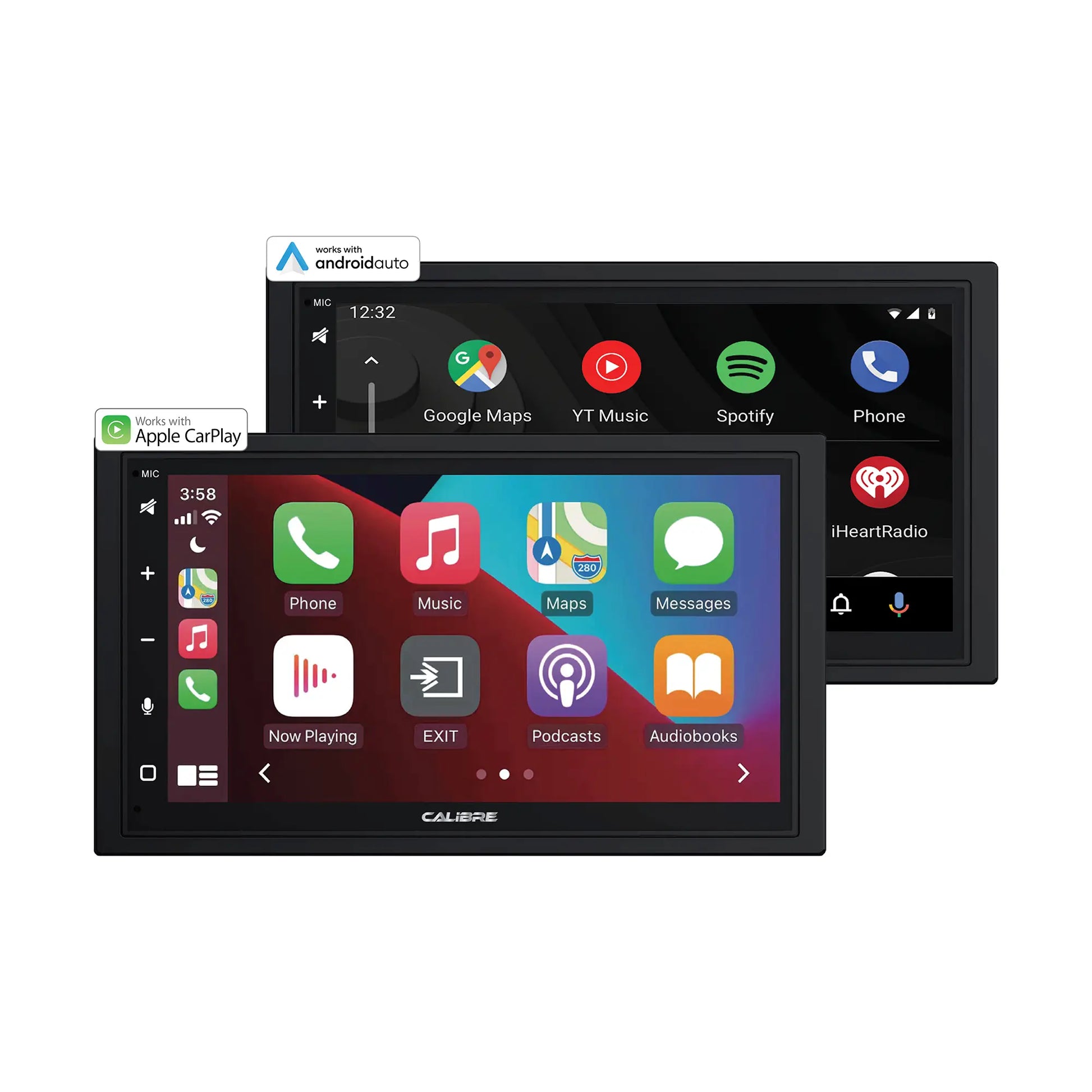

Calibre 6.8" Wired Apple CarPlay & Android Auto Receiver with Touchscreen

Ideal for drivers upgrading their factory stereo to Apple CarPlay or Android Auto, and those wanting better sound control, connectivity, and modern in-car features.

$599.00 AUD
$599.00 AUD
Sale
FREE shipping Australia-wide
  • Fast dispatch Australia-wide from Battery Force
  • Trusted automotive and 12V accessory supplier
  • Quality products backed by manufacturer warranty
  • Expert support available before and after purchase
  • Designed to suit Australian driving conditions

Upgrade your in-car experience with the Calibre 6.8" Wired CarPlay & Android Auto Receiver, delivering seamless smartphone integration, powerful audio performance, and a modern touchscreen interface. Designed for everyday driving and long road trips alike, this head unit gives you easy access to navigation, music, calls, and apps - all from a responsive high-resolution display.

With wired Apple CarPlay and Android Auto support, you can safely control your phone while keeping your focus on the road. The built-in WiFi, Bluetooth connectivity, and multiple media inputs ensure you stay connected and entertained wherever you go.

Packed with advanced audio tuning features including a 10-band EQ, time alignment, and high/low pass filters, this unit is built for drivers who want more control over their sound system. Whether you're upgrading your factory stereo or building a custom setup, the Calibre 6.8" receiver delivers performance, flexibility, and modern convenience in one clean package.

Key Features

  • 6.8" high-resolution capacitive touchscreen display
  • Wired Apple CarPlay and Android Auto integration
  • Built-in Bluetooth for hands-free calls and audio streaming
  • Dual USB inputs for media and smartphone connectivity
  • Advanced audio tuning with 10-band EQ and time alignment
  • Front and rear camera inputs for added safety
  • Steering wheel control compatibility (programmable)
  • High power output with multiple pre-outs for system expansion
  • Wide media format compatibility (audio, video, image)
  • ISO 2-DIN universal fit

Specifications

General

Display 6.8" Capacitive Touchscreen
Resolution 1024 x 600
Operating System Linux
Mount Type ISO 2-DIN
Steering Wheel Control Programmable
Speaker Impedance 2–8 Ohm
Voltage 10.8–16V DC
Operating Temperature -20°C to +70°C
Face Panel Size 170.5W x 97H mm
Overall Dimensions 178W x 100 mm

Navigation

Navigation Via Apple CarPlay & Android Auto

Multimedia

WiFi Built-in
USB Ports 2 x Rear USB (Media + CarPlay/Android Auto)
A/V Input 1 x Rear RCA
Camera Inputs 2 (Front & Rear, PAL/NTSC)
Audio Formats FLAC, MP3, WMA
Video Formats AVI, FLV, MKV, MOV, WMV
Image Formats BMP, JPEG, PNG

Tuner

Radio Type AM/FM PLL Synthesized
RDS Yes
Frequency Range FM 87.5–108MHz / AM 522–1710KHz
Presets 18 FM / 12 AM

Audio

Max Power 4 x 72W @ 2Ω / 4 x 48W @ 4Ω
RMS Power 4 x 38W @ 2Ω / 4 x 22W @ 4Ω
EQ 10 Band
Time Alignment Front, Rear, Sub
High Pass Filter OFF / 50 / 80 / 120 / 160Hz
Low Pass Filter OFF / 20 / 30 / 40 / 50 / 60 / 80Hz
Pre-Outs 4 x RCA (4V)
Sub Outputs 2 x RCA (4V)
Internal Amplifier On/Off
THD Limiter Selectable (Max 2%)

Bluetooth

Audio Streaming A2DP
Hands-Free Calling Yes
Dual Phone Connection Yes (2 devices)
Phonebook Access Yes
Call History Yes
Microphone External included

Does this unit support Apple CarPlay and Android Auto?

Yes, it supports both Apple CarPlay and Android Auto via a wired USB connection.

Can I connect a reverse camera to this unit?

Yes, it has dual camera inputs, allowing you to connect both a rear and front camera.

Will this work with my steering wheel controls?

Yes, it supports programmable steering wheel controls (vehicle compatibility may vary).

Can I connect two phones via Bluetooth?

Yes, it allows simultaneous connection of two phones for hands-free use.

Is this a standard double DIN size?

Yes, it uses an ISO 2-DIN mounting size, making it compatible with most vehicles that support double DIN head units.
