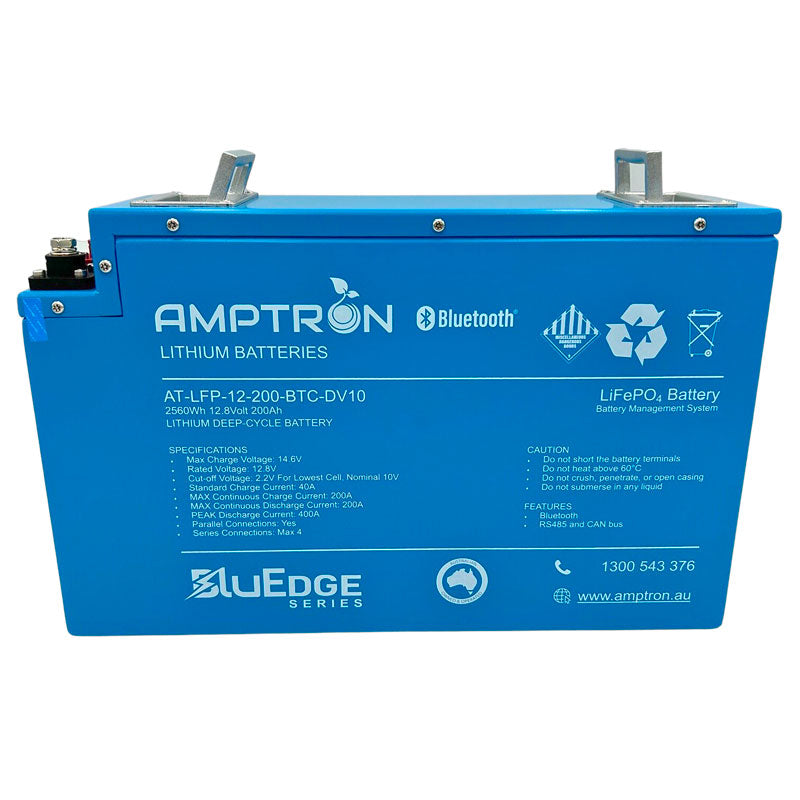

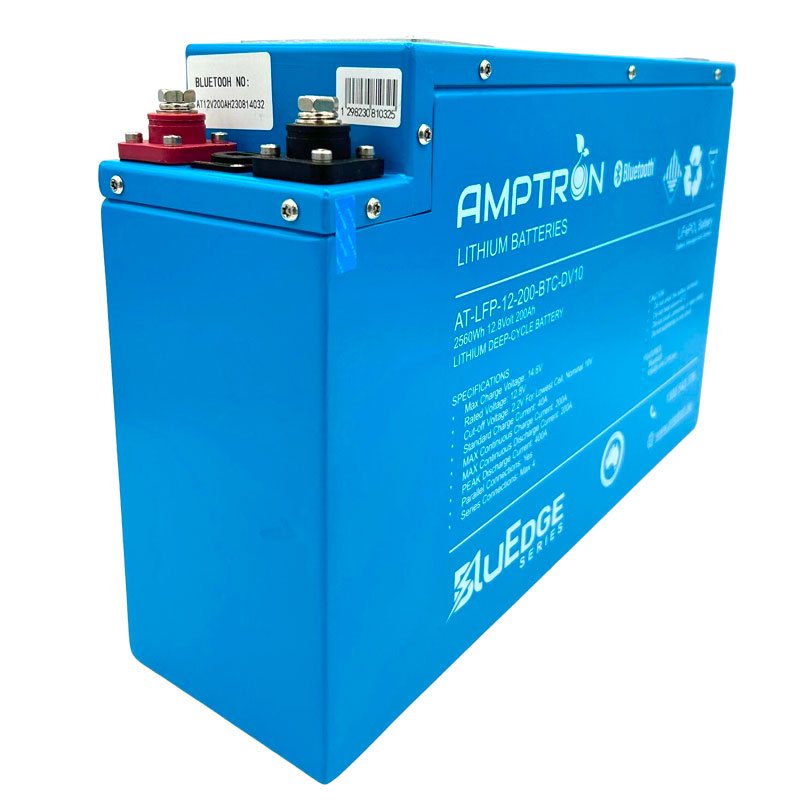

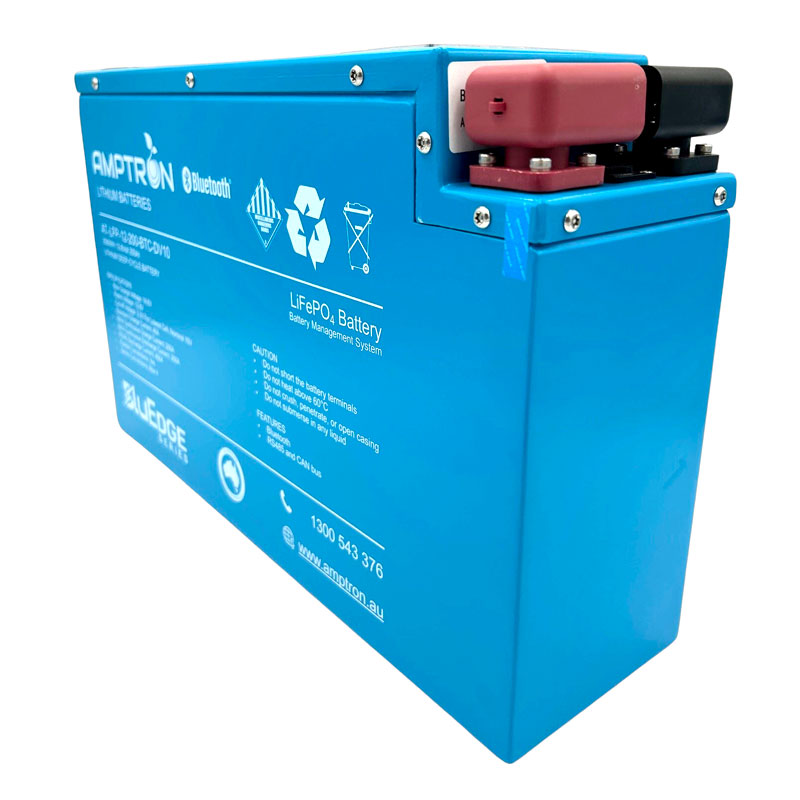

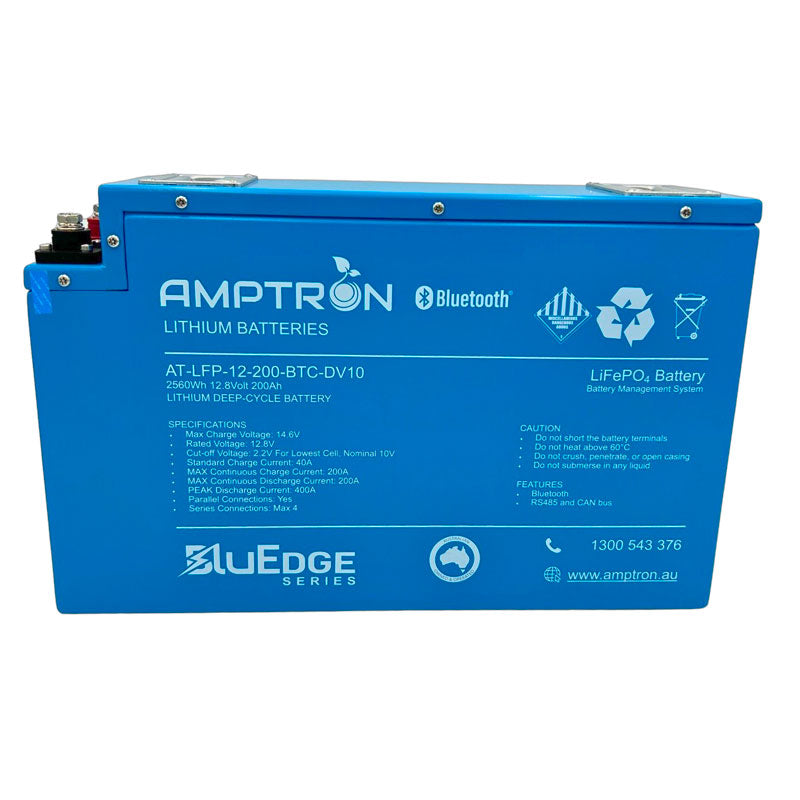

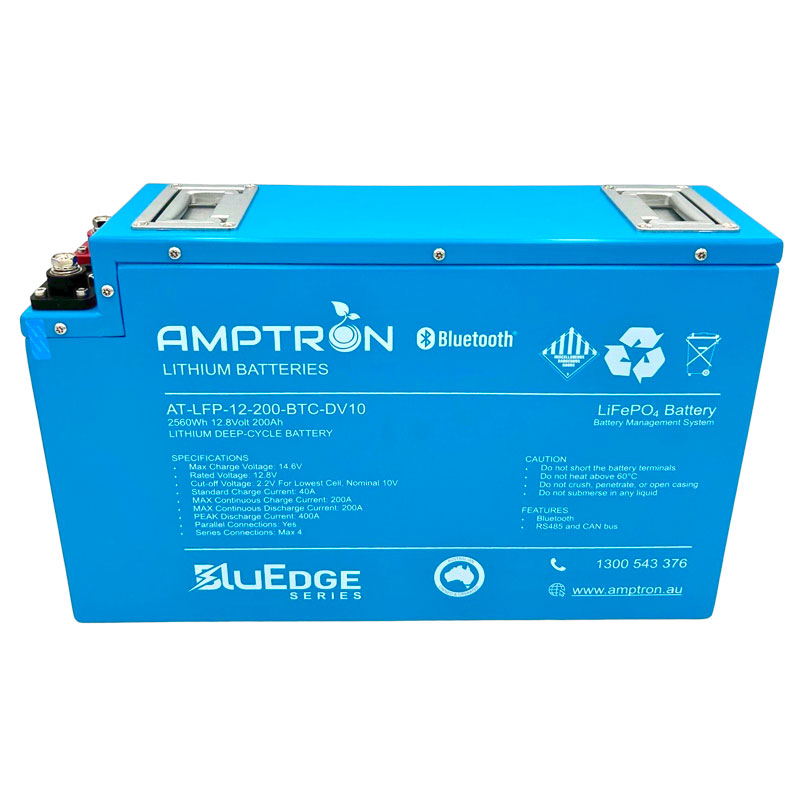

Amptron - AT-LFP-12-200-BTC-DV10
The Amptron® BluEdge 12V 200Ah Lithium LiFePO4 Batteries are part of Amptron's new premium range of smart and exceptionally robust batteries. The batteries contain a Battery Management System (BMS) with integrated communications including Bluetooth. The BluEdge range has an exceptionally long cycle life backed by a 5-year warranty. The maximum continuous discharge current is 200A with a peak discharge current of 400A for 3 seconds.
*** Please note, this model does not support parallel communication.
Specifications
Model
AT-LFP-12-200-BTC-DV10
Size
L-430mm x W-120mm x H-270mm
Weight
23kg

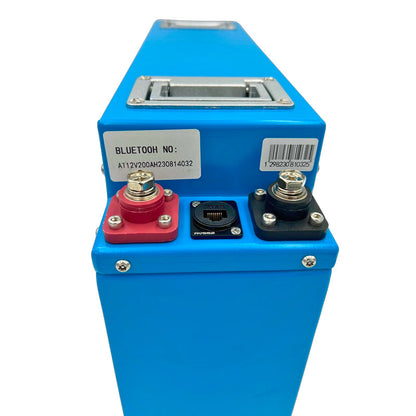

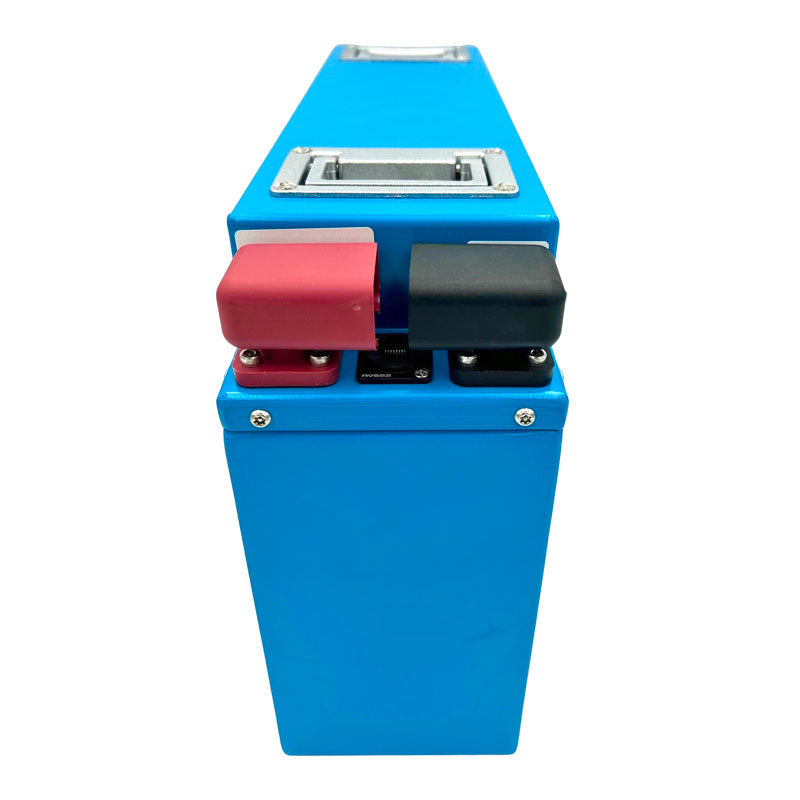

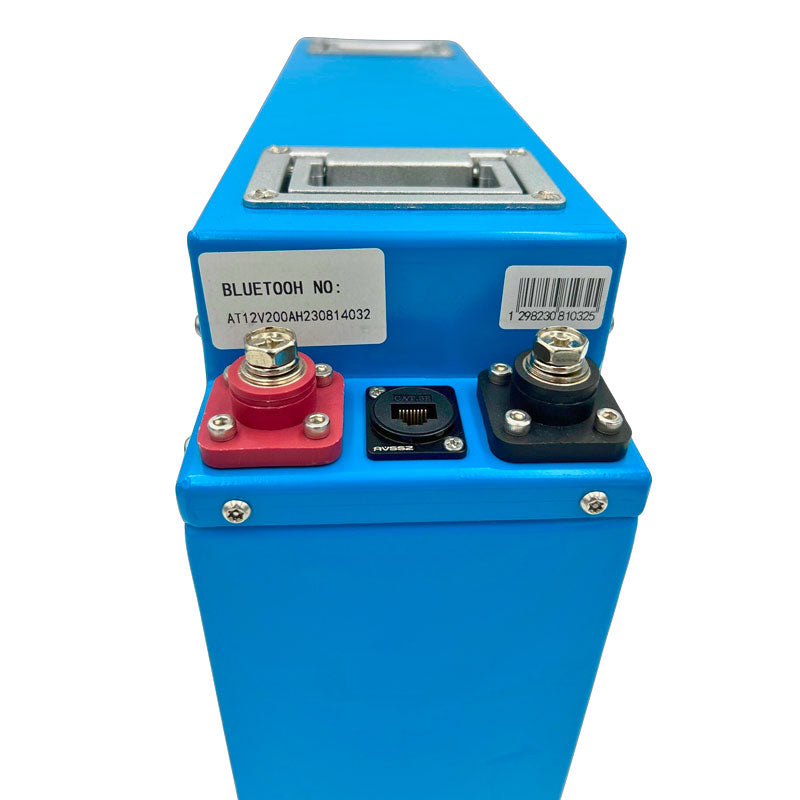

Connection Terminals
M8
Connection Terminal Torque Limit
6Nm
Outer Casing Material
Aluminum
Casing material for single cell
Aluminium
IP Rating
IP50
Chemistry
Lithium iron Phosphate (LiFePO4)
Cell type
Prismatic
Rated Capacity
200Ah/2560WH (at 0.2C)
Cell packs in series
Supported (4)
Battery packs in parallel
Supported
Battery cycle life
6000 times (0.2C standard charge & discharge)
Rated voltage / nominal voltage
12.8V
Operating voltage range
10V-14.6V
Shipping voltage
11-14V
Recommended charge voltage
14.4V
Cut-off voltage
10V / When lowest cell reaches 2.5V
Depth of discharge (DoD)
100% Recommended DoD 80%
Standard
(Recommended charge current)
40A
Charging time at recommended charge current
4-5 Hours
Maximum charge current
200A
Max continuous discharge current
200A
Peak discharge current (3 seconds)
400A
Internal resistance
≤ 12mΩ
Operating power consumption
≤ 120mA
Operating temperature
Charge: -0°C～55°C (Ambient)
Discharge: -20°C～60°C (Ambient)
Storage temperature range
10°C～35°C
Recommended storage temperature
20°C+-5°C
Storage humidity range
10%-90%
Recommended storage duration
Charge to 13.3V or 40-60% SOC
every 6 months
Cell over charge protection
3.75V±0.05V
Cell over discharge protection
2.2V±0.1V
Charging over current protection
220A±5A (30s)
Discharging over current protection
220A±5A (30s)
Short circuit protection
2400A min 2000A max 2900A
High temperature discharge / charge protection 75°C±5°C
Low temperature discharge / charge protection -15°C±5°C
