Amptron - AT-LFP-24-200-BTC-BV10

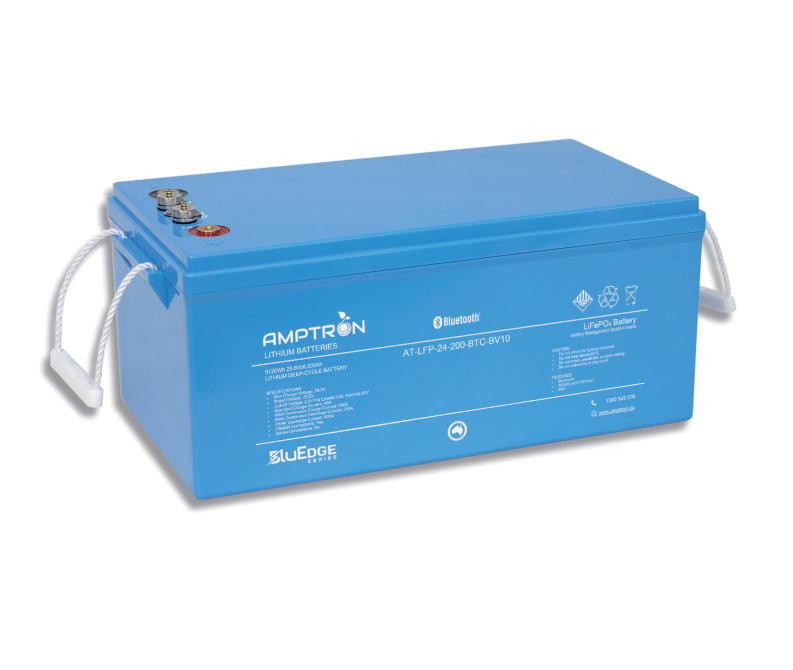

BluEdge 24V 200Ah / 200A Continuous Discharge LiFePO4 Battery with Bluetooth + RS485 + CAN bus
BluEdge 24V 200Ah / 200A Continuous Discharge LiFePO4 Battery with Bluetooth + RS485 + CAN bus
Contact us for pricing or to purchase.
The Amptron® BluEdge 24V 200Ah Lithium LiFePO4 Batteries are part of Amptron's new premium range of smart and exceptionally robust batteries. The batteries contain a Battery Management System (BMS) with integrated communications including Bluetooth. The BluEdge range has an exceptionally long cycle life backed by a 5-year warranty. The maximum continuous discharge current is 200A with a peak discharge current of 400A for 3 seconds.
Specifications
|
Model
|
AT-LFP-24-200-BTC-BV10
|
|
Size
|
L-520mm x W-267mm x H-220mm |
|
Weight
|
40.5kg
|
|
Connection Terminals
|
M8
|
|
Connection Terminal Torque Limit
|
6Nm |
|
Outer Casing Material
|
ABS
|
|
Casing material for single cell
|
Nickel plated steel
|
|
IP Rating
|
IP67
|
|
Chemistry
|
Lithium iron Phosphate (LiFePO4) |
|
Cell Type
|
Prismatic |
|
Rated Capacity
|
200Ah / 5120WH (at 0.2C)
|
|
Battery packs in series
|
Not Supported
|
|
Battery packs in parallel
|
Supported |
|
Battery cycle life
|
5000 times (0.2C standard charge & discharge)
|
|
Rated voltage / nominal voltage
|
25.6V |
|
Operating voltage range
|
00V-29.2V
|
|
Shipping voltage
|
24-29V |
| Recommended charge voltage |
28.8V
|
|
Max charge voltage
|
29.2V (3.65V per cell)
|
|
Cut-off voltage
|
20V / When lowest cell reaches 2.5V
|
|
Depth of discharge (DoD)
|
100% Recommended DoD 80%
|
|
Standard
(Recommended charge current)
|
40A
|
|
Charging time at recommended charge current
|
4-5 Hours
|
|
Maximum charge current
|
200A
|
|
Max continuous discharge current
|
200A
|
|
Peak discharge current (2 seconds)
|
400A
|
|
Internal resistance
|
≤ 20mΩ
|
|
Operating power consumption
|
≤ 25mA
|
|
Operating temperature
|
Charge: -0°C～55°C (Ambient)
Discharge: -20°C～60°C (Ambient)
|
|
Storage temperature range
|
Within 2 months -20°C～40°C
Within 6 months -10°C～35°C
|
|
Recommended storage temperature
|
20°C±5°C
|
|
Storage humidity range
|
10%-90%
|
|
Recommended storage duration
|
Charge to 26.6V or 40-60% SOC
every 6 months
|
|
Cell over charge protection
|
3.65V±0.02V
|
|
Cell over discharge protection
|
2.5V±0.02V
|
|
Charging over current protection
|
220A±5A (2s)
|
|
Discharging over current protection
|
1st 215A (3.5s)
2nd 400A (2.2s)
|
|
Short circuit protection
|
500A (400us)
|
|
High temp discharge / charge protection
|
65°C±3°C
|
|
Low temp discharge / charge protection
|
-20°C±3°C / 0°C±3°C
|
