Amptron - AT-LFP-12-400-BTC-BV10

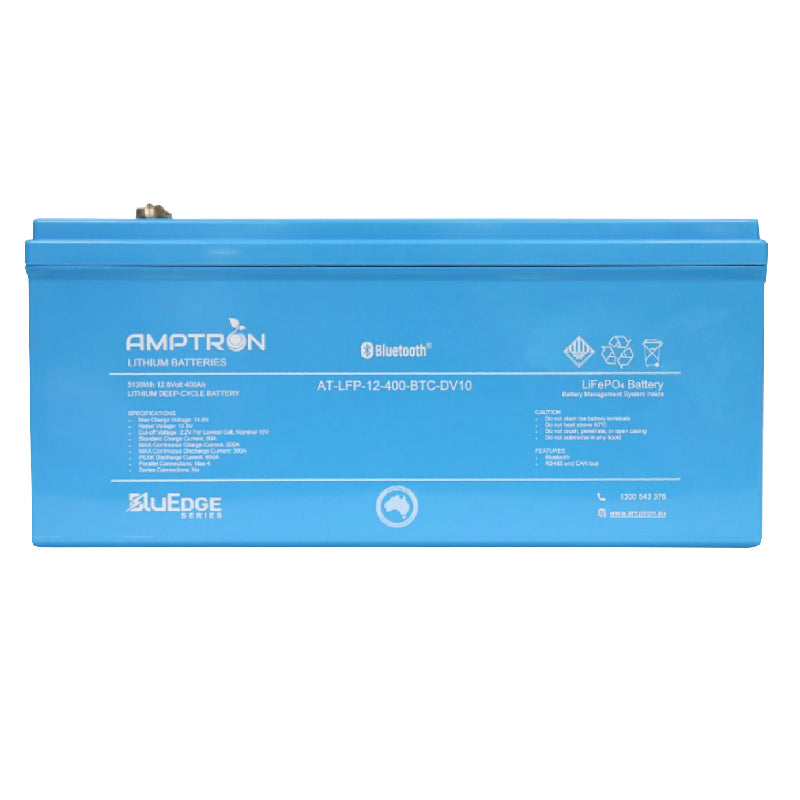

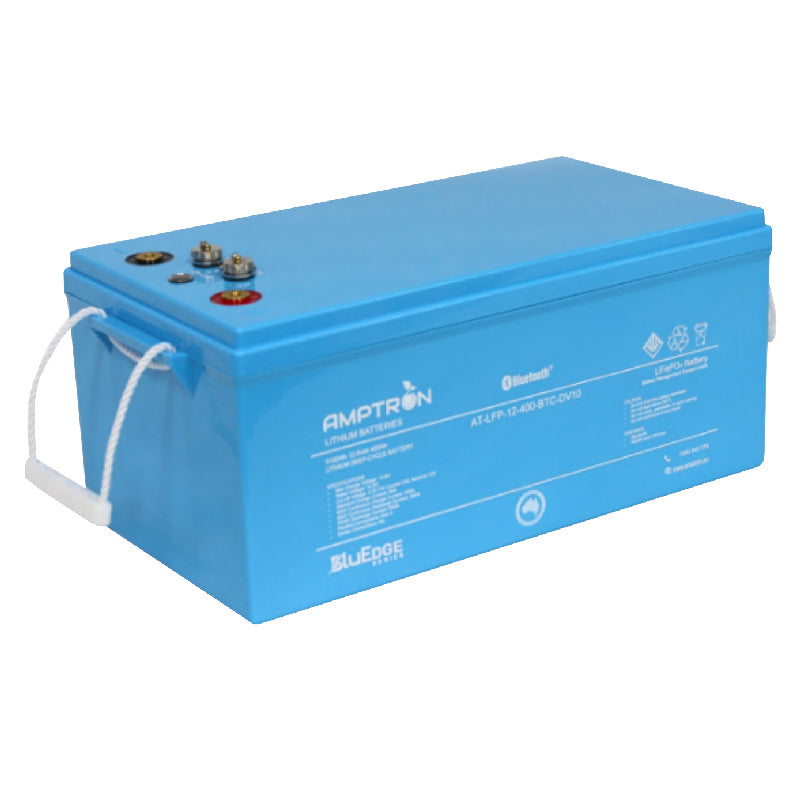

BluEdge 12V 400Ah / 200A Continuous Discharge LiFePO4 Battery with Bluetooth + RS485 + CAN bus

BluEdge 12V 400Ah / 200A Continuous Discharge LiFePO4 Battery with Bluetooth + RS485 + CAN bus

Contact us for pricing or to purchase.

The Amptron® BluEdge 12V 400Ah / 200A Continuous Discharge LiFePO4 Batteries with Bluetooth are part of Amptron's new premium range of smart and exceptionally robust batteries.

The batteries contain a Battery Management System (BMS) with integrated communications including Bluetooth. The BluEdge range has an exceptionally long cycle life backed by a 5-year warranty. The maximum continuous discharge current is 200A with a peak discharge current of 400A for 3 seconds.

Specifications

Model
AT-LFP-12-400-BTC-BV10
Size
 L-520mm x W-267mm x H-220mm
Weight
40.5kg
Connection Terminals
M8
Connection Terminal Torque Limit
 6Nm
Outer Casing Material
ABS
Casing material for single cell
Nickel plated steel
IP Rating
IP66
Chemistry
 Lithium iron Phosphate (LiFePO4)
Cell Type
 Prismatic
Rated Capacity
400Ah/5120WH (at 0.2C)
Cell packs in series
Supported (4)
Battery packs in parallel
Supported
Battery cycle life
6000 times (0.2C standard charge & discharge)
Rated voltage / nominal voltage
 12.8V
Operating voltage range
10V-14.6V
Shipping voltage
 11-14V
Recommended charge voltage
14.4V
Cut-off voltage
10V / When lowest cell reaches 2.5V
Depth of discharge (DoD)
100% Recommended DoD 80%
Standard
(Recommended charge current)
80A
Charging time at recommended charge current
4-5 Hours
Maximum charge current
200A
Max continuous discharge current
200A
Peak discharge current (3 seconds)
400A
Internal resistance
≤ 20mΩ
Operating power consumption
≤ 50mA
Operating temperature
Charge: -0°C～55°C (Ambient)
Discharge: -20°C～60°C (Ambient)
Storage temperature range
Within 2 months -20°C～40°C
Within 6 months -10°C～35°C
Recommended storage temperature
20°C+-5°C
Storage humidity range
10%-90%
Recommended storage duration
Charge to 13.3V or 40-60% SOC
every 6 months
Cell over charge protection
3.65V±0.05V
Cell over discharge protection
2.5V±0.1V
Charging over current protection
210A (30s)
Discharging over current protection
1st 210A (30s)
2nd 420A (2s)
Short circuit protection
1000A (560us)
