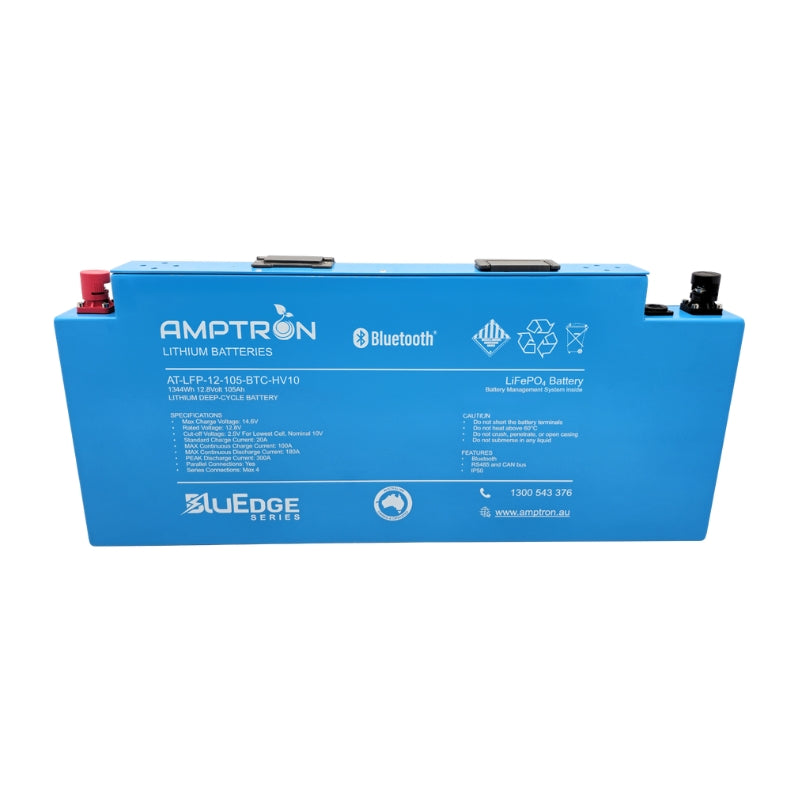

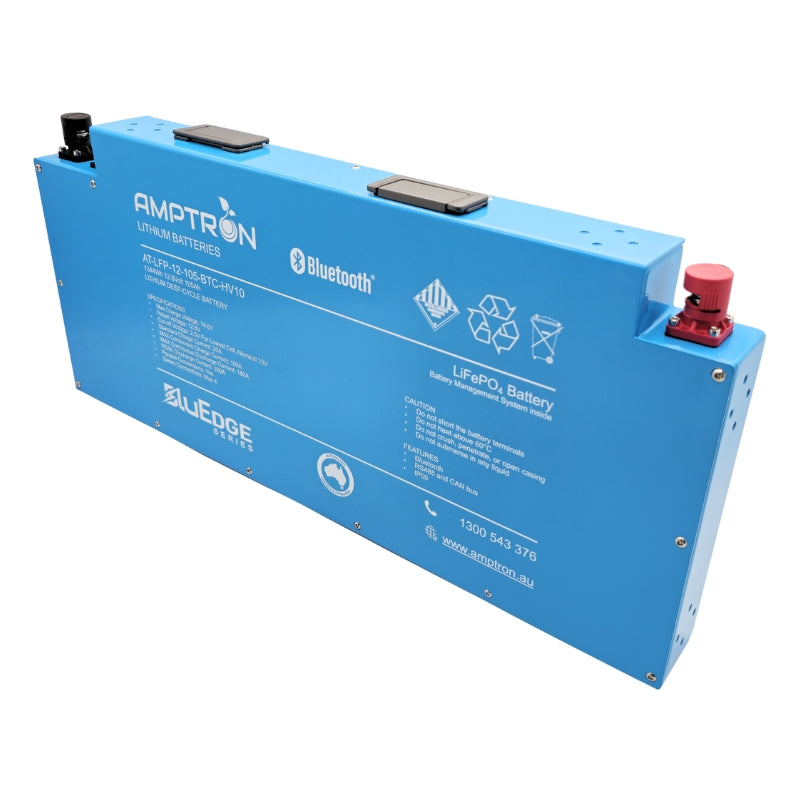

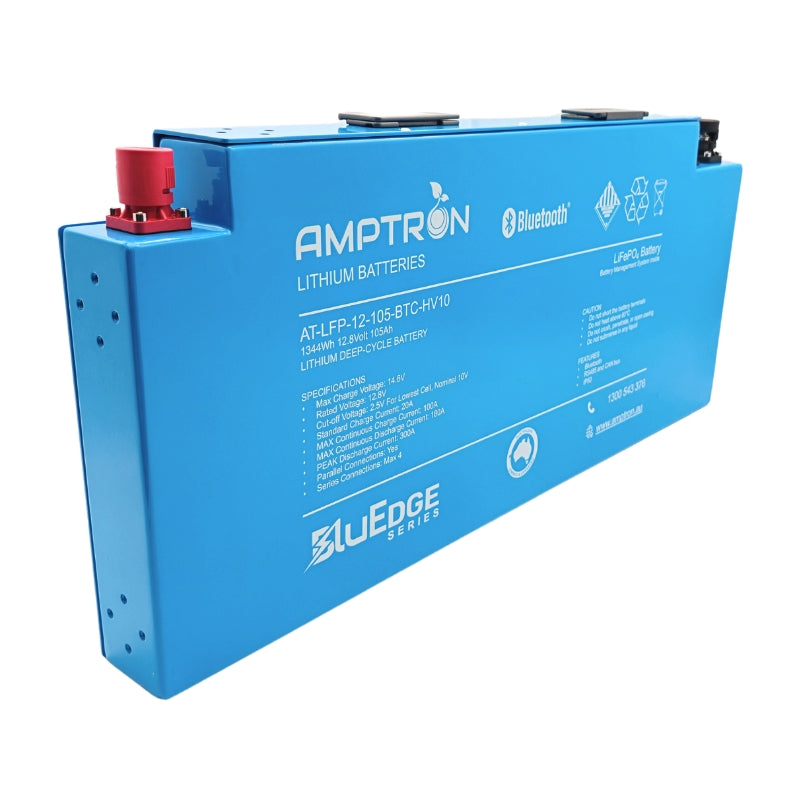

AMPTRON® BluEdge 12V 105Ah Lithium LiFePO4 Blade Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 180A and peak discharge current 300A for 3 seconds. BluEdge batteries come with communications built in (CAN/RS485/Bluetooth). This battery is particularly suited to narrow / space constrained environments.
Specifications
Model
AT-LFP-12-105-BTC-HV10
Chemistry
Lithium Iron Phosphate (LiFePO4)
Battery dimensions
L-635mm x W-60mm x H-285mm
Weight
14kg
Cell type
3.2V 105Ah
Battery module4
4pcs 3.2V 50Ah cells, 4 in series
Casing material for single cell
Aluminum
Standard capacity（0.2C5A）
105 Ah / 1344Wh
Cycle life
>3500 cycles at 100% Depth of Discharge (DoD)
Rated voltage
12.8V
Charge voltage
14.4 – 14.6V
Cut-off volate
11.5 to 10V
Depth of discharge (DoD)
100%
Standard charge current
20A
Charging time
Approximately 5 hours
Optimum charge current range
20A (0.2C) to 50A (0.5C)
Rapid charging
Max. charge current 100A (1C3A)
Max continuous discharge current
180A
Peak discharge current
300A
Discharge performance in normal temperature
20A (0.2C3A) ≥ 100% 1C3A ≥90％
Operating temperatures
Standard 0℃～45℃ Discharge -20℃～65℃ Storage -20℃～45℃
Impedance (Max, at 1000Hz.)
≤ 10mΩ
Storage performance
Capacity can be kept ≥ 80% in storage for 12months
