• Axis Rearview Mirror Camera Kit with Integrated Display & Reverse Camera
1 1

Axis - JS043K

Axis Rearview Mirror Camera Kit with Integrated Display & Reverse Camera

Ideal for drivers wanting a clean, factory-style reversing camera setup without adding extra screens to the dashboard.

$295.00 AUD
$295.00 AUD
Sale
FREE shipping Australia-wide
  • Fast dispatch Australia-wide from Battery Force
  • Trusted automotive and 12V accessory supplier
  • Quality products backed by manufacturer warranty
  • Expert support available before and after purchase
  • Designed to suit Australian driving conditions

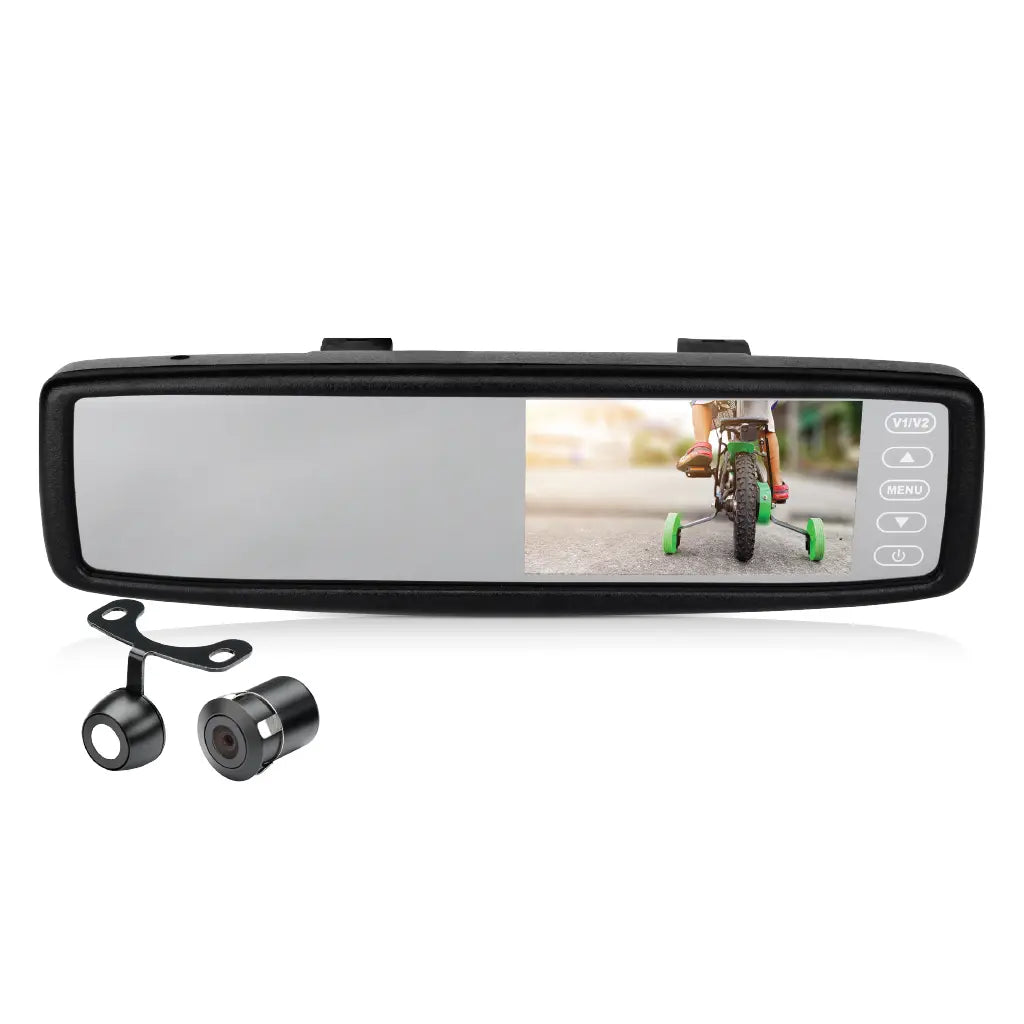

Upgrade your vehicle with the Axis Rearview Mirror Camera Kit, combining a rearview mirror display and reversing camera into one clean, integrated solution. Designed to replace or mount over your existing mirror, this system provides a clear live rear view and automatic reverse camera display when backing up.

Perfect for improving visibility and safety, the mirror-mounted screen eliminates the need for a separate monitor, keeping your dash clutter-free while still delivering a sharp and reliable image. The included rear camera provides a wide viewing angle to help reduce blind spots and make parking, reversing, and towing easier.

Built for everyday driving and Australian conditions, this kit is an ideal upgrade for drivers wanting a discreet, all-in-one reversing camera solution with seamless functionality.

Key Features

  • Rearview mirror with integrated display for a clean install
  • Automatically switches to reverse camera when reversing
  • Includes rear camera for full reversing visibility
  • Wide-angle rear camera reduces blind spots
  • Maintains normal mirror function when display is off
  • Discreet design eliminates need for separate screen
  • Suitable for cars, utes, SUVs, and 4WDs
  • Simple installation with universal fit

Specifications

Monitor Panel 4.3" TFT LCD
Resolution 480 x 272
Brightness 350 cd/m²
Aspect Ratio 16:9 Widescreen
Video System PAL / NTSC Auto Switching
Controls Touch button
Mirror Type Anti-glare multi-layer white mirror glass
Video Inputs 2 (Camera + AV/Multimedia)
Mount Type Clips over factory mirror
Reverse Trigger 12V DC (connect to reverse lamp)
Operating Temperature -10°C to +60°C
Power Supply 12V DC (10–15V)
Power Consumption 1.5W (0.4W standby)
Camera Sensor 1/4" CMOS (P1089)
Camera Viewing Angle 130° (Diagonal)
Camera Video System PAL (Mirror image)
Minimum Light Level 0.5 Lux
Ingress Protection IP66
Camera Mounting Options Butterfly (number plate/boot) or flush mount
Connection Type RCA
Cable Length 8 metres
Included Accessories Wiring harness, RCA extension, 18.5mm hole cutter, dual mounting heads

Does this replace my existing rearview mirror?

It is designed to mount over or integrate with your existing rearview mirror, providing a display without removing factory functionality.

Does the screen stay on all the time?

No, the display activates automatically when you engage reverse and functions as a normal mirror when not in use.

Is the rear camera included in the kit?

Yes, the kit includes a rear camera for reversing visibility.

Will this work with any vehicle?

It is designed as a universal fit and is compatible with most cars, utes, SUVs, and 4WDs.

Is professional installation recommended?

Yes, professional installation is recommended to ensure proper wiring and integration with your vehicle’s reverse signal.
