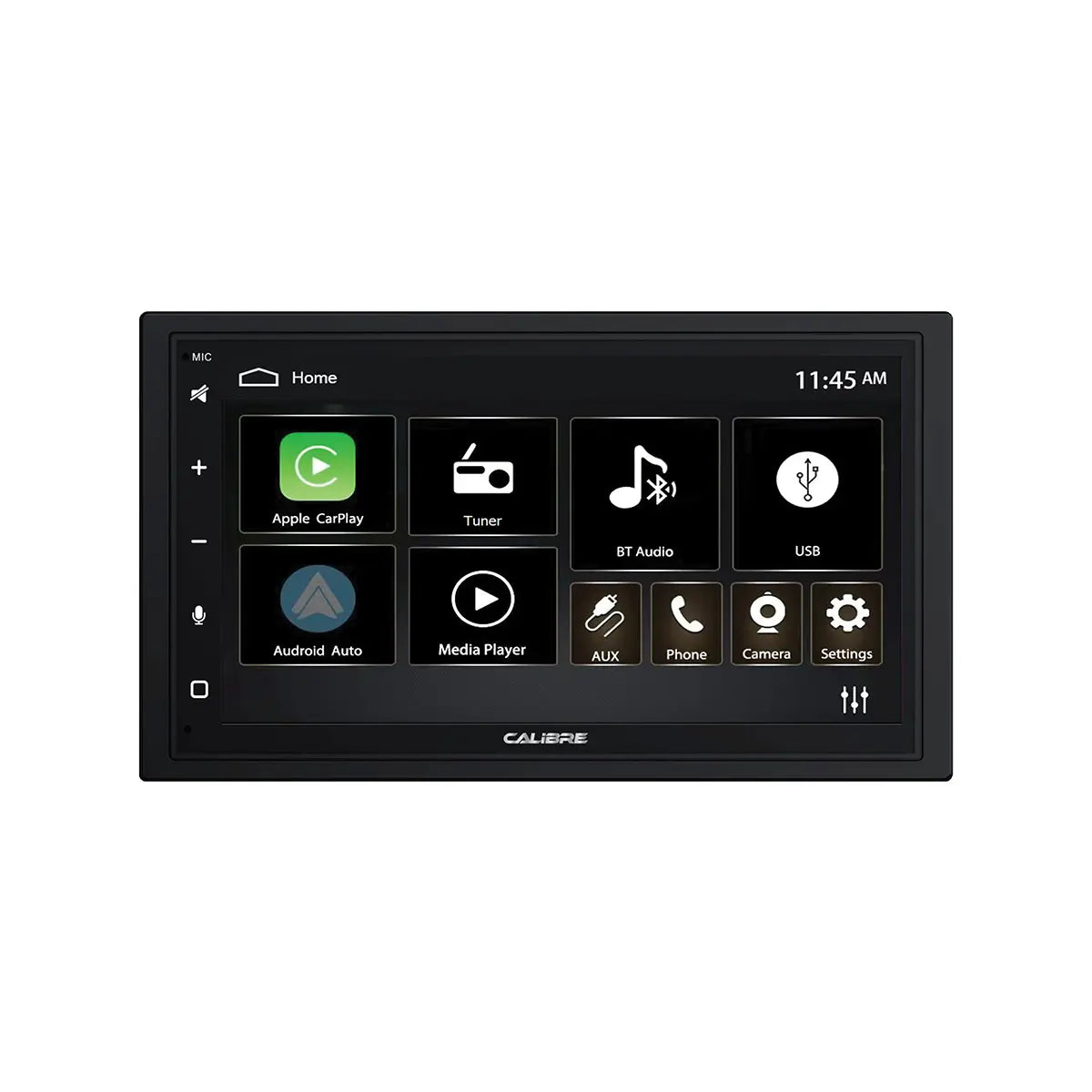

Calibre 6.8" Wireless CP AA Receiver

General

• 6 inch 1024x600 High Resolution Capacitive Touchscreen

• Linux OS

• Steering Wheel Control (Programmable)

• Digital Clock

• ISO 2-DIN Mounting

• Speaker Impedance 2-8ohm

• 10.8~16 DC Voltage

• -20° to +70°C Operating Temp

• 170.5W x 97H mm Face Panel

• 178W x 100 mm Overall

Navigation

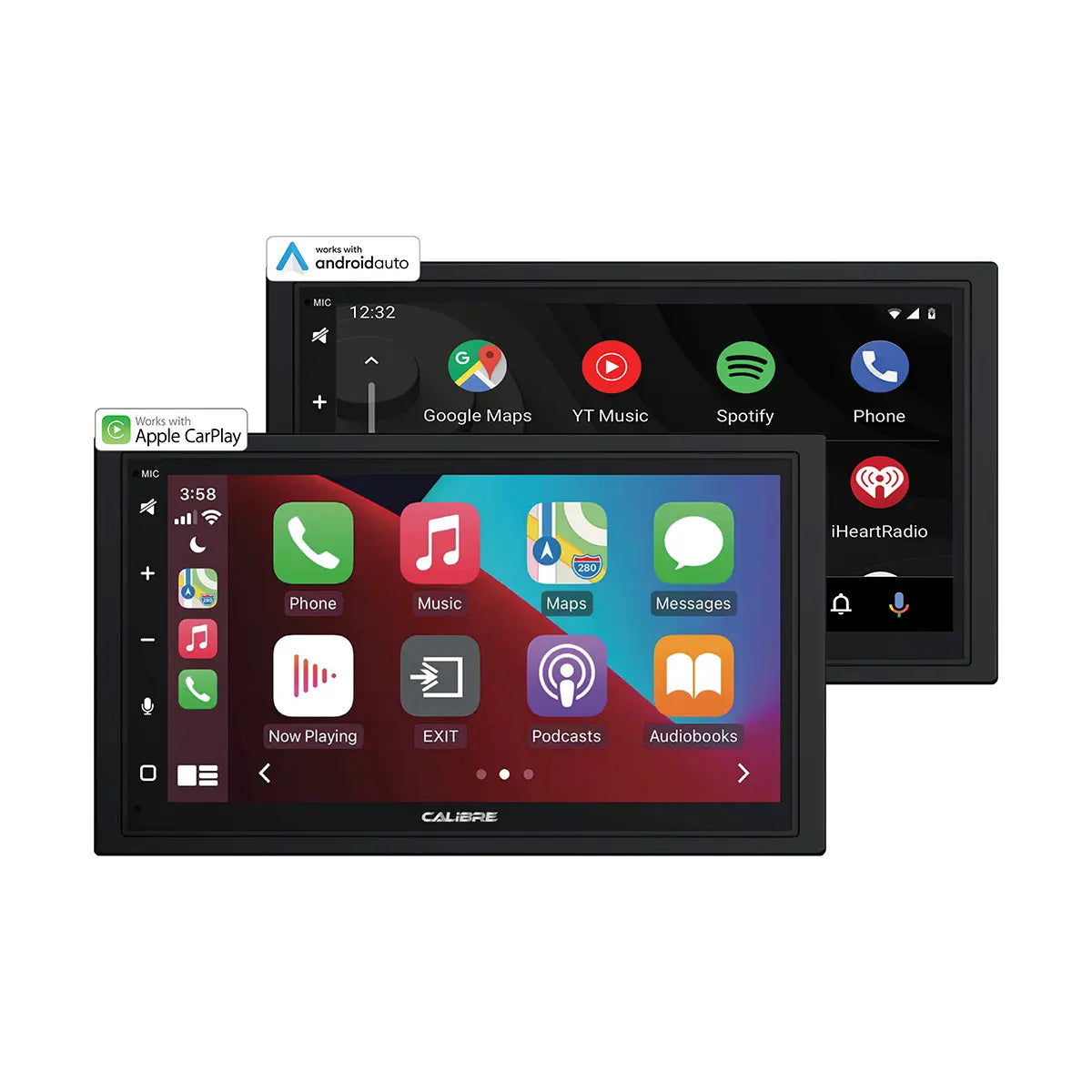

• Via CarPlay/Android Auto

Multimedia

• Built-in Wi-Fi

• 2 x Rear USB 2.0 (1 x USB Media, 1x CP/AA)

• 1 x Rear A/V RCA Input

• 2 x Camera Inputs (Front & Rear) (PAL & NTSC)

• Audio Formats: FLAC, MP3, WMA

• Video Formats: AVI, FLV, MKV, MOV, WMV

• Image Formats: BMP, JPEG, PNG

Tuner

• PLL Synthesized AM/FM

• ELITE RDS AM/FM Tuner

• FM 87.5-108MHz; AM522-1710KHz

• 18  FM & 12 AM Presets

Audio

• Max Power:
  • 4x72W @ 2Ω
  • 4x48W @ 4Ω

• RMS Power:
  • 4x38W @ 1KHz 1% THD 2Ω
  • 4x22W @ 1KHz 1% THD 4Ω

• Selectable On/Off Max 2% THD Limiter

• Internal Amp: On/Off

• 10 Band EQ: 32/63/125/250/500/1K/2K/4K/8K/16K

• Front/Rear Out HPF: OFF/50/80/120/160Hz

• Sub Out LPF: OFF/20/30/40/50/60/80Hz

• Time Alignment: Front L/R, Rear L/R, Sub

• Loud/Mute

• 4 x RCA Pre-out 4V

• 2 x Sub RCA Pre-out 4V

Bluetooth

• A2DP Audio Streaming

• Hands Free Phone

• Simultaneous 2 x Phone Connect

• Phonebook & Search

• Call History

• External Microphone
