Autobacs - HD5120CK

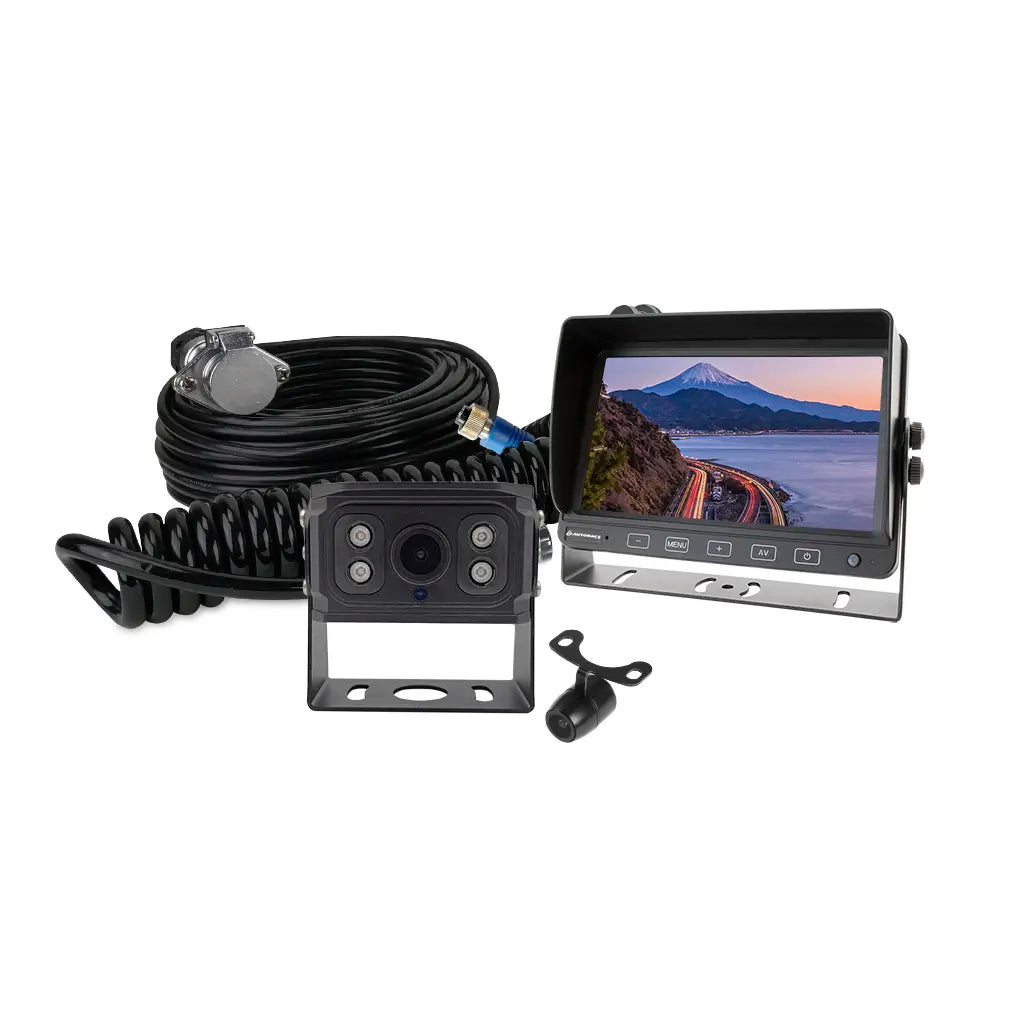

Autobacs 5" 2 Camera Caravan Kit

Autobacs 5" 2 Camera Caravan Kit

$650.00 AUD
$650.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

The HD5120CK is an advanced rear-view caravan camera kit that offers exceptional resolution.

This hassle-free system includes all the necessary components to easily install a dependable caravan/trailer camera and monitor system.

With this kit, you can confidently navigate your journey while having a clear and comprehensive view of your surroundings during reverse manoeuvres, allowing you to focus on your forward progress with peace of mind.

Display

  • LCD Size: 5-Inch (Diagonal)
  • Display Format: 16:9
  • Resolution: 1024 x 600
  • Brightness: < 500 CD/M2
  • Viewing Angles: 70° Left/Right/Up/Down
  • Video System: Auto PAL/NTSC Select
  • Video Connect: 2 x 4-Pin (Female)
  • Buttons: Touch Sensitive
  • Compatibility: Standard & High Resolution Camera’s
  • Connection Type: Universal Standard 4-Pin Configuration (M)
  • Camera Triggers: 2
  • Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
  • Guidelines: Selectable On/Off
  • Audio: Internal Speaker
  • Main Menu:
    • Brightness/Contrast/Saturation(Colour)/Auto Brightness,
    • Reset, Guidelines,
    • CAM1 Delay,
    • CAM2 Delay,
    • Language,
    • Up/Down CAM1 Mirror,
    • CAM2 Mirror,
    • Volume.
  • Operating Temp: -20°C to +70°C
  • Power Input: 10-32V DC (Negative Ground)
  • Dimensions: 132.2W x 94.3H x 22.45D mm (Excluding bracket & Visor)

Camera 1

  • Image Device: 1/2.9” PV4209K
  • Diagonal Viewing Angle: 120°
  • Horizontal Viewing Angle: 103°
  • Signal System: PAL
  • Effective Pixels: 1920(H) x 1080(V)
  • Resolution: 1080P
  • Compatibility: High Resolution HD Series Monitors
  • Sync System: Internal
  • Orientation: Mirror Image
  • Night Vision: 4 Infrared LED’s
  • Illumination: 0.01 Lux with IR on
  • Ingress Protection: IP68
  • Integrated Microphone: Yes
  • Operating Temp: -20 to 70° C
  • Dimensions (Excl. Bracket): 77.2W x 48.2H x 65.2D mm
  • Connection: Universal Standard 4-Pin Female
  • Power Supply: 12V DC (9-16V)
  • Power Consumption: <3W
  • Max Current: <250mA

Camera 2

  • Sensor: 1/3" CMOS
  • Diagonal Viewing Angle: 120°
  • Horizontal Viewing Angle: 100°
  • Signal System: PAL
  • Effective Pixels: 640 x 480
  • Resolution: 480p
  • Orientation: Selectable Mirror/Non Mirror
  • Night Vision: 0.2 Lux
  • Ingress Protection: IP67
  • Integrated Microphone: No
  • Operating Temp: -20 to 70°
  • Power Consumption: 90-300mA
  • Dimensions: 16.5W x 16.5H x 23D mm (Excluding Bracket)
  • Connection Type: Mini 4 Pin Terminated RCA (M)
  • Lead: 6m
  • Power Supply: 9-32V DC

Includes

  • Monitor
  • Sunshade
  • U-Bracket & Gymbal Knobs
  • Glass Mount Bracket
  • Wiring Loom
  • Camera 1
  • Camera 2
  • Camera Trigger controller
  • 6m Mini 4-PIN To RCA Lead
  • 4-PIN To RCA Adaptor
  • Curly Cable (Woza)
  • Trailer Cable Mounts
  • 10m 5-PIN To 4-PIN Lead
  • 30cm 5-PIN To 4-PIN Fly Lead
  • 15m 4-PIN To 4-PIN Lead
