Powertech - SZ1926
Anti-Tamper 4-Gang Switch Bank with Circuit Breakers – SZ1926
Anti-Tamper 4-Gang Switch Bank with Circuit Breakers – SZ1926
Couldn't load pickup availability

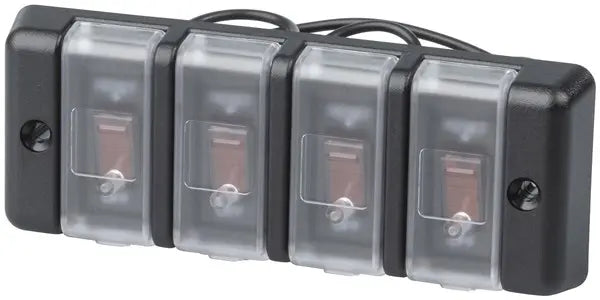

The Powertech SZ1926 Anti-Tamper Switch Bank combines four 16A/12VDC rocker switches with integrated circuit breaker functionality. Each switch will automatically trip if its circuit exceeds 16A, ensuring safe and reliable protection without the need for separate fuses.
Designed with translucent protective covers, this panel discourages accidental or unauthorised tampering—ideal for powering essential onboard systems that must remain active while underway. Each cover includes a recess for permanent function labels, and the included decal sheet provides 45 common labels ranging from Bilge Pump to Radar, Fridge, Deck Wash, VHF, and more.

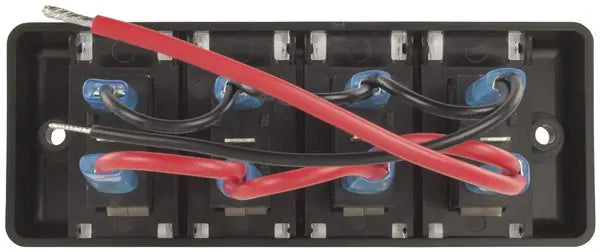

Compact and durable, the panel requires only ~40mm clearance behind for wiring, and mounts easily with the supplied countersunk screws. Perfect for marine, RV, or automotive installations where circuit security is a priority.
Key Features
- 4 rocker switches with integrated 16A circuit breakers
- Protective translucent anti-tamper covers on each switch
- Circuit breaker function cuts power automatically at >16A
- Includes 45 pre-labelled decals for easy function identification
- Compact design, only 40mm clearance required behind panel
- Mounts with 2 included countersunk screws
- Durable and reliable for marine, RV, and 12V applications
Specifications
Model Number | SZ1926 |
Number of Switches | 4 |
Switch Type | Rocker with integrated breaker |
Voltage Rating | 12V DC |
Current Rating | 16A (per switch) |
Anti-Tamper Covers | Translucent protective panels |
Included Labels | 45 decals (e.g., Bilge Pump, Radar, VHF) |
Wiring Clearance Required | ~40mm |
Mounting | 2 x No.8 countersunk screws (included) |
Dimensions (W x H x L) | 130mm x 50mm x 40mm |
Packaged Volume | 1.64L |
Packaged Weight | 0.14kg |
Packaged Size (L x W x H) | 16.9cm x 10.2cm x 9.5cm |
