Amptron PowerUp 3600 3600W 3072Wh Portable Power Station Set
Ideal for mobile worksites, caravans, off-grid setups, events and home backup applications requiring high-output portable AC and DC power.
Regular price
$3,799.00 AUD
Regular price
$4,299.00 AUD
Sale price
$3,799.00 AUD
Unit price/ per
Sale
Tax included.
Shipping calculated at checkout.
Genuine Amptron PowerUp 3600 complete set
Built-in RCBO for enhanced AC electrical protection
3600W pure sine wave output with 3072Wh LiFePO4 storage
Expandable to 12,288Wh with additional battery modules
Expert support available before and after purchase

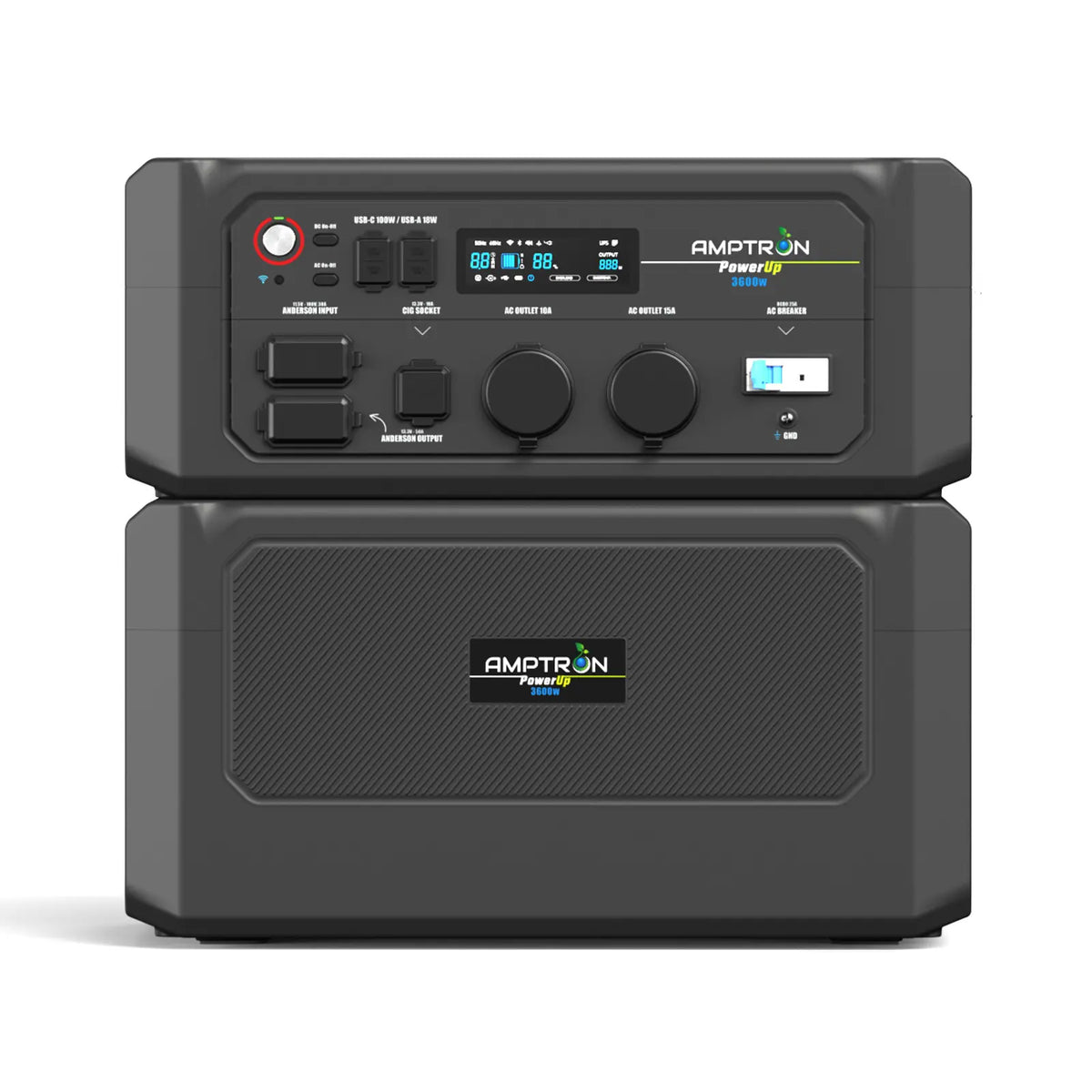

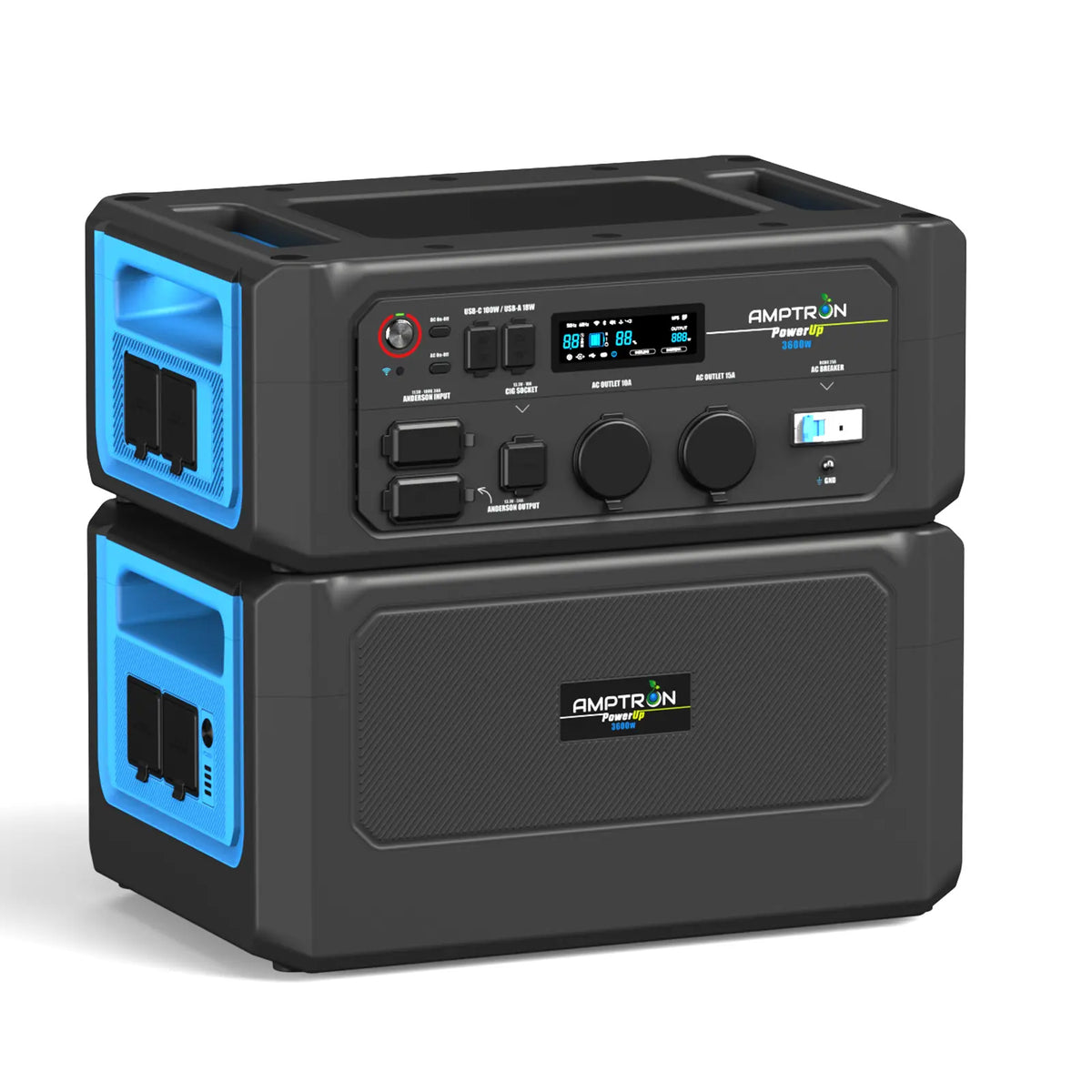

The Amptron PowerUp 3600 is a modular portable power station combining a 3600W pure sine wave host unit with a 3072Wh LiFePO4 battery, connection cables and folding trolley. It provides high-capacity AC and DC power for mobile worksites, caravans, off-grid setups, events and home backup applications without the noise and exhaust of a fuel generator.
The host delivers up to 3600W through its 15A AC output and includes an integrated RCBO for overload, short-circuit and electric-shock protection. Charging options include AC input up to 1800W and a wide-range 11.5–100V DC MPPT input up to 30A for compatible solar or vehicle-based charging arrangements.
The supplied 3072Wh battery uses LiFePO4 chemistry and the system can be expanded to a total of four battery modules for up to 12,288Wh of storage. This set includes the host, one battery, parallel power cable, MC4-to-SB50 cables, cable bag and folding trolley for easier transport.
Key Features
3600W rated 15A AC output with 5000W peak capability
3072Wh LiFePO4 battery module included

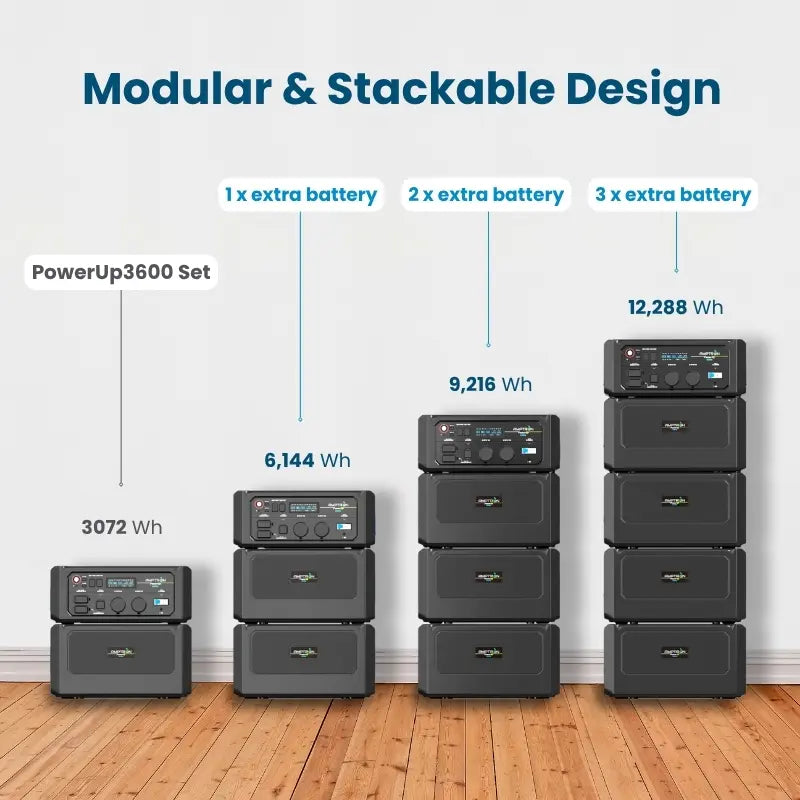

Expandable to four battery modules and 12,288Wh total capacity
Pure sine wave AC output with greater than 88% efficiency
Integrated CHINT RCBO for overload, short-circuit and electric-shock protection
AC charging up to 1800W
11.5–100V DC MPPT input up to 30A and 1000W
12V 50A Anderson output plus USB-A, USB-C and cigarette-socket outputs

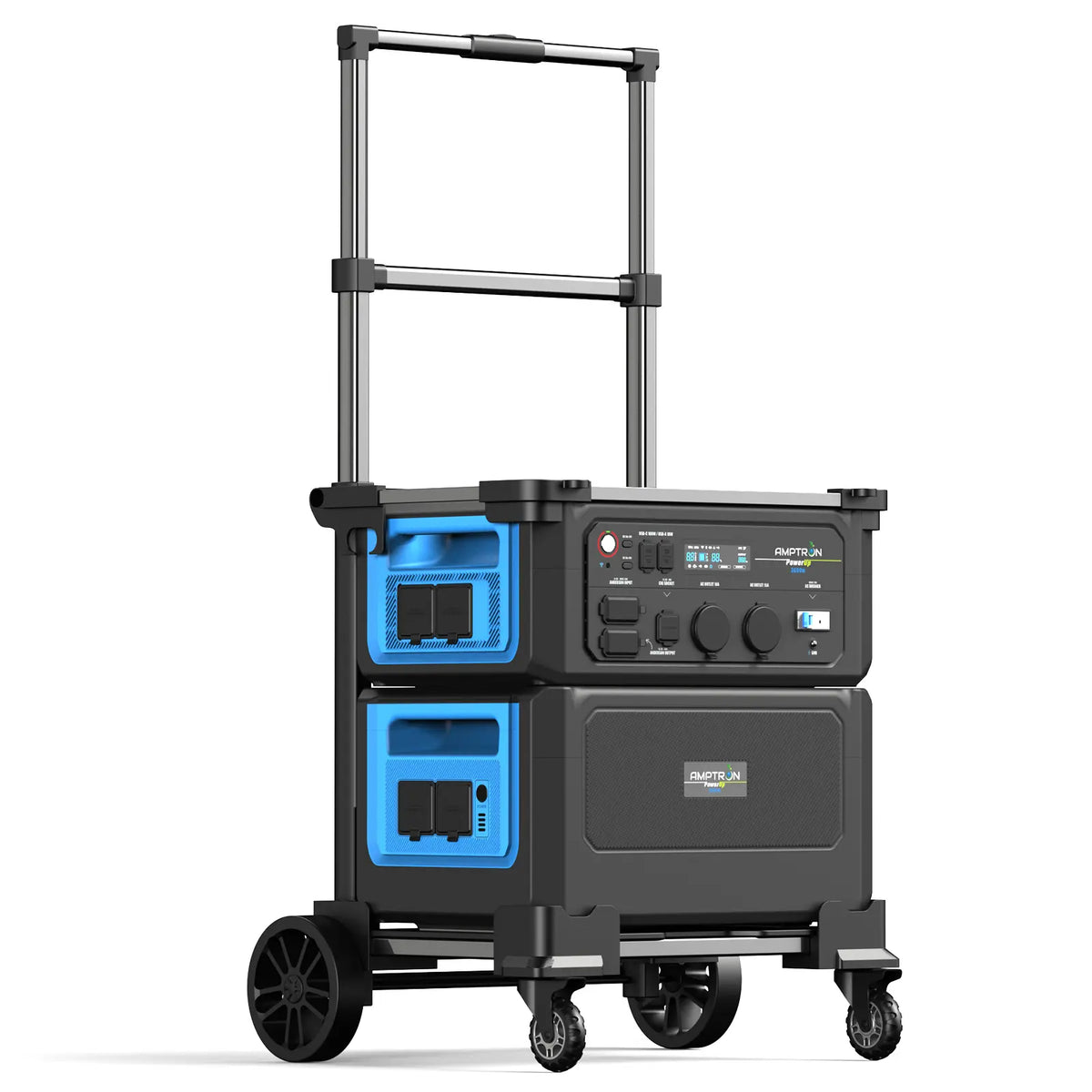

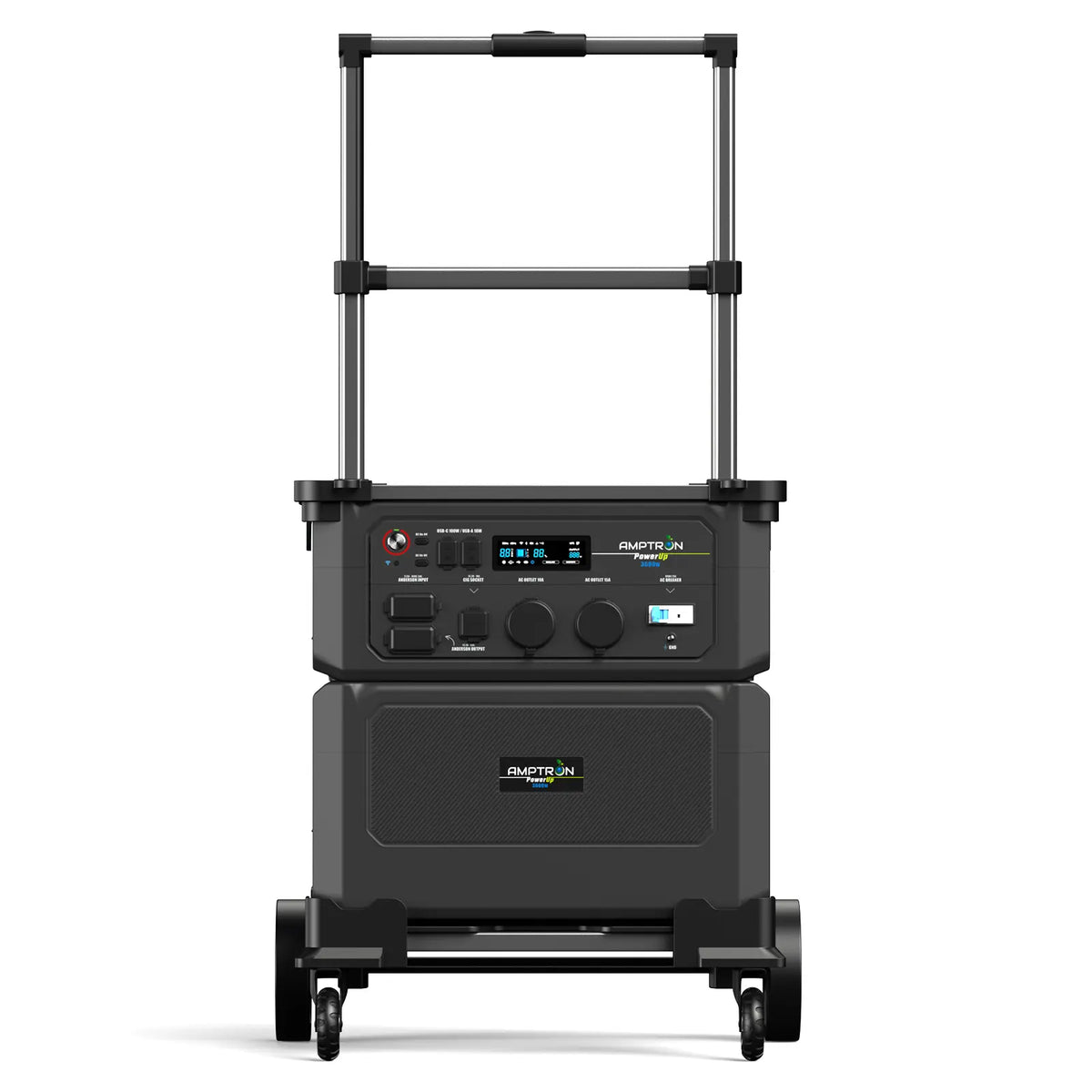

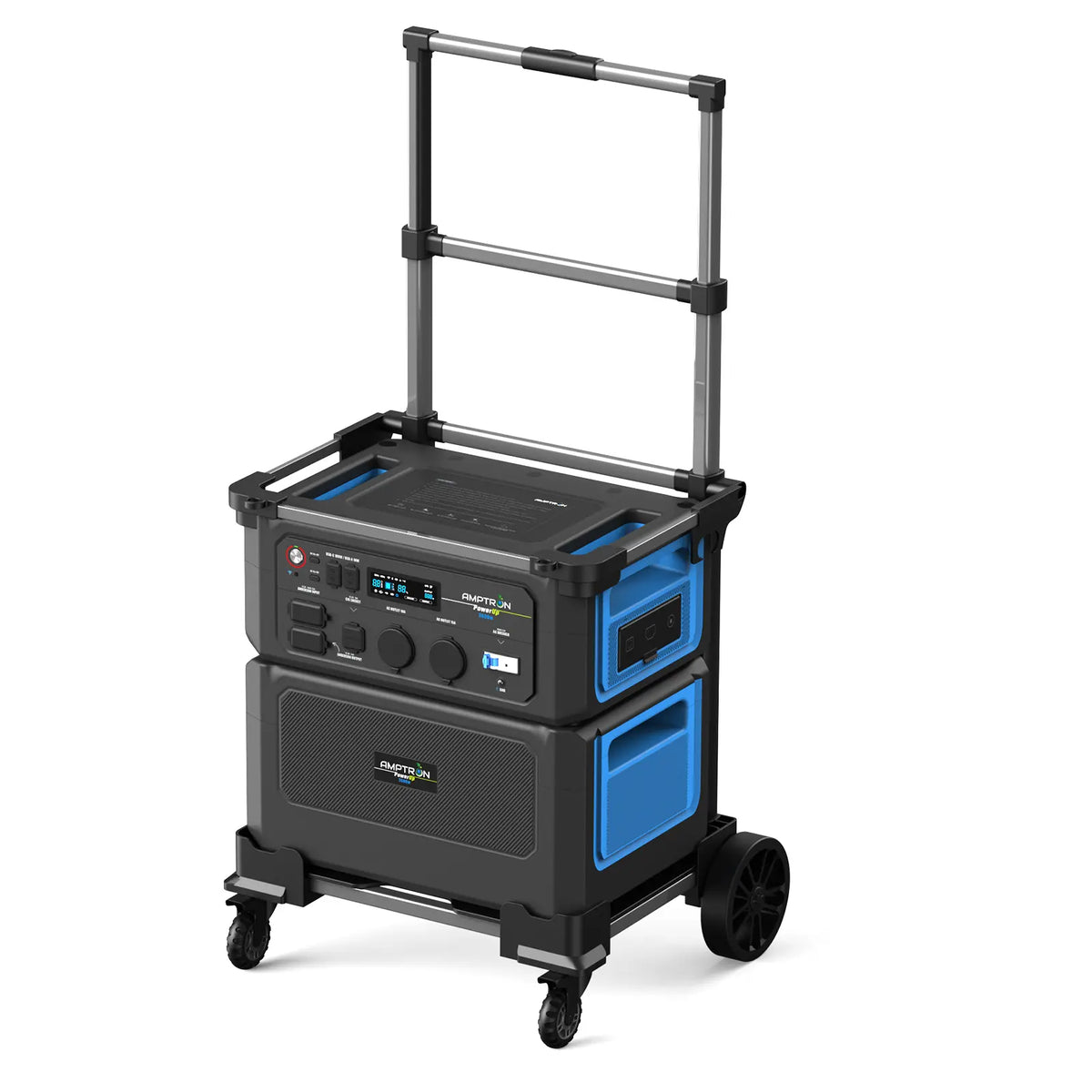

Modular stackable design with folding trolley included
Specifications
Brand
Amptron
Model / SKU
AT-PORT-POWERUP3600-SET
Product Type
Portable power station set
Battery Chemistry
LiFePO4
Included Battery Capacity
3072Wh, 51.2V, 60Ah
Expandable Capacity
Up to 12,288Wh using four battery modules total
15A AC Output
200–240V AC, 15A maximum, 3600W rated
10A AC Output
200–240V AC, 10A maximum, 2400W rated
Peak AC Output
5000W
AC Waveform
Pure sine wave
AC Input
200–240V, 10A, 50/60Hz, 1800W maximum
DC MPPT Input
Anderson SB50 Red, 11.5–100V, 30A, 1000W maximum
Anderson DC Output
12V 50A, 600W maximum
USB-A Outputs
2 × QC 3.0, up to 12V 1.5A
USB-C Outputs
2 × PD, up to 100W
Cigarette Socket
12V 10A maximum
AC Protection
Integrated CHINT RCBO C25, RCM N136

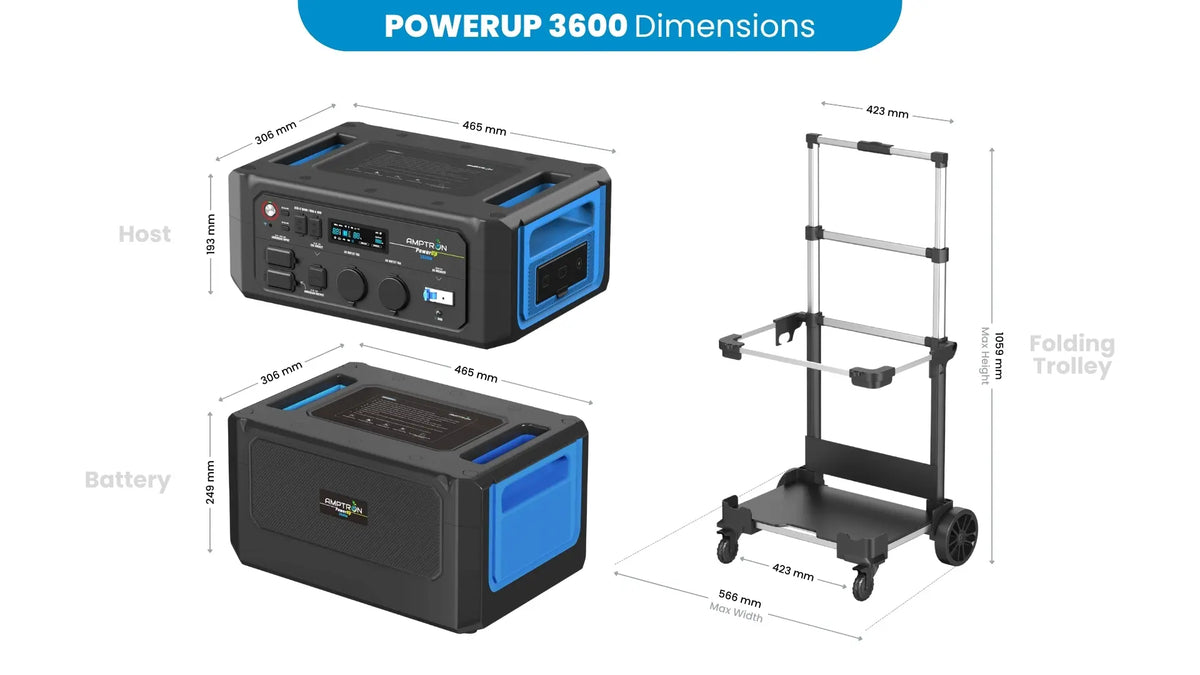

Host Dimensions
465 × 306 × 192mm
Host Weight
12kg
Battery Weight
29kg

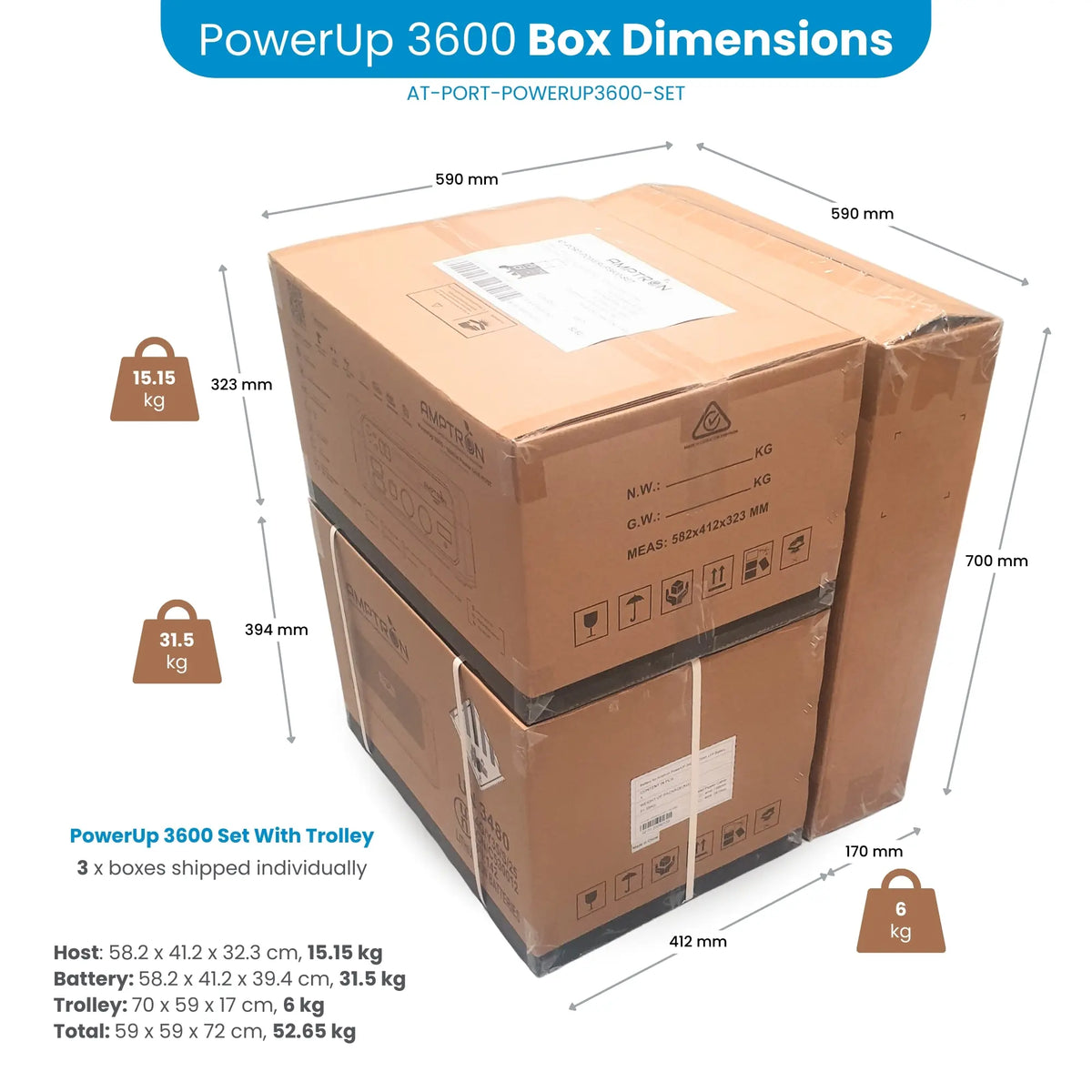

Packaged Shipping Dimensions
720 × 590 × 590mm
Packaged Shipping Weight
52.65kg
Host Operating Temperature
0°C to 45°C
Battery Charge Temperature
0°C to 45°C
Battery Discharge Temperature
-20°C to 60°C
Included

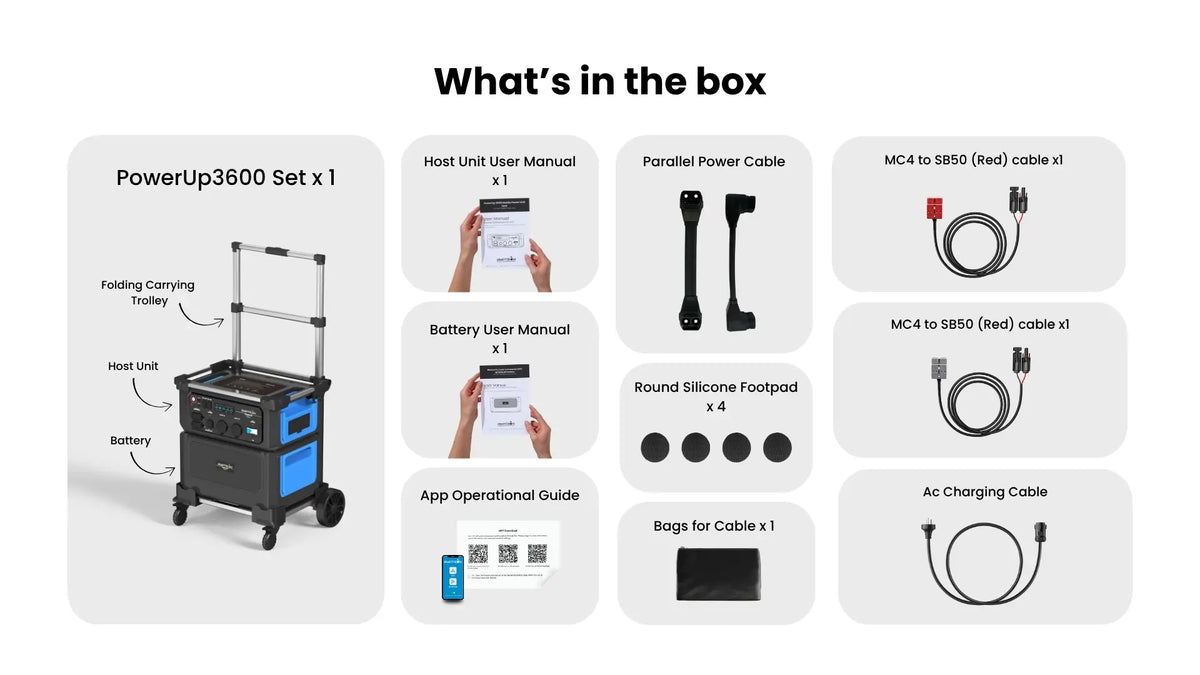

Host unit, 3072Wh battery, folding trolley, parallel power cable, cable bag, MC4-to-SB50 Red cable, MC4-to-SB50 Grey cable, manuals and four silicone footpads
Share
What is included with the Amptron PowerUp 3600 set?
The set includes one 3600W host unit, one 3072Wh LiFePO4 battery, a folding trolley, parallel power cable, cable bag, MC4-to-SB50 Red and Grey cables, manuals and four silicone footpads.
How much power and battery capacity does the PowerUp 3600 provide?
The host provides a rated 3600W through its 15A AC output, with 5000W peak capability. The included LiFePO4 battery stores 3072Wh at 51.2V and 60Ah.
Can the Amptron PowerUp 3600 battery capacity be expanded?
Yes. The system supports up to four 3072Wh battery modules in total, providing a maximum combined capacity of 12,288Wh. This set includes one battery, so additional modules are purchased separately.
How can the PowerUp 3600 be recharged?
It supports AC charging at up to 1800W and DC MPPT charging through the red Anderson SB50 input at 11.5–100V, up to 30A and 1000W. Compatible solar or vehicle-based charging equipment must remain within those input limits.
Does the Amptron PowerUp 3600 include AC electrical protection?
Yes. The host has an integrated CHINT RCBO for overload, short-circuit and electric-shock protection. Connected equipment must still remain within the relevant 10A or 15A outlet rating and the unit must be used according to Amptron's instructions.
