Amptron - AT‑BMSMON‑2.4‑COL‑RS485‑AV01

BluEdge LCD 2.4″ Full‑Colour RS485 BMS Display

BluEdge LCD 2.4″ Full‑Colour RS485 BMS Display

Regular price $175.00 AUD
Regular price Sale price $175.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

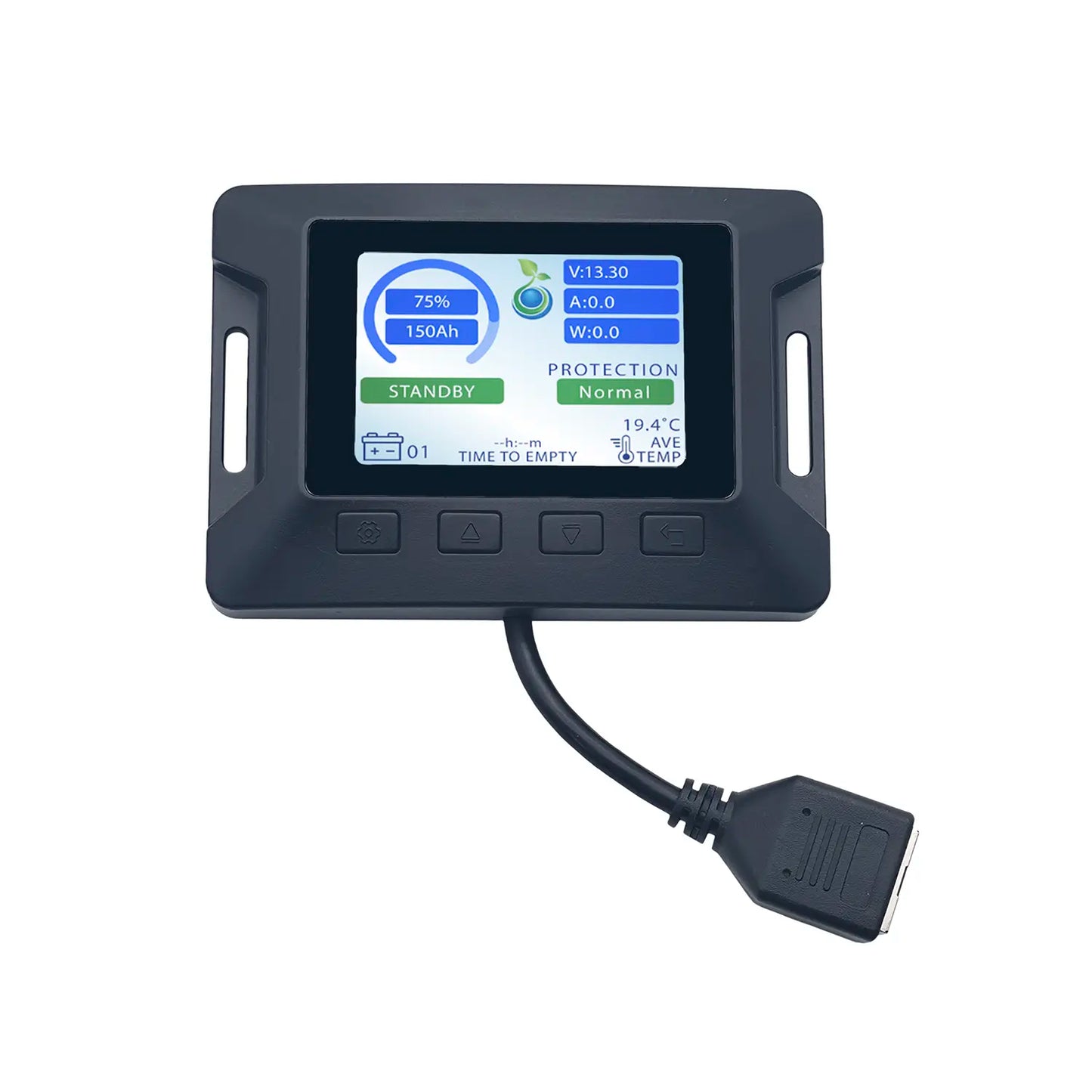

Monitor your Amptron BluEdge LiFePO₄ battery system with ease using the BluEdge LCD 2.4″ Full‑Colour RS485 BMS Display. Designed for Australian off‑grid, marine, 4WD, and solar installations, this flush‑mounted display delivers real‑time battery system insights including:

  • State of Charge (SOC % and Ah)
  • Voltage, Current (Amps & Watts), Temperature
  • Cycle count and time to empty

It supports parallel monitoring of up to 16 batteries (for compatible 24V–48V systems), with cell‑level voltage and temperature data where available. Featuring a built‑in audible alarm and intuitive interface, it helps you pre‑empt faults before system shutdown. Simple setup via RS485 cabling completes your Australian‑rated system with compliance to AS/NZS 3001.2:2022 and AS/NZS 3004.2:2014 standards.

Key Features

  • 2.4‑inch Full‑Colour LCD Display – Easy‑to‑read battery monitoring
  • Real‑Time Sensor Data – SOC, voltage, amperage, wattage, temperature, cycles
  • Built‑In Audible Alarm – Alerts on fault conditions before shutdown

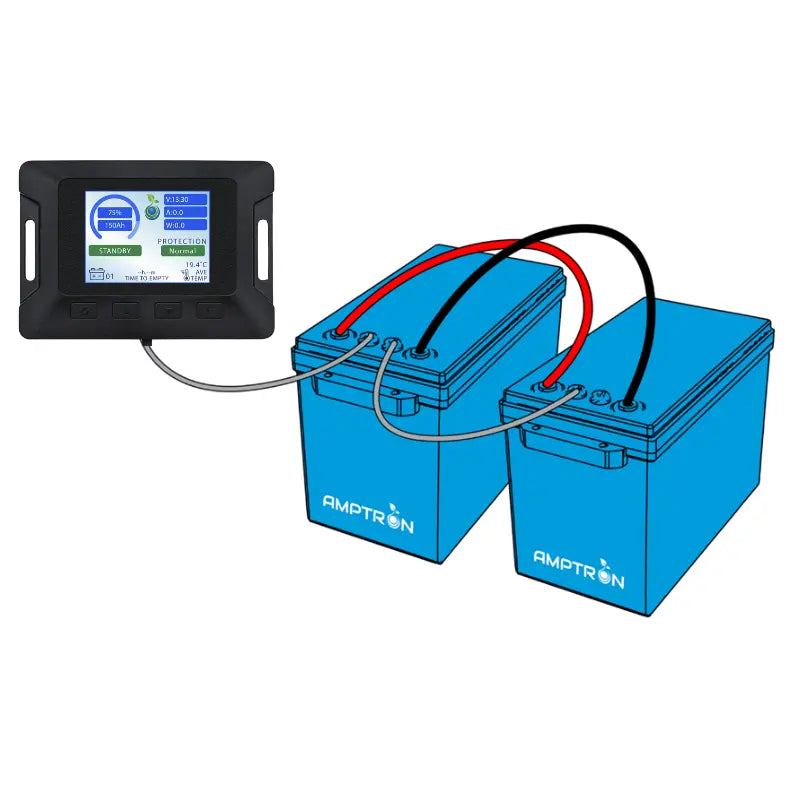

  • Parallel Battery Support – Consolidated display of up to 4 (12V/24V) or 16 (24V–48V) batteries
  • Cell‑Level Monitoring – View individual cell voltage and temperature on supported batteries

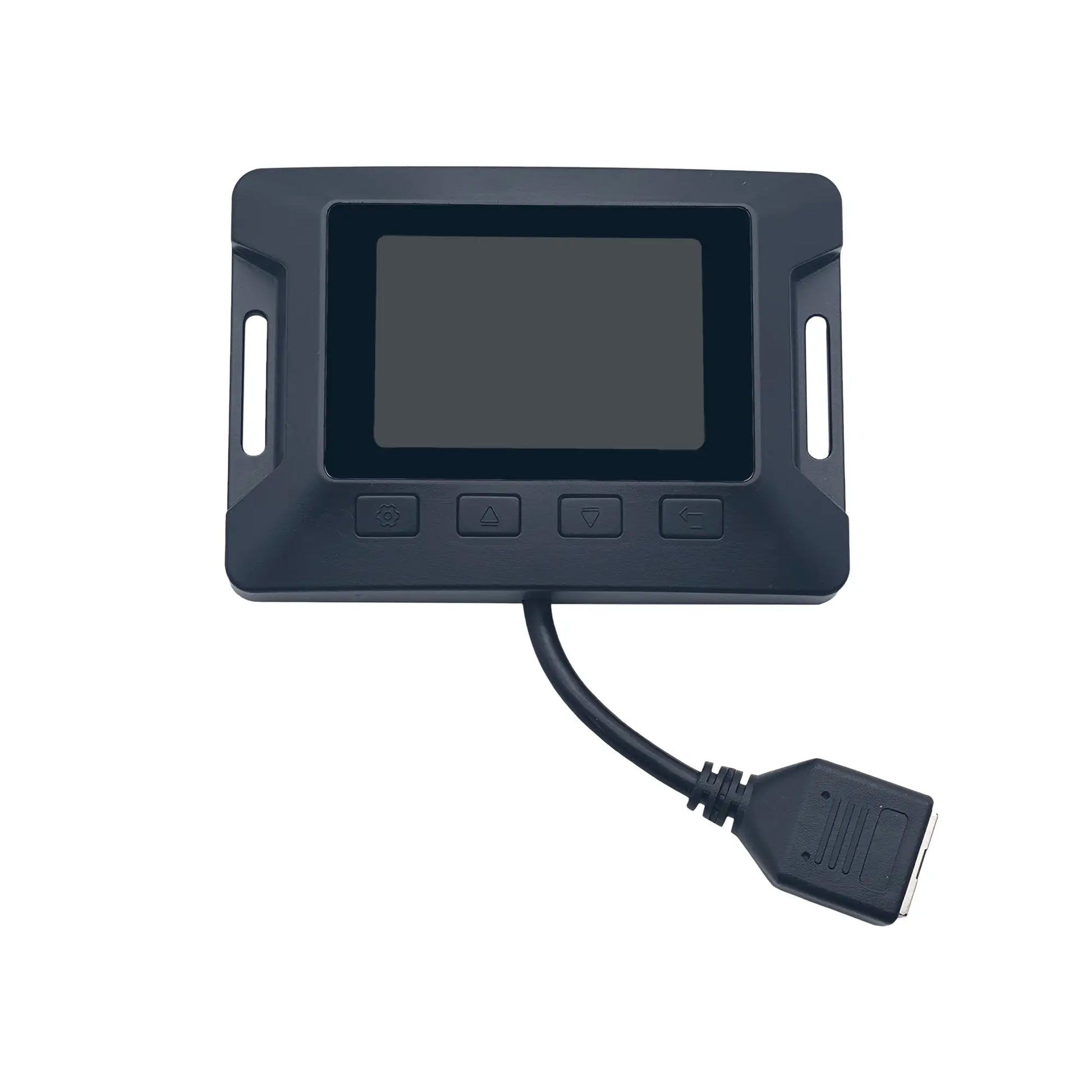

  • Flush‑Mount Design with UTP Extension Capability – Clean installation, extendable via RS485 cabling
  • Compact & Lightweight – Weighs only ~20 g and measures 100 × 70 × 15 mm
  • Australian Certification Compliance – Meets AS/NZS 3001.2:2022 and AS/NZS 3004.2:2014 standards

Specifications

Model AT‑BMSMON‑2.4‑COL‑RS485‑AV01
Display 2.4″ Full‑Colour LCD
Communication Interface RS‑485 (Modbus‑RTU), via compatible adapter cable
Supported Battery Systems Amptron BluEdge 12 V, 24 V, 36 V, 48 V LiFePO₄
Parallel Monitor Capability Up to 4 batteries @12–24 V; up to 16 @24–48 V
Cell‑Level Data Available for 24 V, 36 V, 48 V BluEdge models
Alarm System Built‑in audible alert with fault code display
Installation Flush‑mount; extendable via network/UTP cable
Dimensions (W x H x D) 100 × 70 × 15 mm
Weight ~20 g
Ingress Protection IP55 (splash resistant, not suitable for outdoor use)
Compliance AS/NZS 3001.2:2022, AS/NZS 3004.2:2014
Warranty 24 months
