Amptron - AT-MON-DCDC-M4850ND

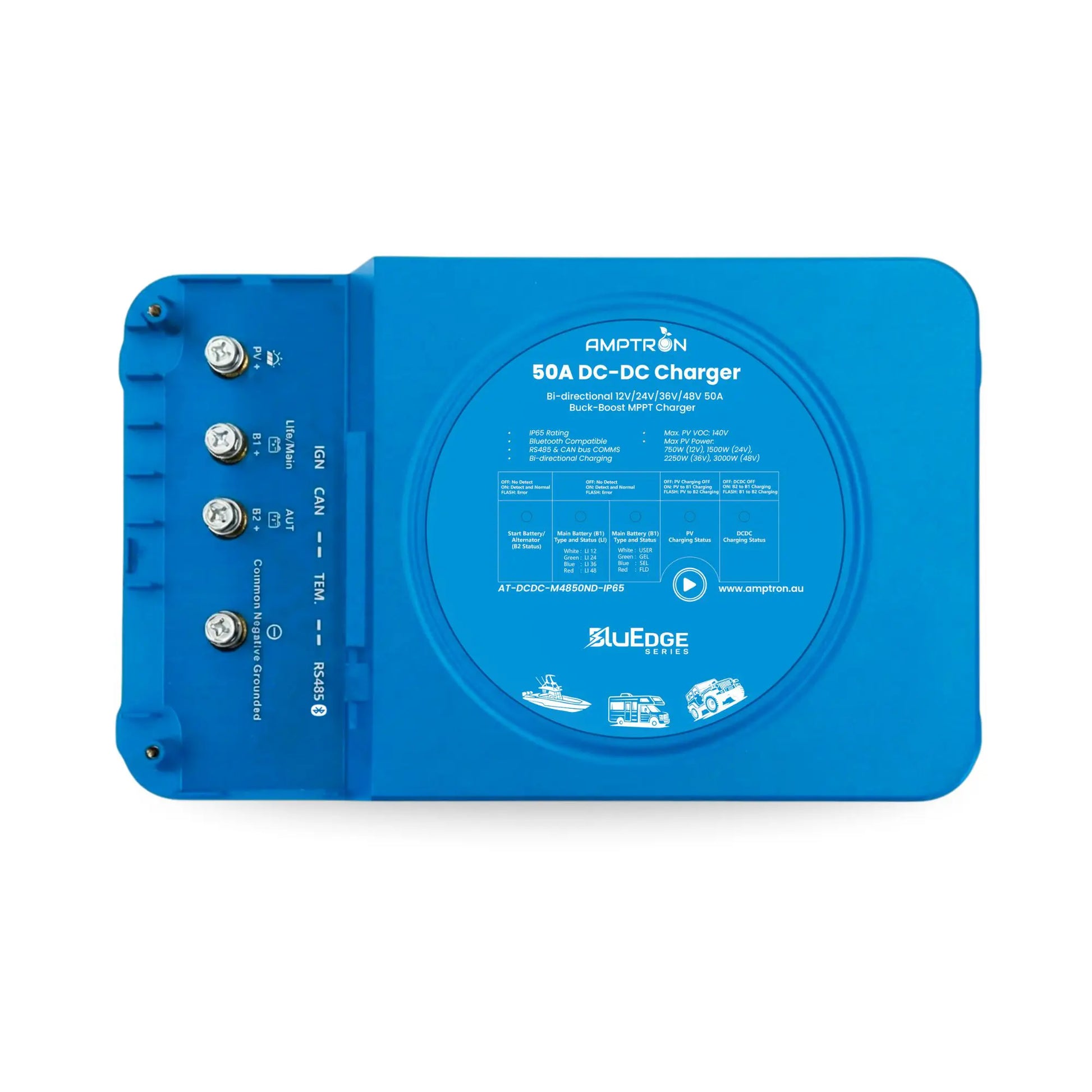

Amptron BluEdge 50A Smart DC-DC Charger 12V-48V Bi-Directional MPPT IP65

Ideal for 4WDs, caravans, motorhomes, boats, commercial vehicles and off-grid battery systems requiring alternator and solar charging across 12V to 48V platforms.

$649.95 AUD
$649.95 AUD
Sale
Tax included. Shipping calculated at checkout.
  • Supports both smart and traditional alternators
  • Integrated MPPT solar charging included
  • Suitable for AGM, Gel, Flooded and Lithium batteries
  • IP65-rated for harsh Australian conditions
  • Backed by Amptron's advanced BluEdge charging technology

The Amptron BluEdge 50A Smart DC-DC Charger is an advanced bi-directional buck-boost charger designed for modern dual battery, off-grid, marine and commercial power systems. Supporting 12V, 24V, 36V and 48V battery systems, it delivers intelligent charging from alternators, solar panels and battery-to-battery power transfer in a single compact unit.

Unlike conventional DC-DC chargers, the BluEdge features true bi-directional charging capability, allowing energy to flow between Battery 1 and Battery 2 when required. The integrated MPPT solar controller continuously optimises solar input to maximise charging efficiency, while automatic battery prioritisation ensures your auxiliary battery is charged first before maintaining the starter battery.

Designed for compatibility with AGM, Gel, Flooded and Lithium batteries, the charger automatically detects system voltage and can communicate with supported smart batteries via CAN Bus. Built-in Bluetooth functionality is available when paired with the optional display or Bluetooth dongle, providing system monitoring and configuration through a mobile app.

With an IP65-rated enclosure, industrial-grade protection systems and charging efficiency exceeding 98%, the Amptron BluEdge is built for demanding Australian touring, marine, commercial and off-grid applications.

Key Features

  • 50A bi-directional DC-DC charging
  • Supports 12V, 24V, 36V and 48V battery systems
  • Integrated MPPT solar charger
  • Automatic buck and boost charging technology
  • Charges from alternator and solar simultaneously
  • Intelligent battery-to-battery charging
  • Automatic starter and auxiliary battery management
  • Compatible with AGM, Gel, Flooded and Lithium batteries
  • Supports smart and conventional alternators
  • CAN Bus communication for compatible smart batteries
  • Bluetooth monitoring available with optional accessories
  • Data logging capability up to 300 days
  • IP65 weather-resistant enclosure
  • Over 98% charging efficiency
  • Automatic system voltage detection
  • Comprehensive electronic protection systems

Specifications

Product Code AT-DCDC-M4850ND-IP65
Brand Amptron
Charger Type Bi-Directional DC-DC Charger with MPPT
Output Current 50A
Battery System Voltage 12V / 24V / 36V / 48V Auto Detection
Battery Types AGM, Gel, Flooded, Lithium
Charging Method Buck-Boost DC-DC + MPPT
Solar Charging Integrated MPPT Controller
Maximum Solar Input Voltage 140V Voc
Maximum Solar Input Power 750W / 1500W / 2250W / 3000W (depending on system voltage)
PV Tracking Efficiency >99%
Charging Efficiency >98%
Communication RS485 & CAN Bus
Bluetooth Optional Display or Bluetooth Dongle
Protection Rating IP65
Operating Temperature -25°C to +45°C
Storage Temperature -35°C to +65°C
Grounding Negative Ground
Connector Type M6 Bare Wire Terminals
Recommended Cable Size 12mm² (6AWG) for 50A

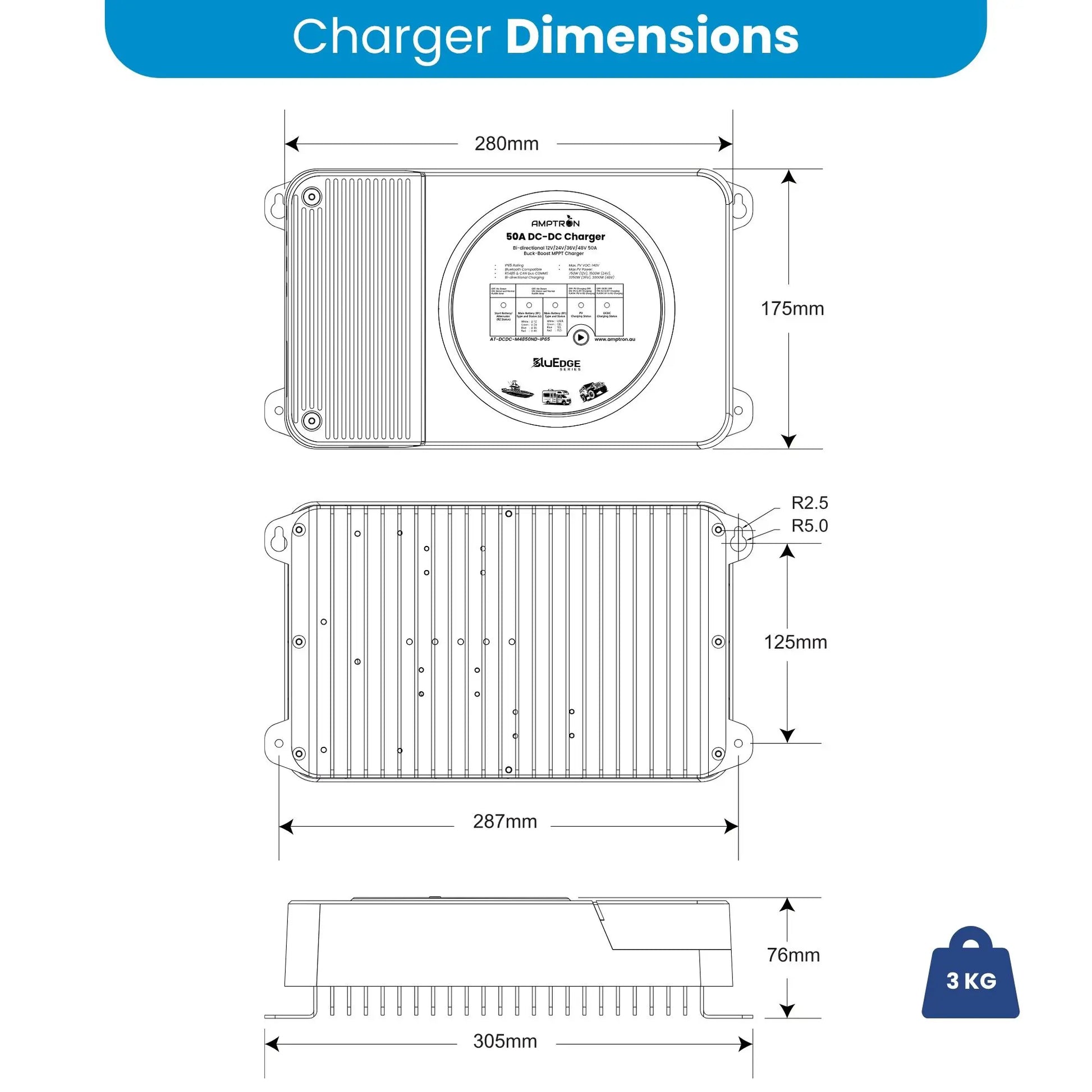

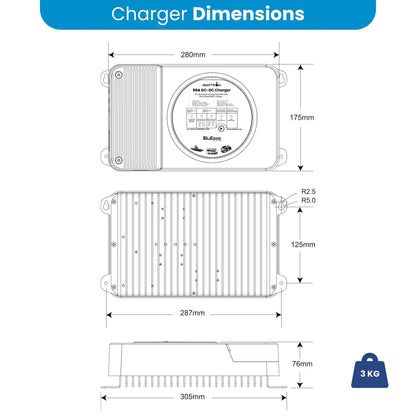

Dimensions 305 x 175 x 76mm
Battery Voltage Range 8V-64V
Data Logging Up to 300 Days

What battery systems does the Amptron BluEdge support?

The BluEdge automatically detects and supports 12V, 24V, 36V and 48V battery systems.

Does this charger include MPPT solar charging?

Yes. The charger includes an integrated MPPT solar controller that continuously optimises solar input for maximum charging efficiency.

Can it charge lithium batteries?

Yes. The BluEdge supports Lithium, AGM, Gel and Flooded battery chemistries.

What does bi-directional charging mean?

Bi-directional charging allows energy to transfer between Battery 1 and Battery 2 when required, helping maintain both auxiliary and starter batteries automatically.

Is this suitable for smart alternators?

Yes. The charger is designed to work with both traditional and smart alternator systems commonly found in modern vehicles.

Can I monitor the charger via Bluetooth?

Yes. Bluetooth monitoring is available when used with the optional Amptron display module or Bluetooth dongle and companion mobile app.

Is the charger weather resistant?

Yes. The charger features an IP65-rated enclosure suitable for demanding automotive, marine and outdoor installations.
