Amptron - AT-SOLCHR-AM4860NV01

60 A 12 V/24 V/36 V/48 V AM MPPT Solar Charge Controller with Bluetooth

60 A 12 V/24 V/36 V/48 V AM MPPT Solar Charge Controller with Bluetooth

$499.95 AUD
$499.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

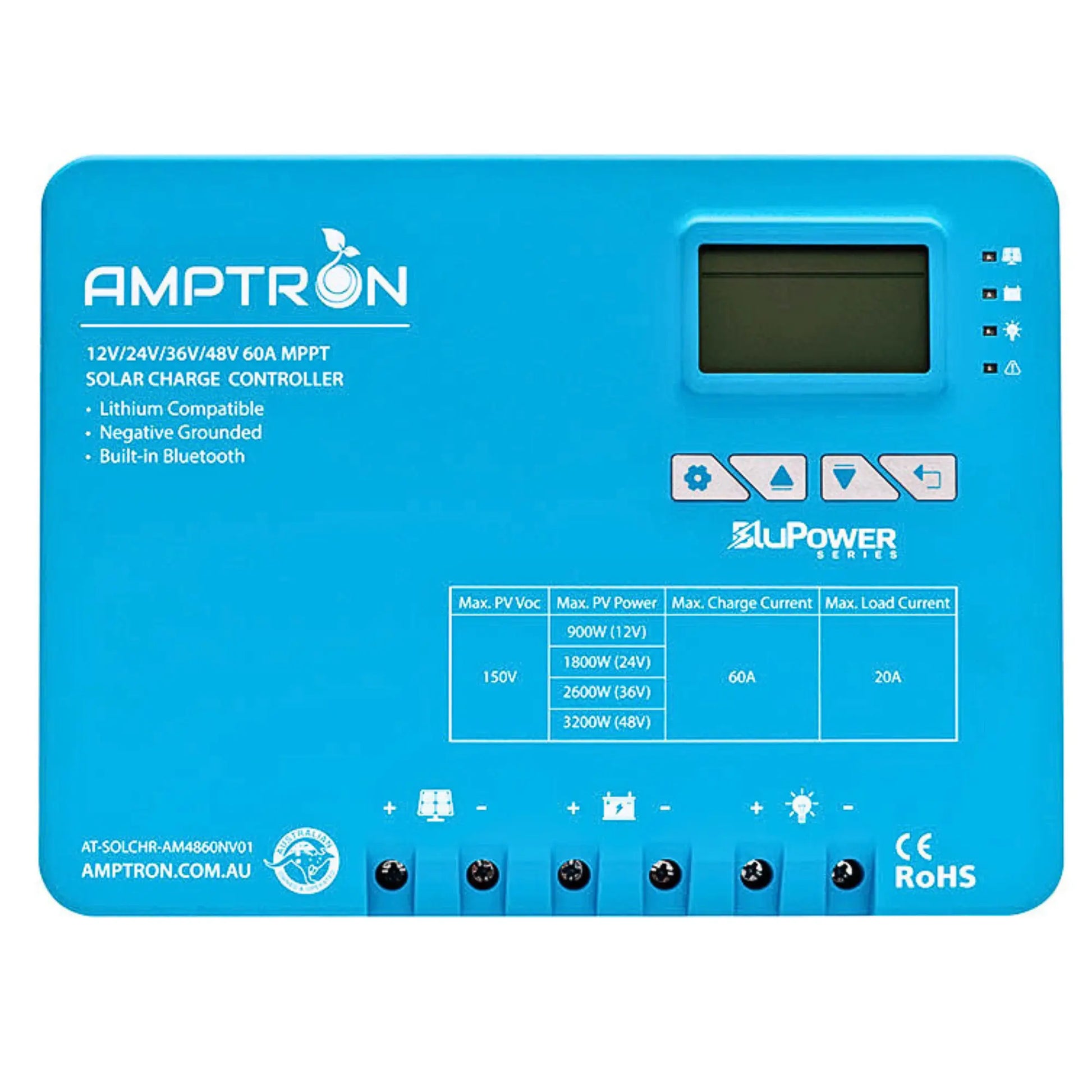

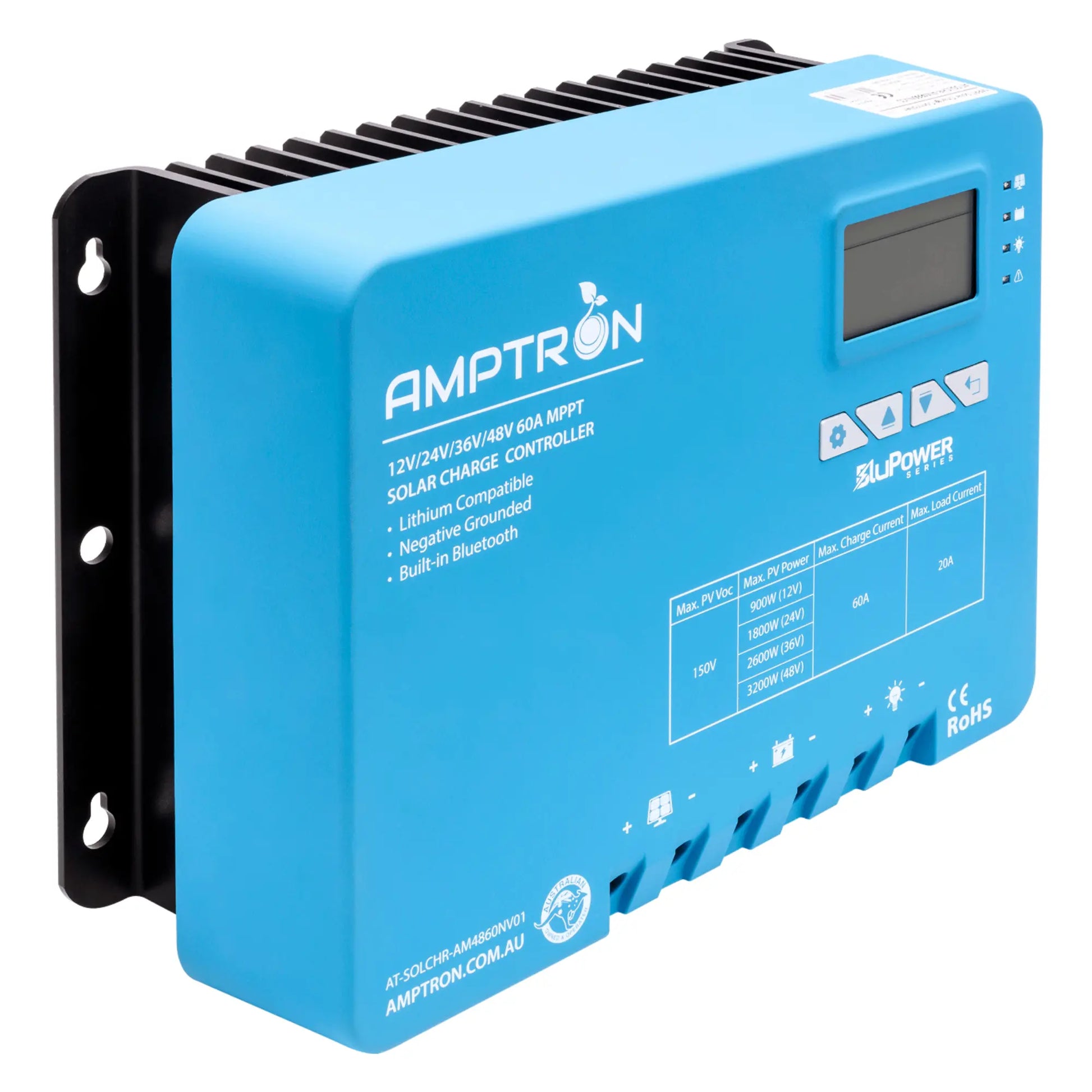

The Amptron 60 A AM MPPT Solar Charge Controller is a high-performance, multi-voltage solar regulator designed for professional-grade off-grid systems. Supporting 12 V, 24 V, 36 V, and 48 V battery banks, this controller is ideal for large-scale setups in caravans, RVs, marine applications, and remote solar installations across Australia.

Featuring advanced MPPT tracking for up to 98% peak efficiency, it maximises solar panel output even in variable conditions. With Bluetooth connectivity and RS485 support, the controller allows for seamless monitoring via mobile app or integration into automation systems. It supports lithium (LiFePO₄) and lead-acid batteries, includes 300-day data logging, and provides full safety protections in a quiet, fanless housing.

Key Features

  • 60 A MPPT Charging – Intelligent tracking increases solar charging performance
  • Supports 12V/24V/36V/48V Systems – Auto-detects and regulates for multi-voltage setups

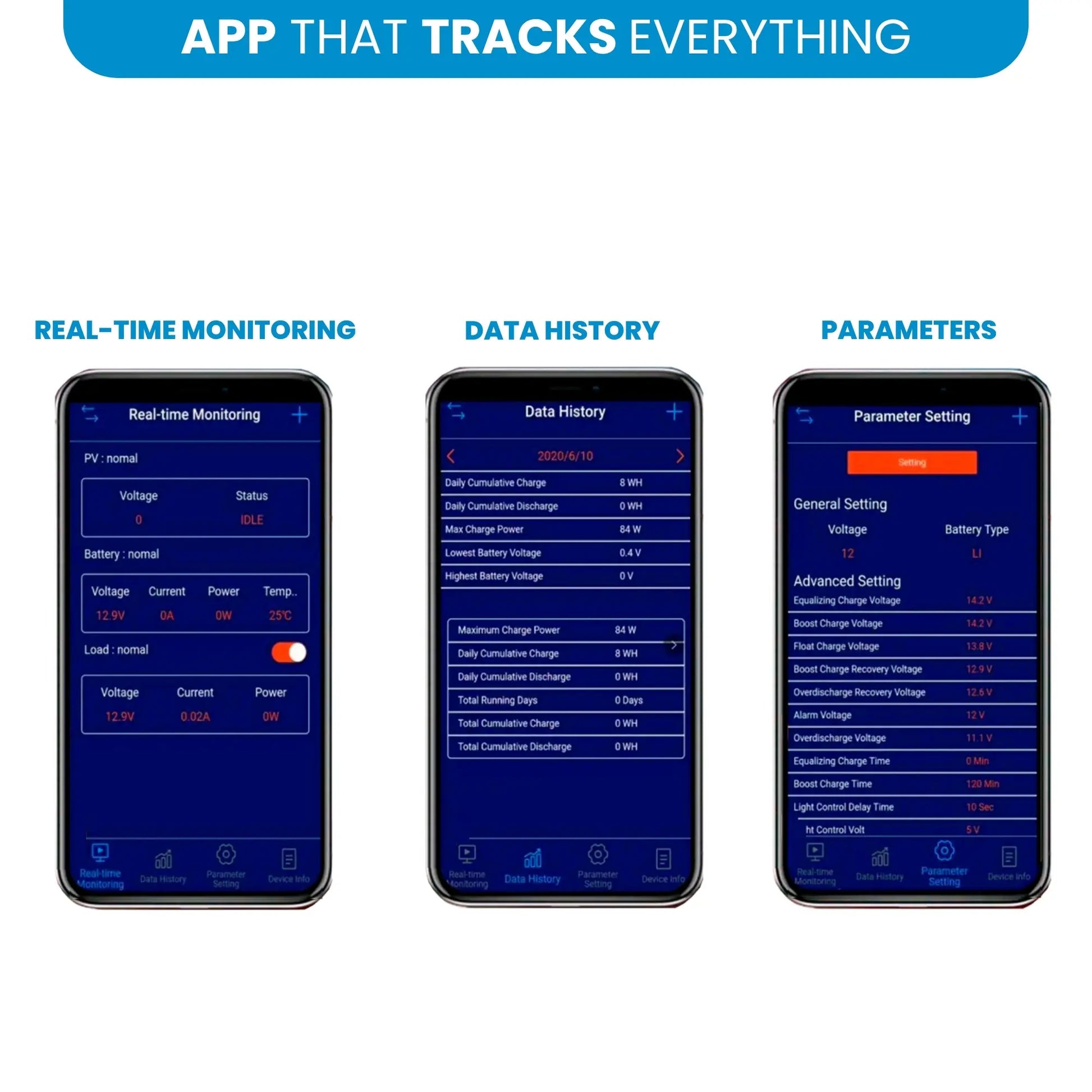

  • Bluetooth Monitoring – View and configure your system wirelessly via mobile app
  • Lithium & Lead-Acid Compatible – Works with LiFePO₄, AGM, Gel, Flooded, and custom profiles
  • Fanless Passive Cooling – Silent, efficient operation with long-term reliability
  • Built-in LCD Display – Real-time voltage, current, and status monitoring
  • 300-Day Data Logging – Track historical solar and battery data
  • Comprehensive Protection Suite – Overload, short circuit, reverse polarity, and over-temperature protection
  • RS485 Communication – MODBUS protocol for integration with external monitoring systems
  • Ideal for Large Solar Banks – Suitable for multi-panel, multi-battery installations

Specifications

Model AT-SOLCHR-AM4860NV01
System Voltage 12 V / 24 V / 36 V / 48 V auto-detection
Rated Charge Current 60 A
Max PV Input Voltage < 150 V
Max PV Input Power ~800 W (12 V) / ~1600 W (24 V) / ~2400 W (36 V) / ~3200 W (48 V)
Load Output Current Up to 60 A
Battery Compatibility LiFePO₄, AGM, Gel, Flooded, Custom
Communication Bluetooth + RS485 (MODBUS)
Temperature Compensation –3 mV/°C per 2 V cell
Data Logging 300 days onboard
Operating Temperature –35 °C to +45 °C
IP Rating IP32
Dimensions Approx. 250 × 180 × 85 mm
Weight Approx. 2.1 kg
Mounting Style Surface or bracket mountable
Warranty 2 years (standard)
