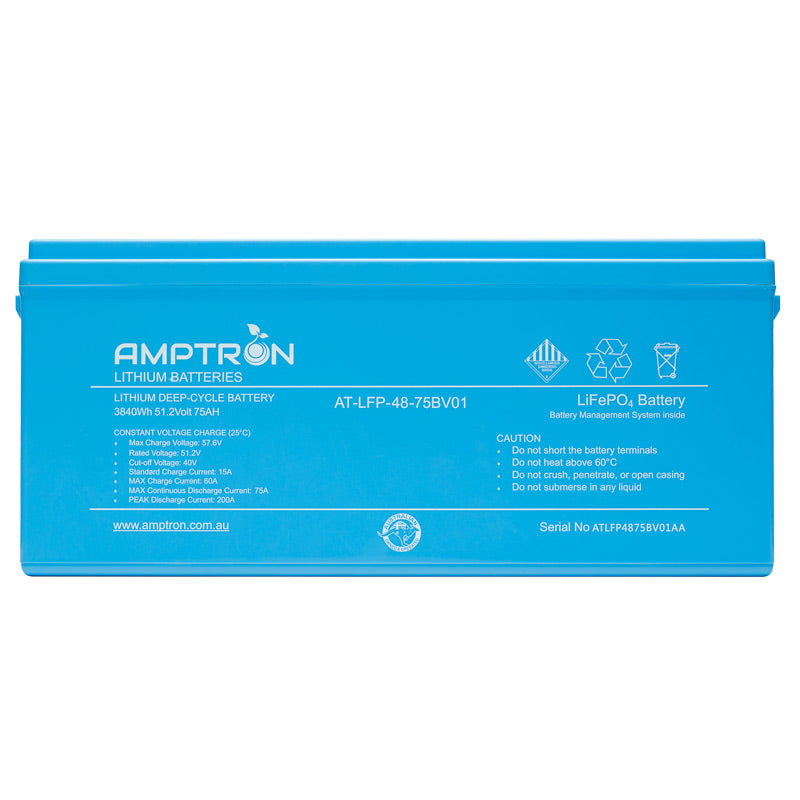

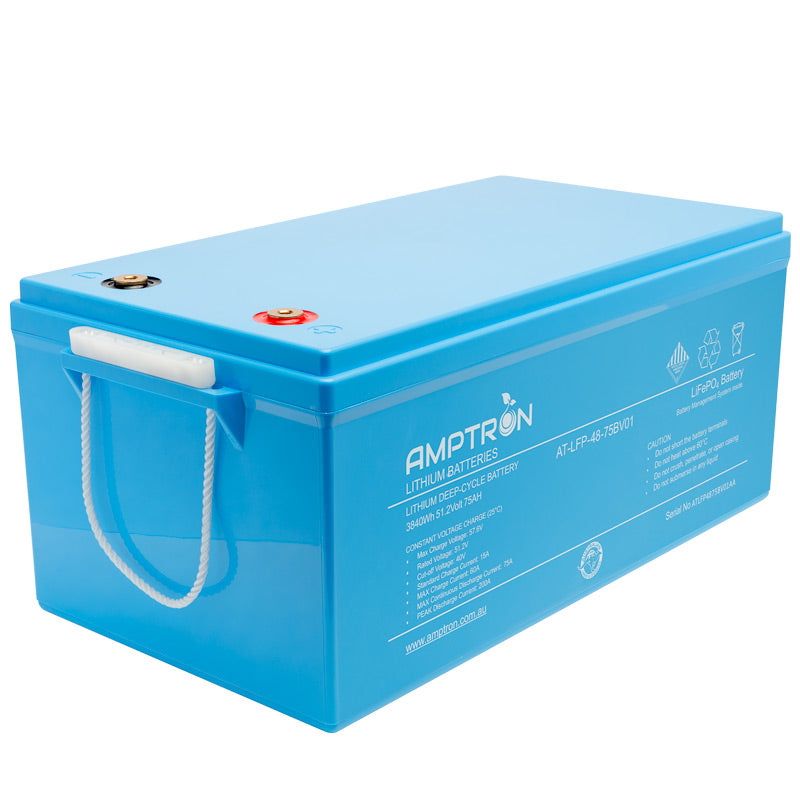

Amptron - AT-LFP-48-75BV01
48V 75Ah ABS LiFePO4 Battery
48V 75Ah ABS LiFePO4 Battery
Contact us for pricing or to purchase.
AMPTRON® 48V 75Ah Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The high peak discharge current makes these batteries suitable for high load applications such as in most standard size 48V electric golf carts, utility vehicles and other 48V applications utilising electric motors. The 75Ah capacity usually allows at least 2 full rounds around a golf course without recharging.
Specifications
|
Model
|
AT-LFP-48-75BV01
|
48V 75Ah LiFePO4 Battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-520mm x W-268mm x H-228mm
|
L x W x H
|
|
Weight
|
35kg
|
|
|
Cell type
|
3.2V 75Ah
|
Prismatic cells
|
|
Battery module
|
16 pcs 3.2V 75Ah cells, 1 parallel and 16 serial
|
|
|
Casing material for single cell
|
Aluminium
|
|
|
Standard capacity（0.2C5A）
|
51.2V 75Ah / 3840Wh
|
|
|
Cycle life
|
> 2000 cycles at 100% Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
51.2V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
58.4V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off voltage
|
Nominal 40V
|
Cut-off is triggered when the first cell reaches 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Optimum charge current
|
15A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Rapid charging
|
Max. charge current 75A (1C75A)
|
Cell max voltage < 3.9V
|
|
Max continuous discharge current
|
75A
|
1C, cell min voltage> 2.0v
|
|
Peak discharge current
|
200A
|
2.6C（5 seconds)
|
|
Discharge performance in normal temperature
|
15A (0.2C15A) ≥ 100％
75A (1C37.5A) ≥90％ |
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～65℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 45mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
