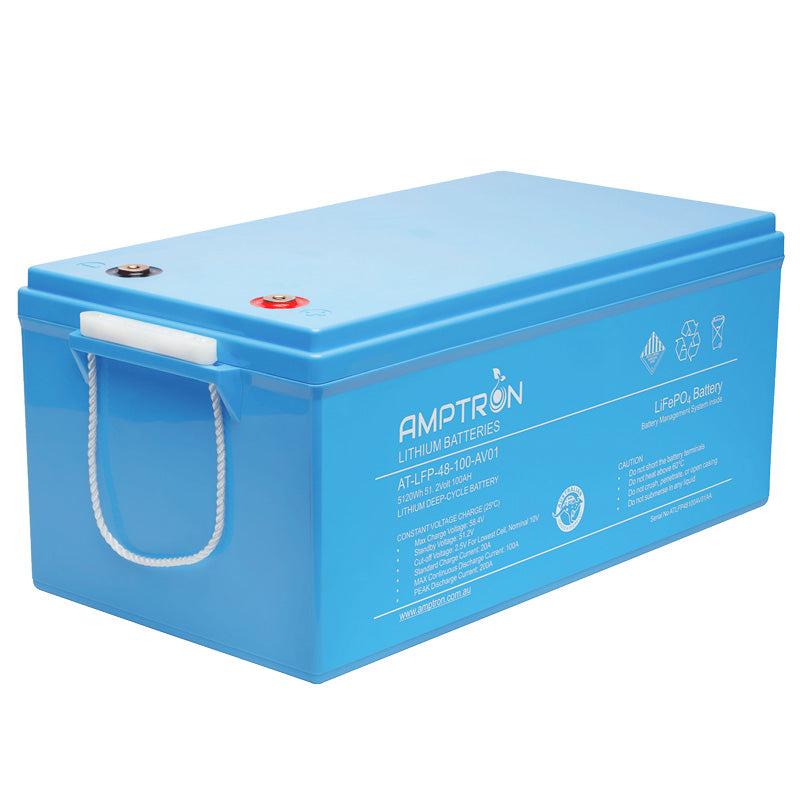

Amptron - AT-LFP-48-100BV01
48V 100Ah / 200A Continuous Discharge ABS LiFePO4 Battery
48V 100Ah / 200A Continuous Discharge ABS LiFePO4 Battery
Contact us for pricing or to purchase.
AMPTRON® 48V 100Ah Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 200A and peak discharge current 500A for 5 seconds.
The high peak current makes this battery suitable for even large 48V electric utility vehicles, golf carts and all-terrain vehicles (ATVs), or any other high-load 48V application.
Specifications
|
Model
|
AT-LFP-48-100BV01
|
48V 100Ah / 200A cont discharge LiFePO4 Battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-520mm x W-268mm x H-228mm
|
L x W x H
|
|
Weight
|
40kg
|
|
|
Cell type
|
3.2V 100Ah
|
Prismatic cells
|
|
Battery module
|
16 pcs 3.2V 100Ah cells, 1 parallel and 16 serial
|
|
|
Casing material for single cell
|
Aluminium
|
|
|
Standard capacity（0.2C5A）
|
51.2V 100Ah / 5120Wh
|
|
|
Cycle life
|
> 3000 cycles at 100% Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
51.2V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
58.4V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off volage
|
Nominal 40V
|
Cut-off is triggered when the first cell reaches 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Optimum charge current
|
20A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Maximum Charge Current
|
Max. charge current 50A (0.5C)
|
Cell max voltage < 3.9V
|
|
Max continuous discharge current
|
200A
|
2C, cell min voltage> 2.5v
|
|
Peak discharge current
|
500A
|
5C（5 seconds)
|
|
Discharge performance at normal temperature
|
20A (0.2C) ≥ 100%
100A (1C) ≥ 90%
|
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～65℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 3.5mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
