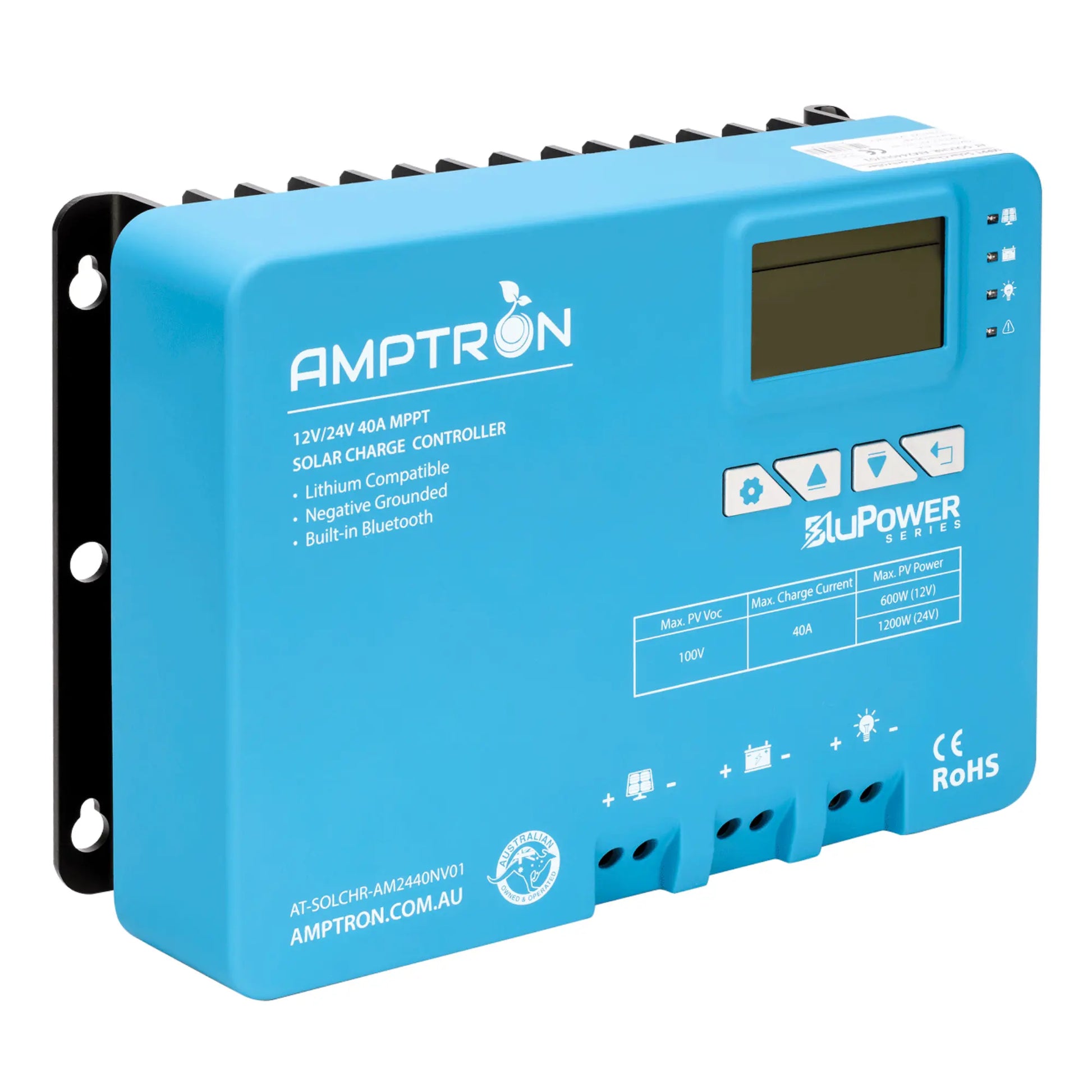

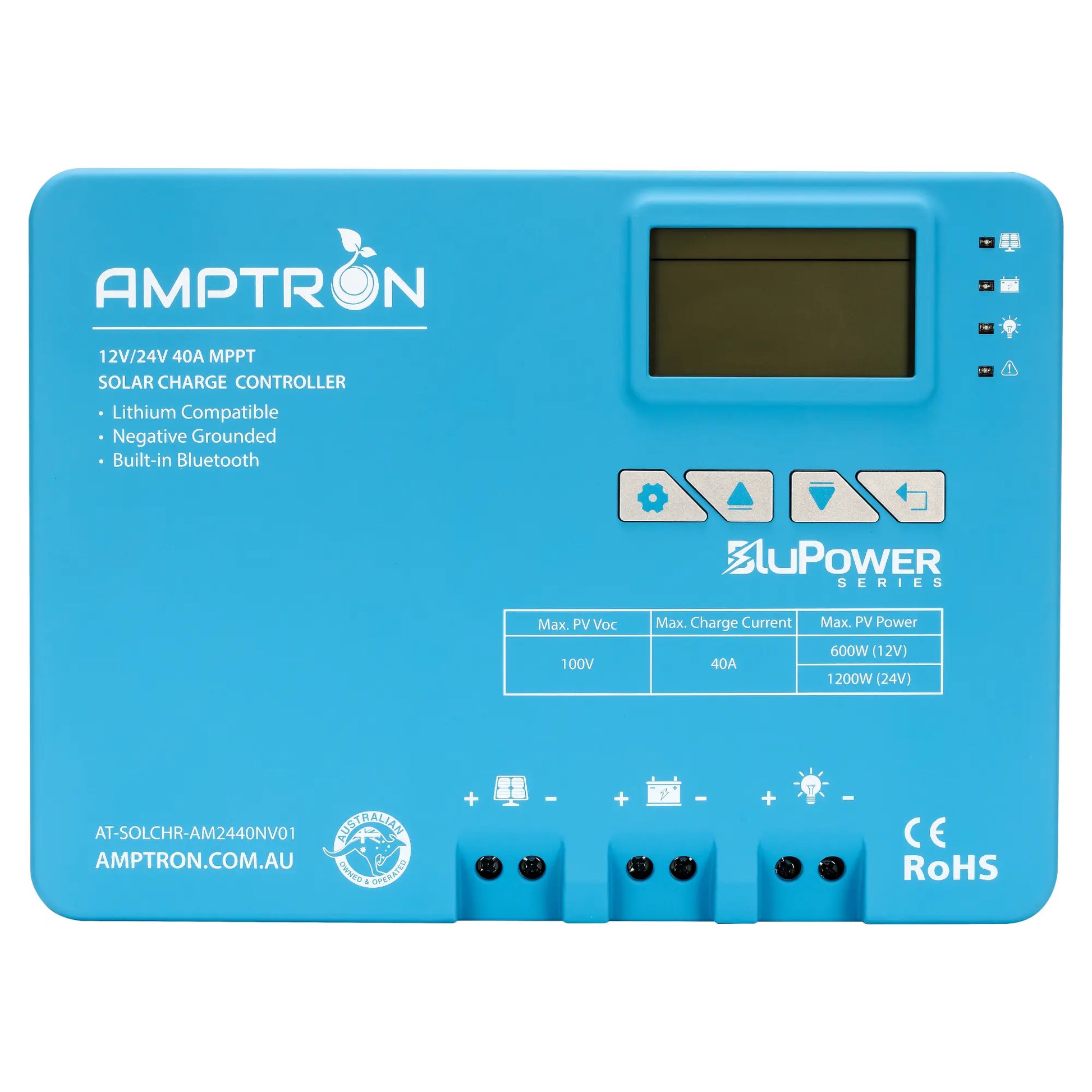

Amptron - AT-SOLCHR-AM2440NV01

40 A MPPT Solar Charge Controller 12 V/24 V with Bluetooth

40 A MPPT Solar Charge Controller 12 V/24 V with Bluetooth

Regular price $284.95 AUD
Regular price Sale price $284.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

The Amptron 40 A AM MPPT Solar Charge Controller delivers smart, efficient solar charging for 12 V and 24 V battery systems. Built for tough Australian conditions, it’s ideal for caravans, RVs, marine setups, and off-grid installations. Its high-performance MPPT tracking algorithm can increase solar harvest by up to 30% over PWM regulators, with peak efficiency near 98%.

Equipped with built-in Bluetooth, the controller allows you to monitor and adjust settings directly from your smartphone. It supports a wide range of battery chemistries, including LiFePO₄, and features automatic voltage detection, a built-in LCD display, 300-day data logging, and full electronic protections. With a passive heatsink and fanless design, it’s reliable, quiet, and built to last.

Key Features

  • 40 A MPPT Efficiency – Maximises energy harvest from solar panels

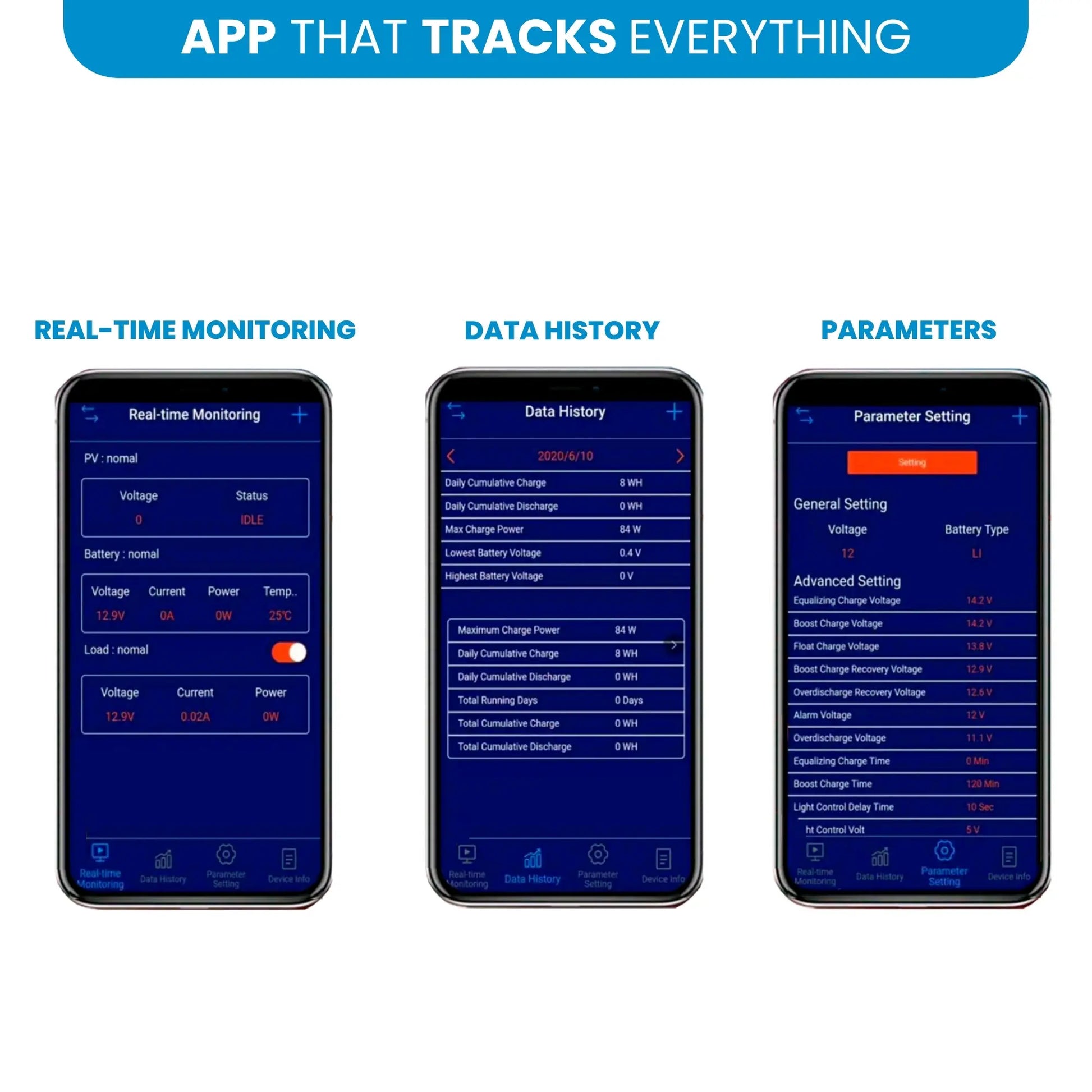

  • Bluetooth App Monitoring – Wireless control and performance tracking via smartphone
  • Automatic 12 V / 24 V Detection – Plug-and-play voltage recognition
  • Lithium & Lead-Acid Compatibility – Supports LiFePO₄, AGM, Gel, and Flooded batteries
  • LCD Display – Shows voltage, current, charging mode, load and more
  • 300-Day Data Logger – View historical charging data without extra hardware
  • Passive Cooling – Fan-free, heatsink design ensures silent and reliable operation
  • Full Protection Suite – Reverse polarity, short circuit, over-current, and more
  • RS485 Communication – Compatible with MODBUS systems
  • Temperature Compensation – Adjusts voltage based on ambient and battery temp

Specifications

Model AT-SOLCHR-AM2440NV01
System Voltage 12 V / 24 V auto-detection
Rated Charge Current 40 A
Max PV Input Voltage < 100 V
Max PV Input Power ~600 W (12 V) / ~1200 W (24 V)
Load Output Current Up to 40 A
Battery Compatibility LiFePO₄, AGM, Gel, Flooded, Custom
Communication Bluetooth + RS485 (MODBUS)
Temperature Compensation –3 mV/°C per 2 V cell
Data Logging 300 days onboard
Operating Temperature –35 °C to +45 °C
IP Rating IP32
Dimensions Approx. 220 × 155 × 75 mm
Weight Approx. 1.4 kg
Mounting Style Surface or bracket mountable
Warranty 2 years (standard)
