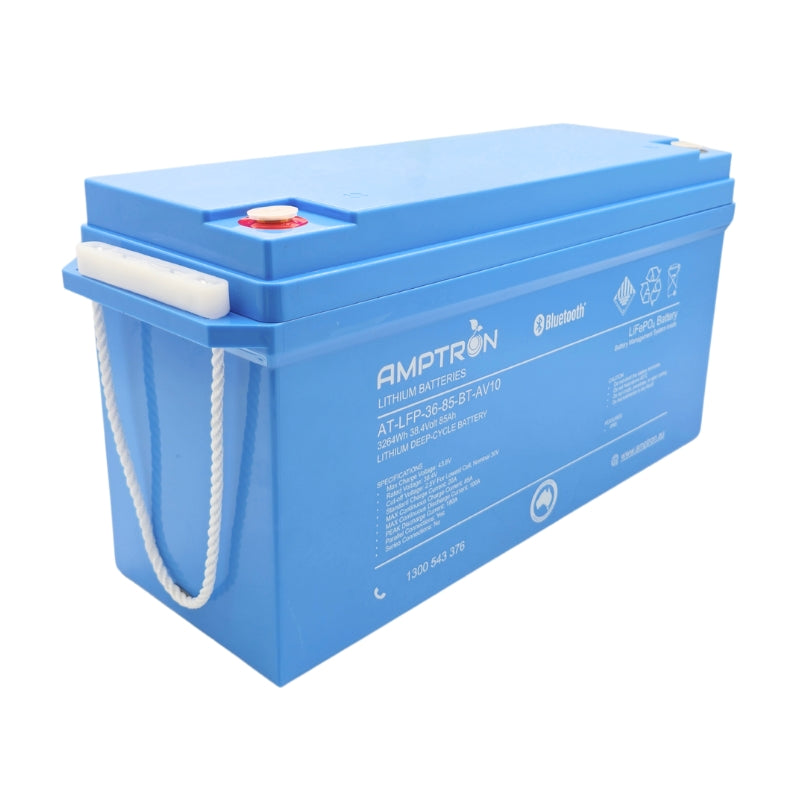

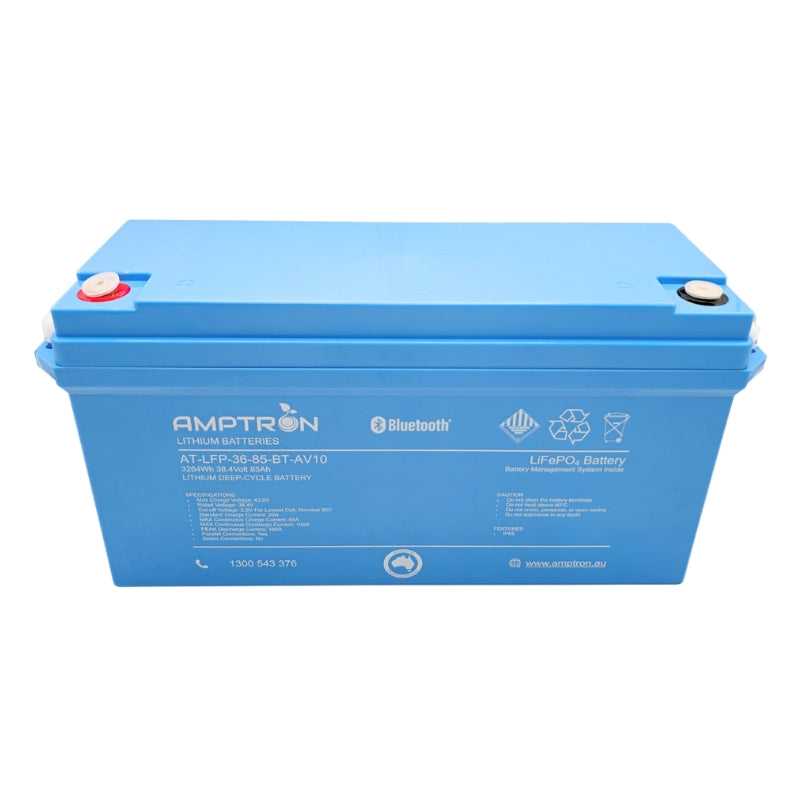

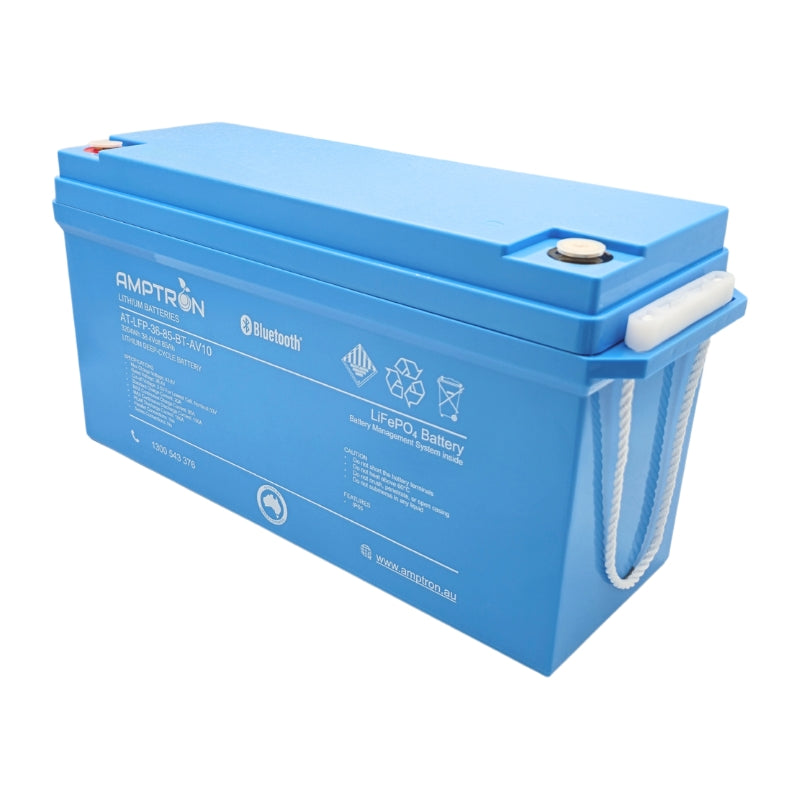

Amptron - AT-LFP-36-85-BT-AV10
36V 85Ah / 100A Continuous Discharge LiFePO4 Battery
36V 85Ah / 100A Continuous Discharge LiFePO4 Battery
Contact us for pricing or to purchase.
Amptron has released a new 36V model this model which is suited to marine and Low Speed electric vehicle (LSV) use cases. This model has been fitted with Bluetooth communications for monitoring SOC, voltages, power consumption and potential error states.
AMPTRON® 36V 85Ah Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 100A and peak discharge current 200A for 5 seconds.
Specifications
|
Model
|
AT-LFP-36-85-BT-AV10
|
36V 85Ah / 100A LiFePO4 Battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-485mm x W-168 x H-240mm
|
|
|
Weight
|
About 28kg
|
|
|
Cell type
|
3.2V 85Ah
|
Prismatic cells
|
|
Battery module
|
12 pcs 3.2V 85Ah cells, 1 parallel and 12 serial
|
|
|
Casing material for single cell
|
Aluminum
|
|
|
Standard capacity（0.2C5A）
|
38.4V 85Ah / 2880Wh
|
|
|
Cycle life
|
> 3000 cycles at 100% Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
38.4V
|
Working voltage per cell: 3.2V
|
|
Max charge voltage
|
43.8V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off volate
|
Nominal 30V
|
Average single discharge voltage per cell: 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Optimum charge current
|
15A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Rapid charging
|
Max. charge current 85A
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
100A
|
1.33C
|
|
Peak discharge current
|
180A
|
2.67C (3 seconds)
|
|
Discharge performance at normal temperature
|
15A (0.2C) ≥ 100％
85A (1C) ≥90％ |
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～65℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 15mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
