Amptron - AT-GLASS-63.8-200AV10
200W High Voltage Glass PERC Half-Cell Mono-Crystalline Solar Panel - 63.8V
200W High Voltage Glass PERC Half-Cell Mono-Crystalline Solar Panel - 63.8V
Couldn't load pickup availability

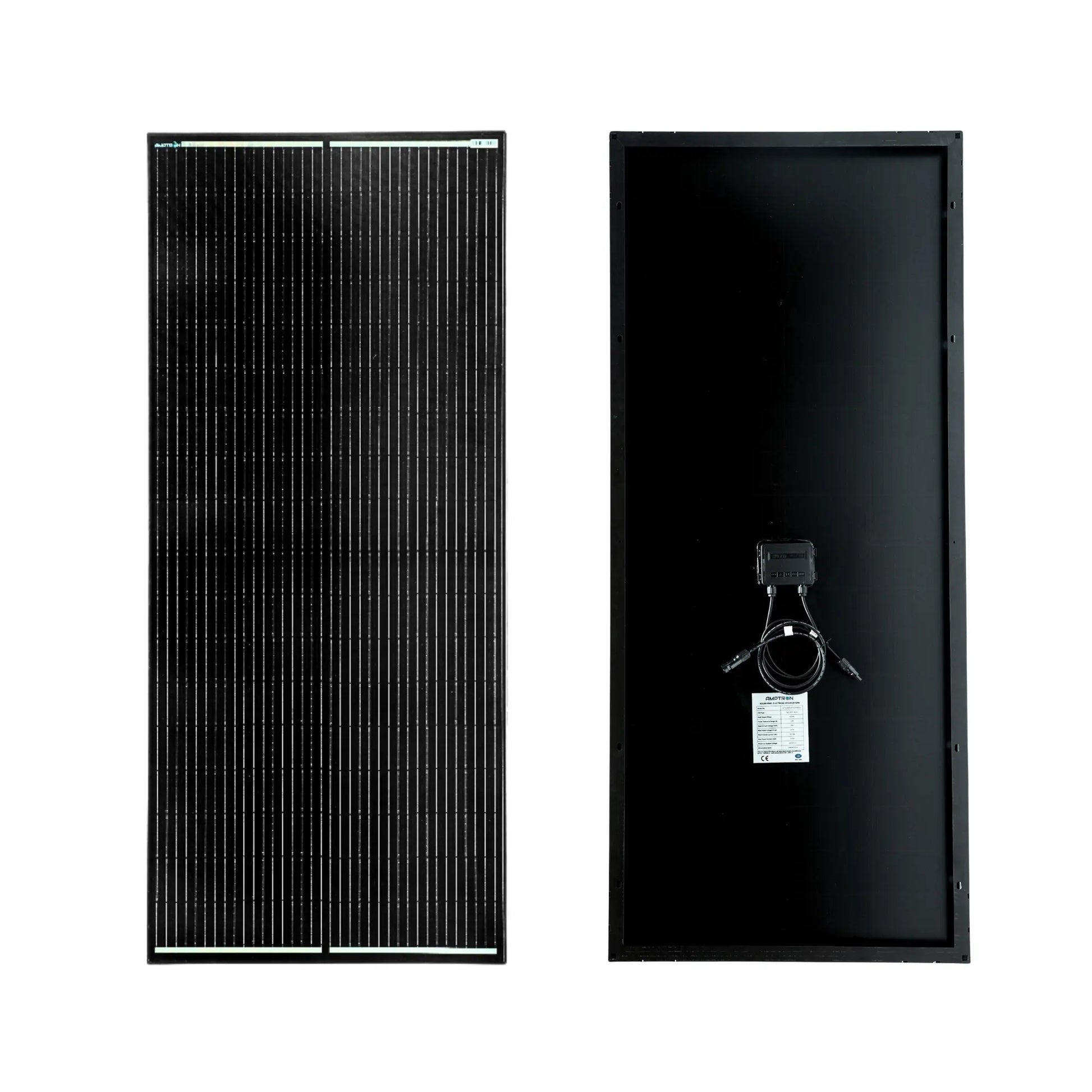

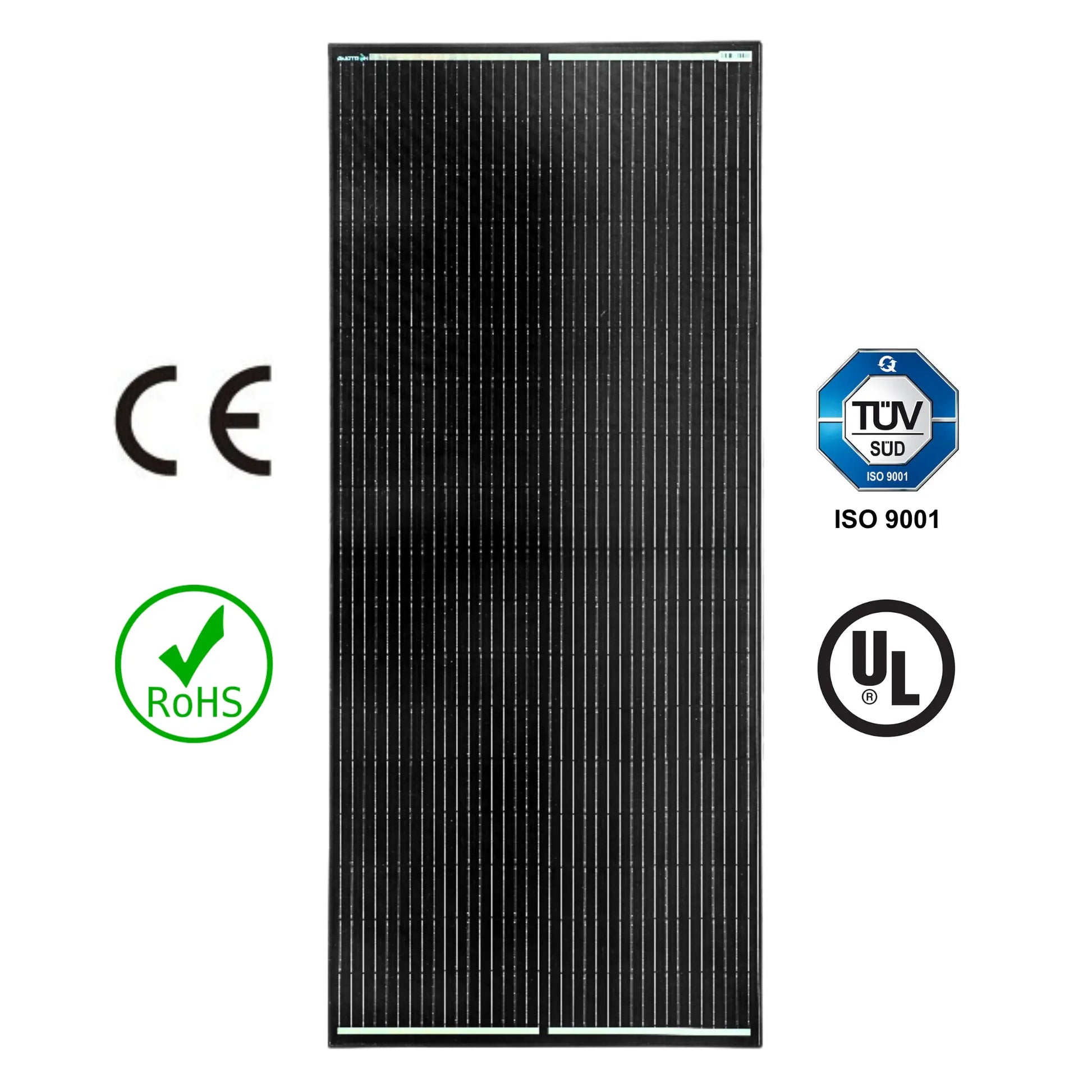

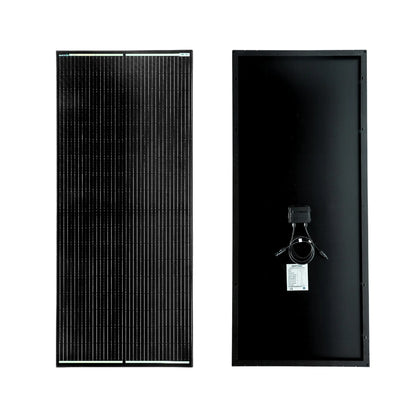

Power your off-grid and high-voltage solar systems with the 200W High Voltage Glass PERC Half-Cell Mono-Crystalline Solar Panel. Designed with advanced half-cut cell technology, this panel delivers excellent efficiency, superior shading tolerance, and consistent performance across a wide range of applications.
With a high operating voltage of 63.8V, it’s perfectly suited for charging 24V, 36V, and 48V battery systems, making it ideal for caravans, motorhomes, boats, cabins, and backup power setups. The robust 35mm black aluminium frame and tempered glass construction ensure long-lasting durability, while the optional aerodynamic mounting kit allows hassle-free installation with improved wind resistance for mobile applications.
Whether you’re travelling across Australia in your RV or building a reliable off-grid power source, this 200W solar panel is engineered for efficiency and built tough for local conditions.
Key Features
- 200W High Voltage Output (63.8V) – Perfect for 24V, 36V, and 48V battery charging
- Half-Cut PERC Technology – Boosts efficiency and provides excellent shading tolerance
- Durable Construction – Tempered glass with 35mm black aluminium frame
- High Cell Efficiency – Up to 22.7% for maximum energy capture
- Lightweight & Strong – Just 9.3kg for easier handling and installation

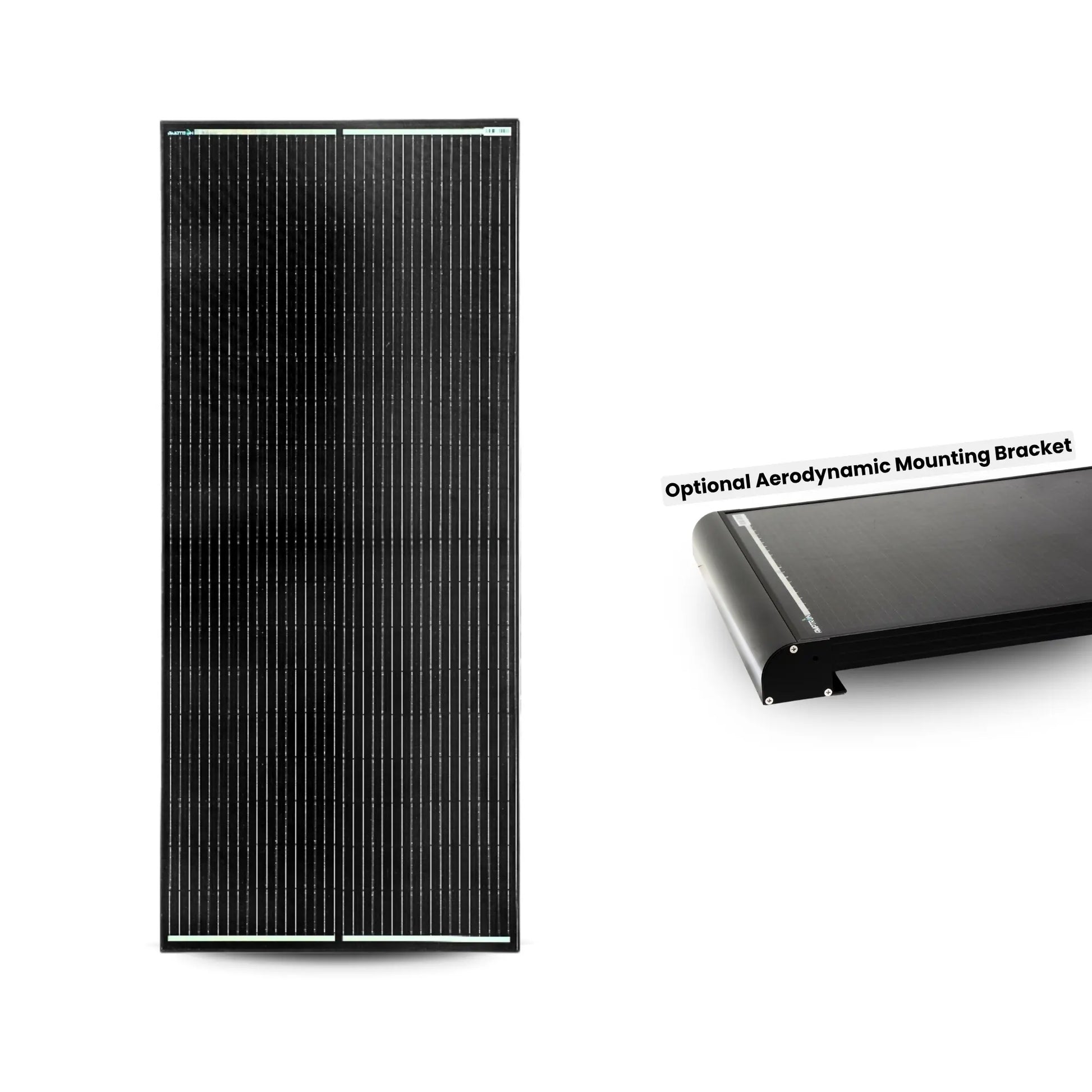

- Optional Aerodynamic Mounting Kit – Improves airflow and efficiency on caravans and motorhomes
- Versatile Applications – Suitable for RVs, boats, cabins, backup systems, and off-grid living

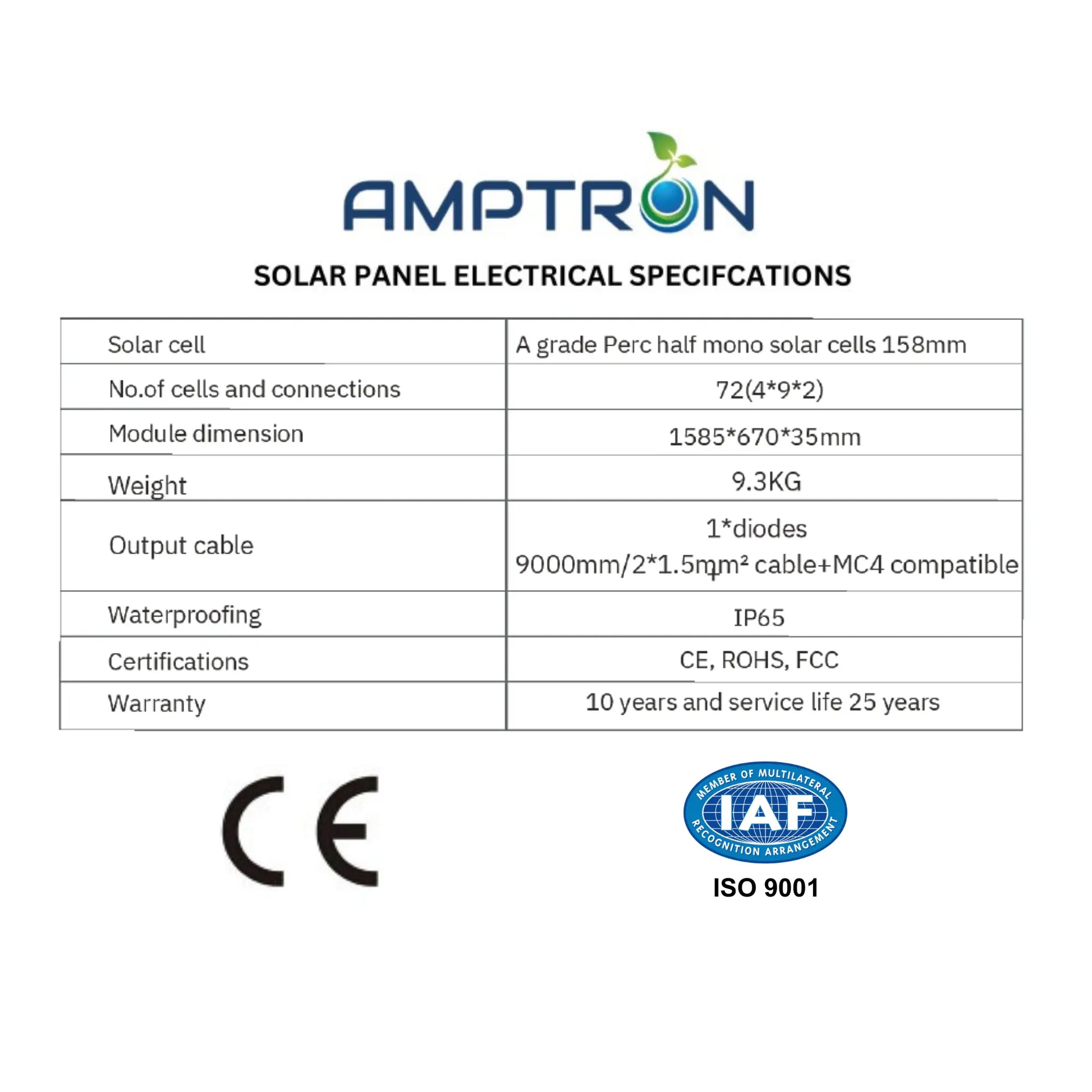

Specifications
Model | AT-GLASS-63.8-200AV10 |
Maximum Power (Pmax) | 200W |
Power Tolerance | ±3% |
Voltage at Max Power (Vmp) | 63.8V |
Current at Max Power (Imp) | 3.14A |
Open Circuit Voltage (Voc) | 74.6V |
Short Circuit Current (Isc) | 3.29A |
Cell Efficiency | 22.7% |
Number of Cells | 112 (4x28) |
Maximum System Voltage | 1000V DC (IEC) |

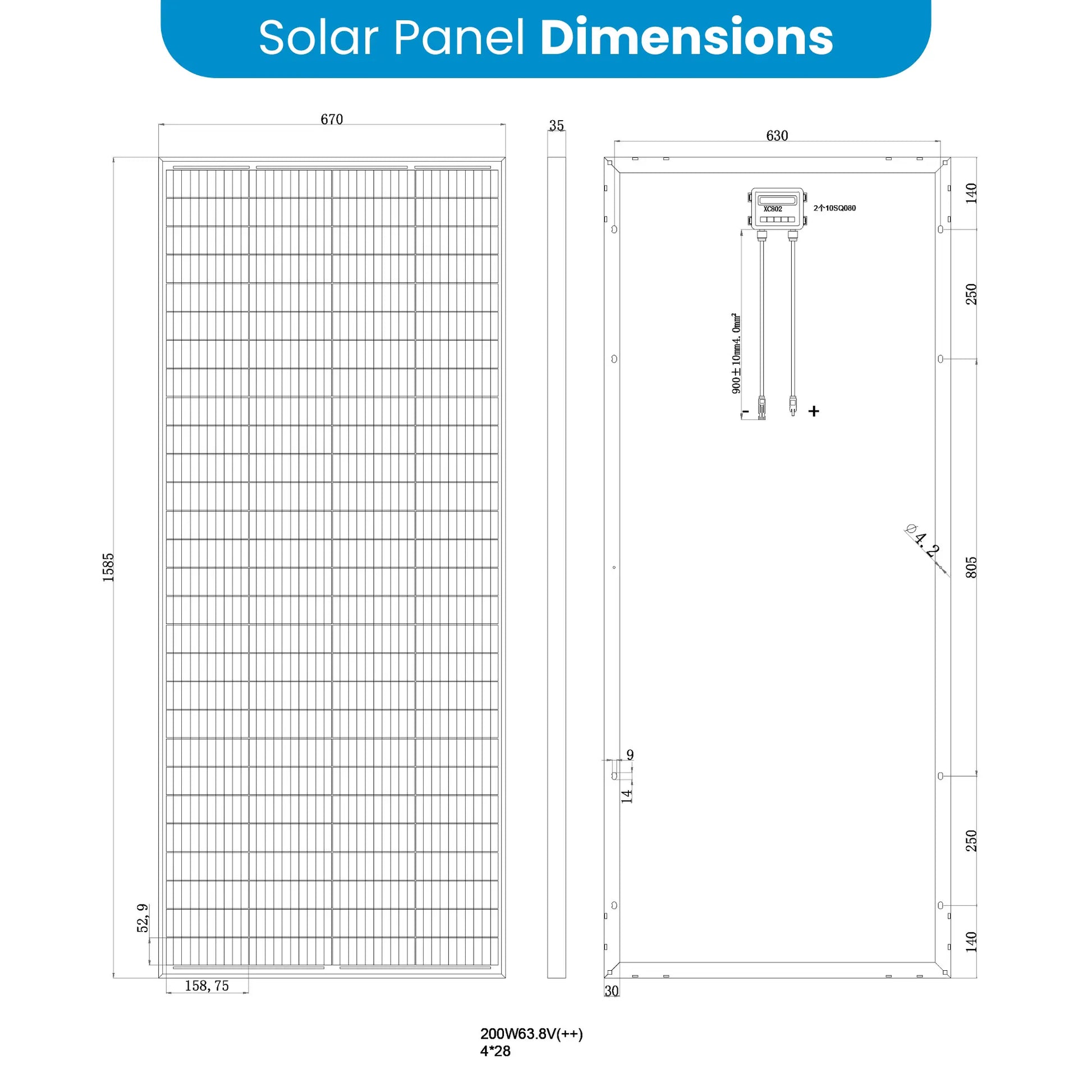

Dimensions (no brackets) | 1585 x 670 x 35 mm |
Dimensions (with brackets) | 1655 x 670 x 35 mm |
Weight | 9.3 kg |
Frame Material | Black Anodised Aluminium (35mm) |
Glass Type | High Strength Tempered Glass |
Junction Box | 900mm x 4mm² 2-core cable with MC4 compatible connectors |
Mounting Option | Aerodynamic mounting kit available |
Applications | RVs, caravans, campers, boats, cabins, off-grid and backup systems |
