Amptron - AT-SOLCHR-AM2420NV01
20 A 12 V/24 V AM MPPT Solar Charge Controller with Bluetooth Monitoring
20 A 12 V/24 V AM MPPT Solar Charge Controller with Bluetooth Monitoring
Couldn't load pickup availability
Optimise your off-grid power setup with the Amptron AM 20 A MPPT Solar Charge Controller, designed for 12 V and 24 V battery systems. Ideal for caravans, RVs, boats, and remote solar applications across Australia, this controller features advanced MPPT technology to maximise energy harvest—offering up to 20% more efficiency compared to PWM controllers.
With built-in Bluetooth connectivity, it allows for wireless monitoring and configuration through a mobile app (Android/iOS). It supports a wide range of battery types including LiFePO₄, and features automatic voltage detection, temperature compensation, 300-day data logging, and robust electronic protection. A fan-free heatsink design ensures quiet operation and durability, even in high-temperature environments.
Key Features
- MPPT Technology – Ultra-fast tracking increases solar charging efficiency by up to 20%

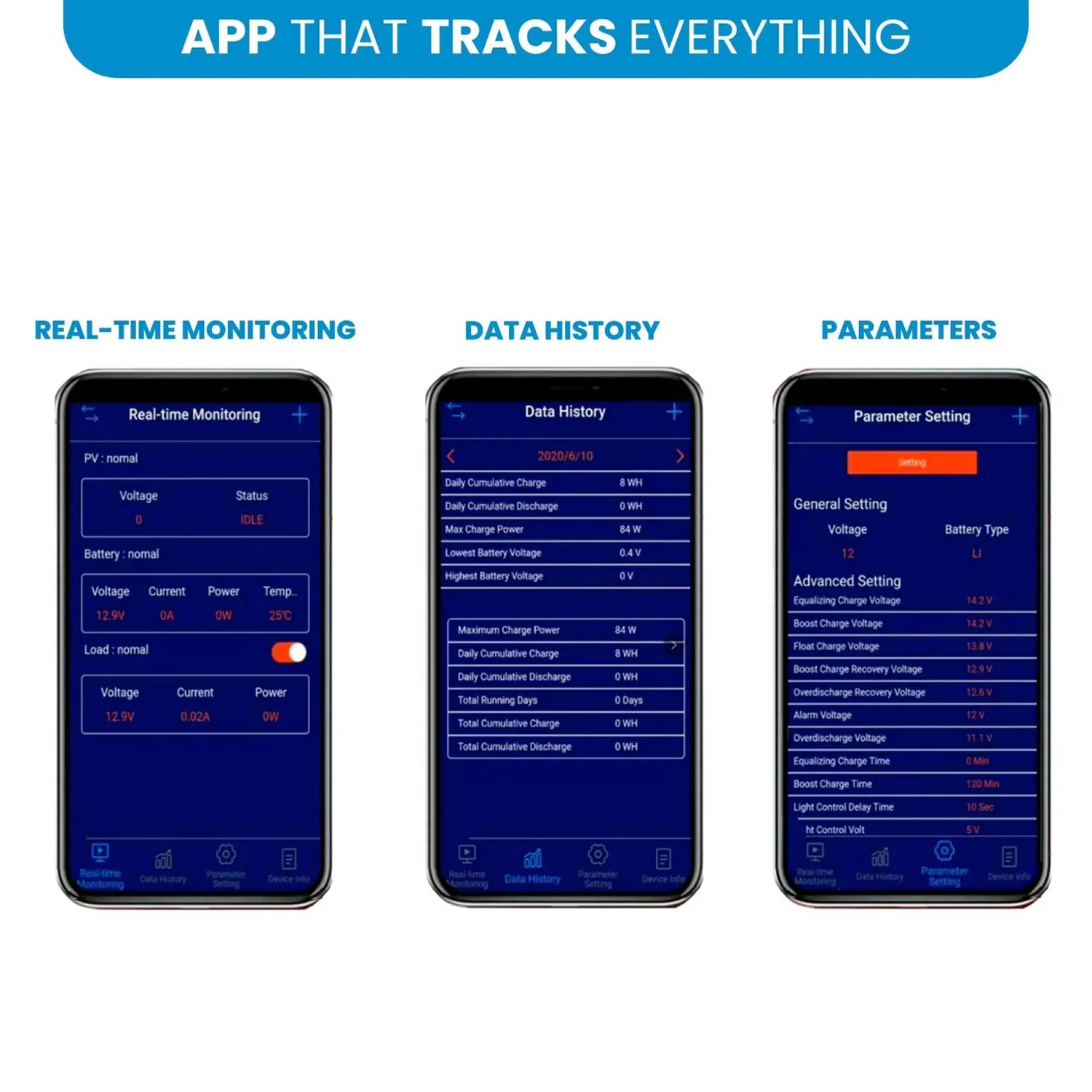

- Built-in Bluetooth – Wireless monitoring and configuration via smartphone app
- Auto Voltage Detection – Automatically recognises 12 V or 24 V system voltage
- Wide Battery Compatibility – Supports LiFePO₄, AGM, Gel, Flooded and custom profiles
- Temperature Compensation – Adjusts charging based on battery temperature to prolong life
- 300-Day Data Logger – Records historical performance for analysis and troubleshooting

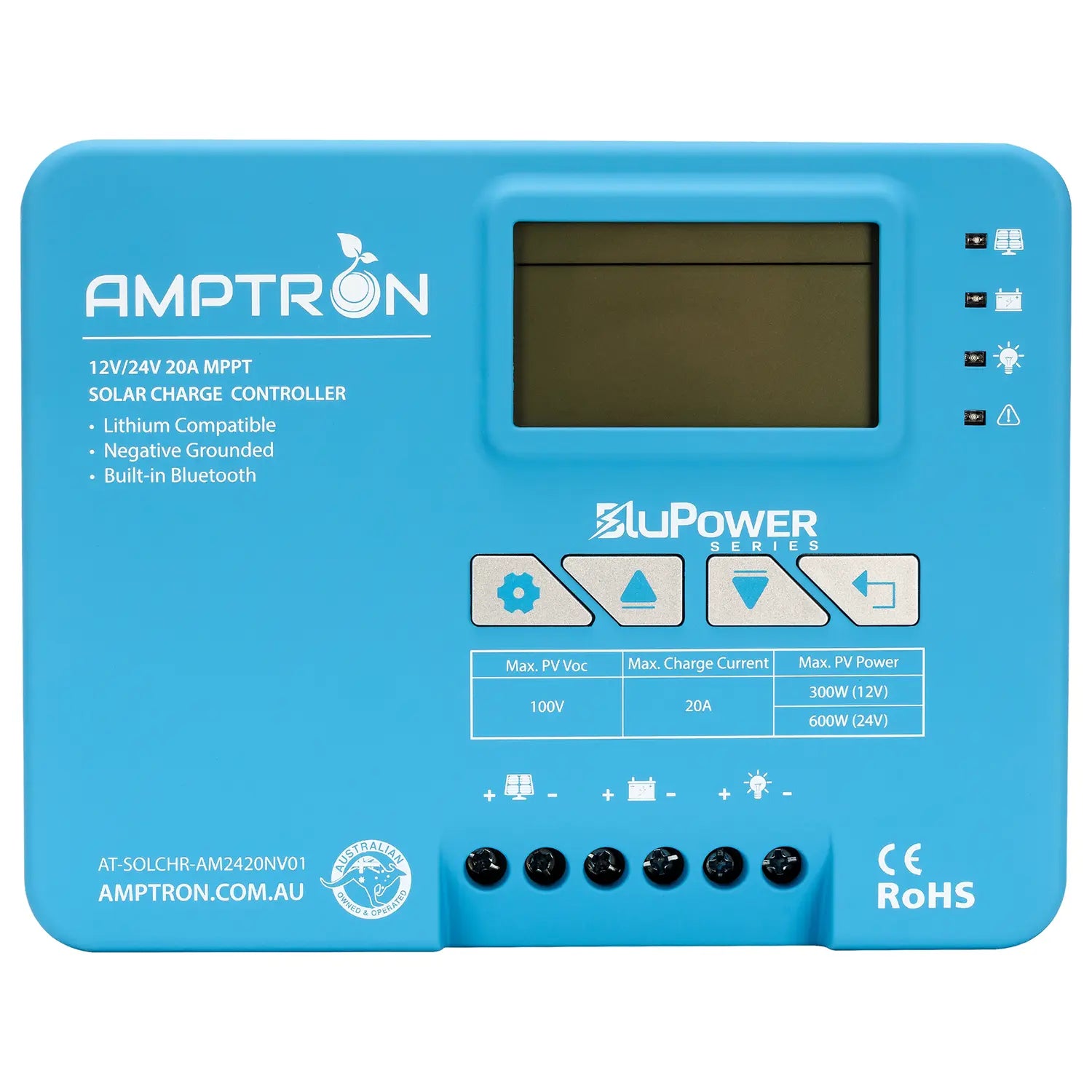

- LCD Display – Real-time status for voltage, current, battery state, and load conditions
- Advanced Protection Suite – Overload, reverse polarity, overcharge, overheating, and short-circuit protection
- RS485 Communication – MODBUS protocol for integration with other systems

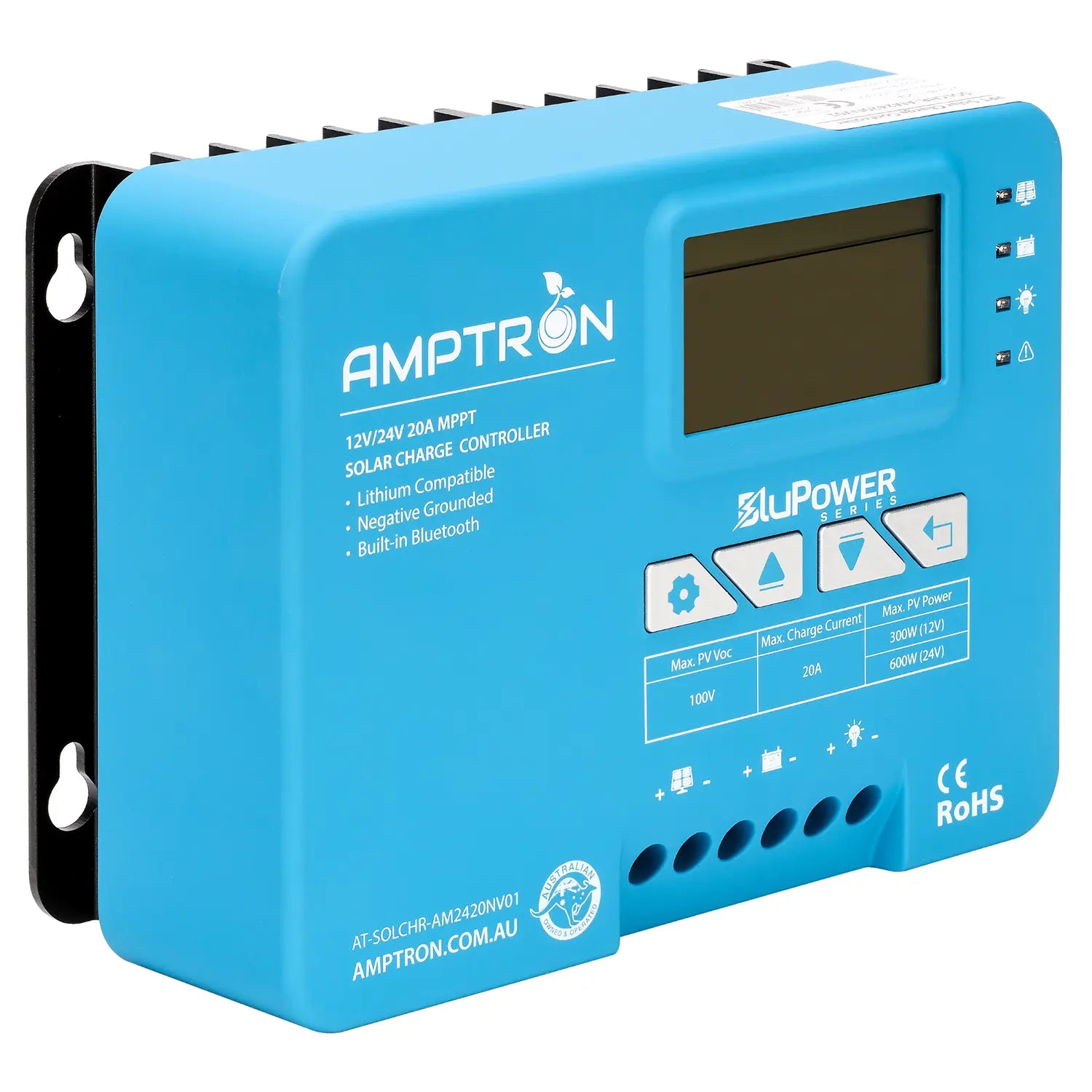

- Fanless Heatsink Design – Quiet operation and extended service life
Specifications
Model | AT-SOLCHR-AM2420NV01 |
System Voltage | 12 V / 24 V (auto detection) |
Rated Charge Current | 20 A |
Maximum PV Input Voltage | < 100 V |
Maximum PV Power | ~300 W @12 V / ~600 W @24 V |
No-Load Power Consumption | ~12 mA (12 V), ~10 mA (24 V) |
Load Output Current | Up to 20 A |
Operating Temp Range | –35 °C to +45 °C |
Protection Rating | IP32 |
Data Logging Capacity | Up to 300 days |
Communication Ports | Bluetooth + RS485 |
Battery Compatibility | LiFePO₄, AGM, Gel, Sealed, Flooded, User-defined |
Temperature Compensation | –3 mV/°C per 2 V cell (adjustable) |
Dimensions (L × W × H) | Approx. 179 × 150 × 70 mm |
Weight | Approx. 1.0 kg |
Mounting Type | Surface mountable with integrated bracket |
Warranty | 2 Years (standard) |
