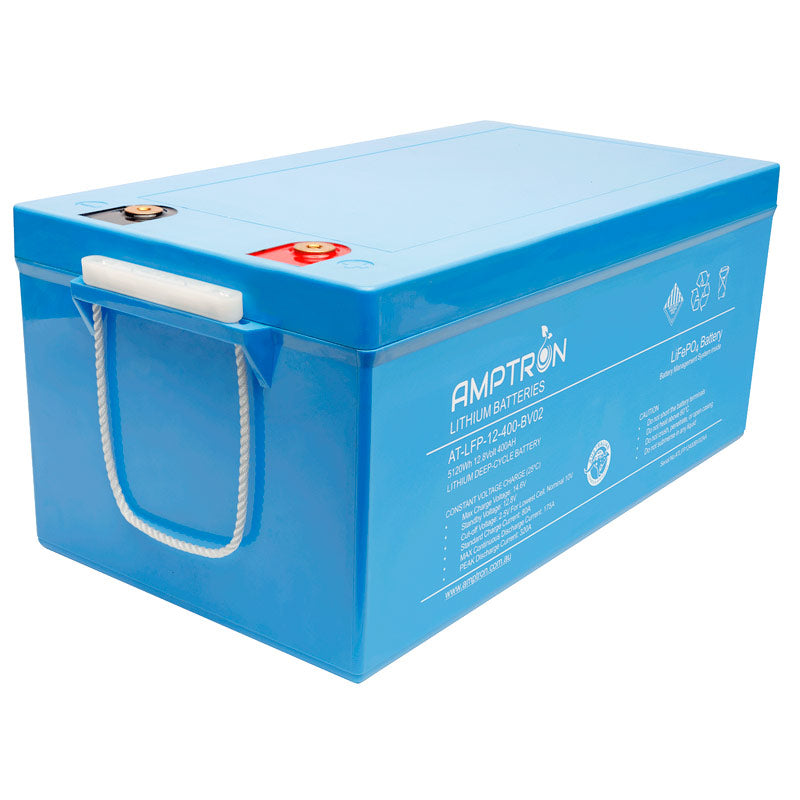

Amptron - AT-LFP-12-400DV01
12V 400Ah / 300A Continuous Discharge LiFePO4 Battery
12V 400Ah / 300A Continuous Discharge LiFePO4 Battery
Contact us for pricing or to purchase.
AMPTRON® 12V 400Ah / 300A Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 300A and peak discharge current 600A for 1 second.
Specifications
|
Model
|
AT-LFP-12-400DV01
|
12V 400Ah / 300A Continuous Discharge Lithium LiFePO4 battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-520mm x W-268mm x H-228mm
|
|
|
Weight
|
38kg
|
|
|
Cell type
|
3.2V 105Ah Prismatic cells
|
|
|
Battery module
|
16 pcs 3.2V 105Ah cells, 4 cells in parallel & 4 cells in series
|
|
|
Casing material for single cell
|
Aluminium
|
|
|
Standard capacity（0.2C5A）
|
420Ah / 5376Wh
|
|
|
Cycle Life
|
2000 cycles at 100% Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
12.8V
|
Working voltage per cell: 3.2V
|
|
Max Charge voltage
|
14.6V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off voltage
|
10V-11.2V |
Cut-off is triggered when the first cell reaches 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Standard charge current
|
80A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Optimum charge current range
|
80A (0.2C) to 160A (0.4C)
|
Cell max voltage < 3.9V
|
|
Rapid charging
|
Max. charge current 300A (0.75C)
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
300A
|
0.75C, cell min voltage> 2.0v
|
|
Peak discharge current
|
600A
|
1.5C (1 second)
|
|
Discharge performance in normal temperature
|
80A (0.2C) ≥ 100%
300A (0.43C) ≥90％ |
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～65℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
