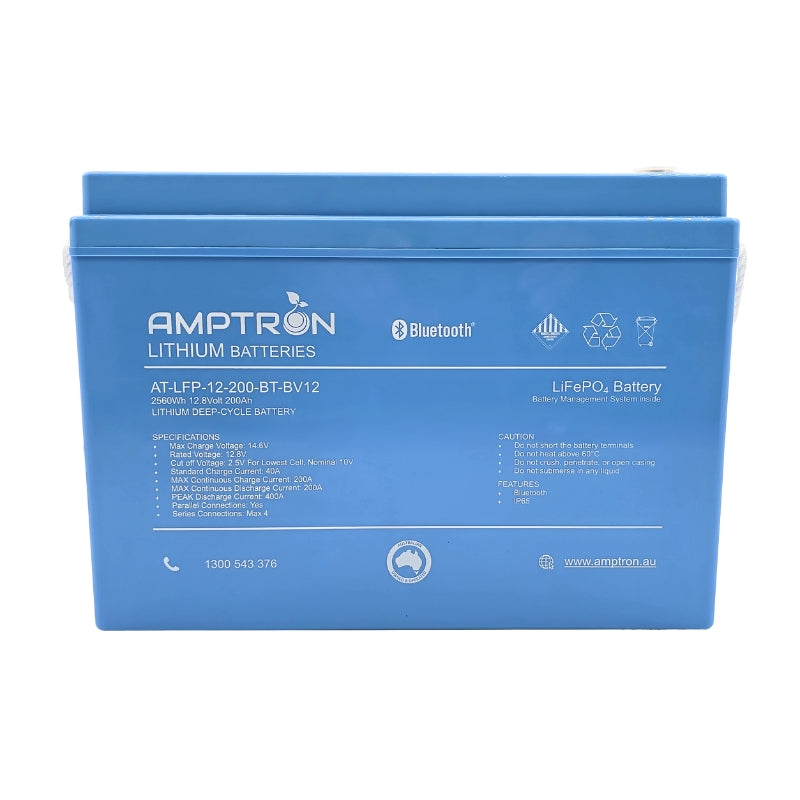

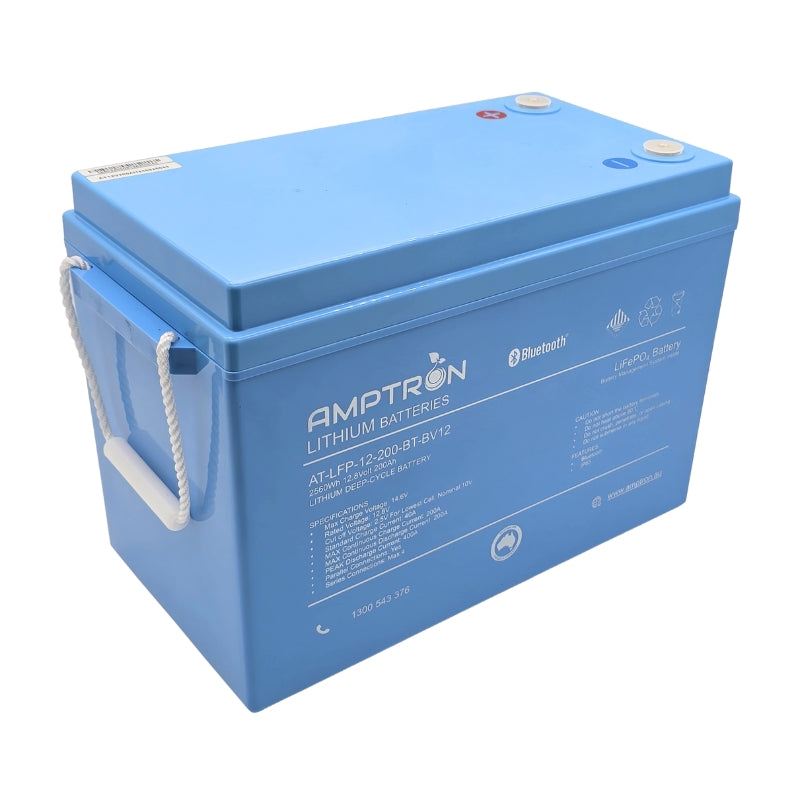

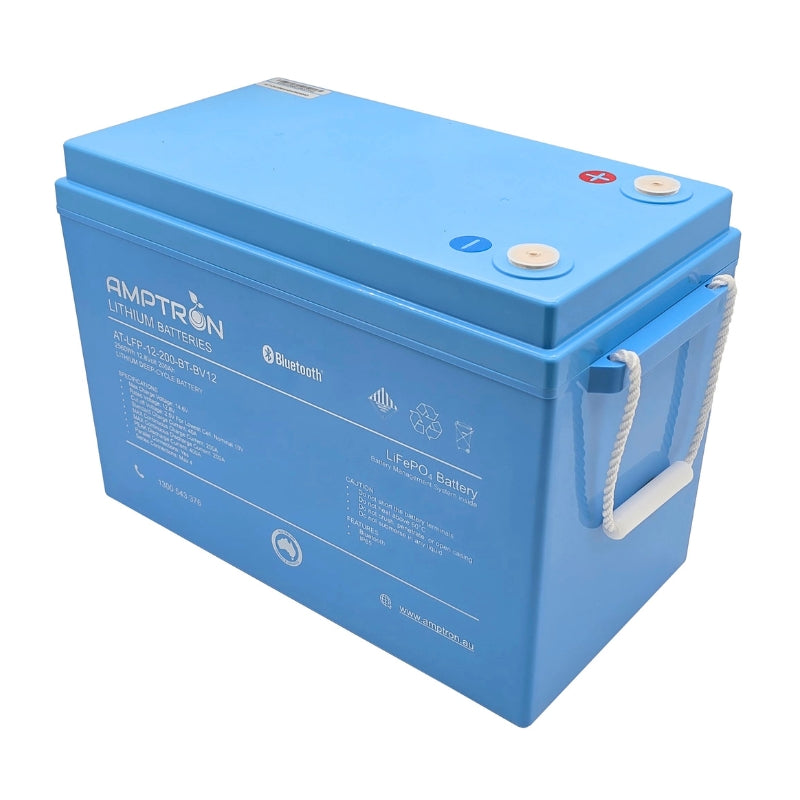

Amptron - AT-LFP-12-200-BT-BV12
12V 200Ah / 200A Continuous discharge LiFePO4 Battery with Bluetooth Connectivity
12V 200Ah / 200A Continuous discharge LiFePO4 Battery with Bluetooth Connectivity
Contact us for pricing or to purchase.
AMPTRON® 12V 200Ah / 200A Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 200A and peak discharge current 400A for 5 seconds.
Specifications
|
Model
|
AT-LFP-12-200-BT-BV12
|
12V 200Ah / 200A Continuous Discharge Lithium LiFePO4 battery with Bluetooth Connectivity
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-370mm x W-190mm x H-245mm
|
|
|
Weight
|
22kg
|
|
|
Cell type
|
3.2V 100Ah Prismatic cells
|
|
|
Battery module
|
8 pcs 3.2V 100Ah cells, 2 parallel strings of 4 cells in series
|
|
|
Casing material for single cell
|
Aluminium
|
|
|
Standard capacity（0.2C5A）
|
200Ah / 2560Wh
|
|
|
Cycle life
|
> 2000 cycles at 100% Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
12.8V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
14.2 – 14.6V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off volate
|
2.5V for lowest cell, nominal 10V
|
Cut-off is triggered when the first cell reaches 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Standard charge current
|
40A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Optimum charge current range
|
40A (0.2C) to 100A (1C)
|
Cell max voltage < 3.65V
|
|
Rapid charging
|
Max. charge current 200A (1C)
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
200A
|
1C
|
|
Peak discharge current
|
400A
|
2C (5 seconds)
|
|
Discharge performance in normal temperature
|
40A (0.2C) ≥ 100%
200A (1C) ≥90％ |
|
|
Operating temperatures
|
Charge 0℃～55℃ (Ambient)
Discharge -20℃～60℃ (Ambient) Storage -20℃～40℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 45mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connectivity
|
Bluetooth
|
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
