LV Automotive - LV5384

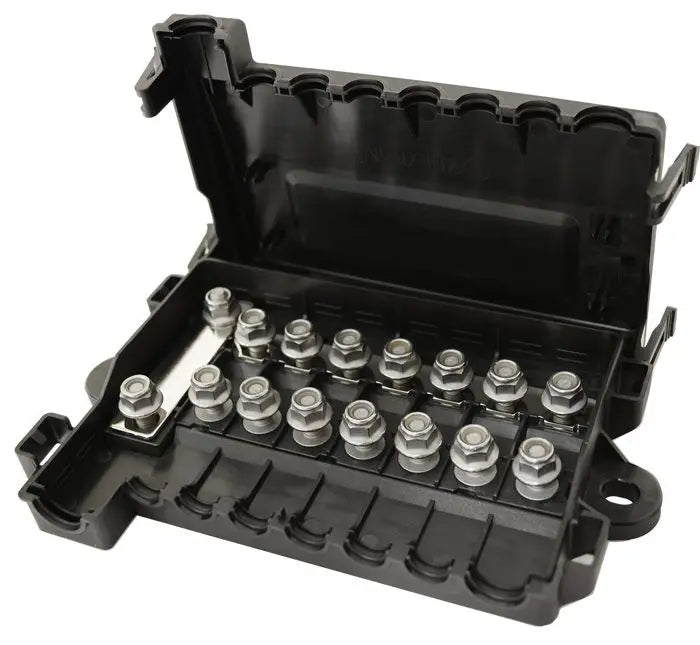

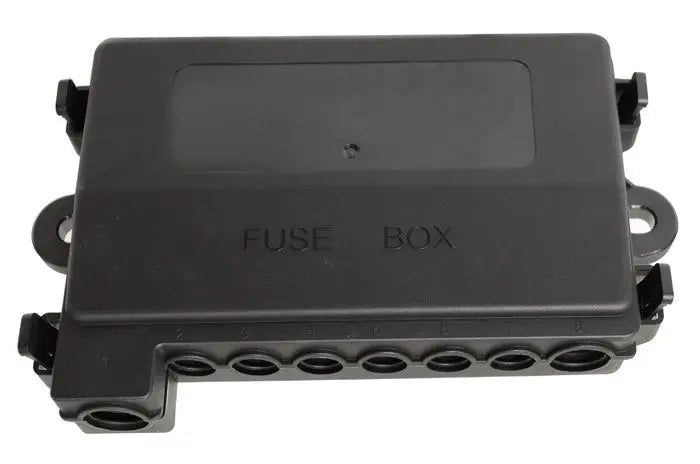

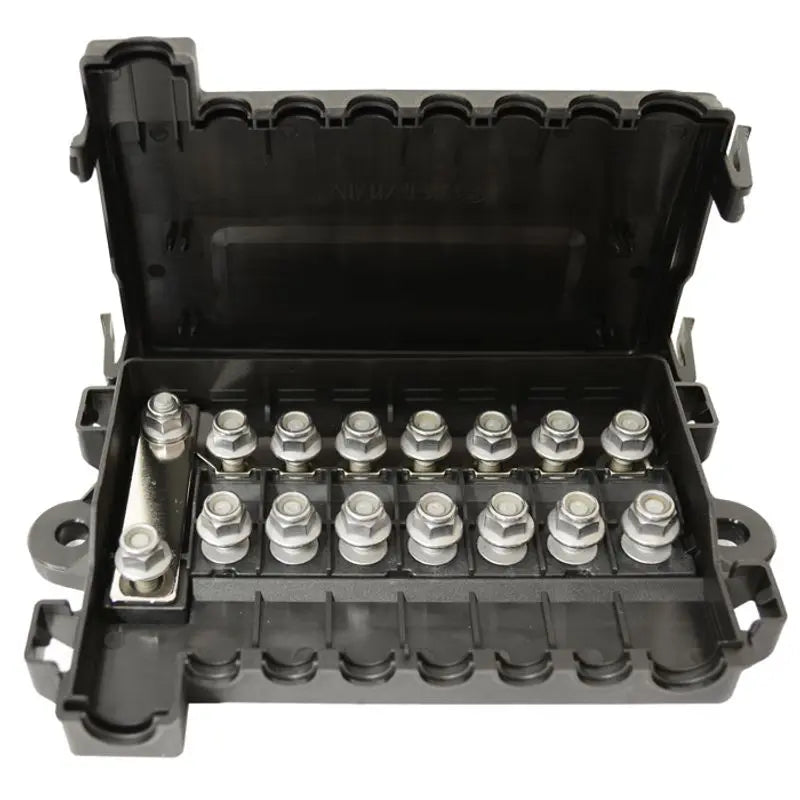

7 Way MIDI Fuse Box with Main Mega Fuse - 150A/CCT 6mm Stud (LV5384)
Ideal for dual battery systems, 4WD builds, caravans, marine setups and any installation requiring organised multi-circuit power distribution.
Regular price
$104.95 AUD
Regular price
Sale price
$104.95 AUD
Unit price
/
per
FREE shipping Australia-wide
- Clean, centralised power distribution for complex setups
- Handles high current loads with ease
- Built tough for harsh automotive and marine environments
- Simplifies wiring and improves system reliability
The LV5384 7 Way MIDI Fuse Box with Main Mega Fuse is a high-capacity power distribution solution designed for modern 12V and 24V electrical systems. Featuring seven MIDI fuse circuits and a dedicated main MEGA fuse input, it provides clean, organised and protected power distribution from a single point.
Built for demanding automotive, 4WD and marine applications, each circuit supports up to 150A, making it suitable for running multiple accessories including lighting, compressors, fridges and auxiliary systems. The integrated MEGA fuse slot allows for a single high-current input feed, protecting the entire system at the source.
Constructed with a durable PA66+GF30 housing and copper alloy busbar, the LV5384 ensures reliable conductivity and long-term durability. The compact design with a hinged cover allows for neat installations while protecting connections from dirt and accidental contact.
Key Features
- 7 way MIDI fuse distribution block
- Integrated main MEGA fuse slot
- 150A per circuit capacity
- 6mm (M6) stud terminals
- Copper alloy busbar for efficient current flow
- Durable PA66+GF30 housing
- Hinged cover for protection and easy access
- Suitable for 12V and 24V systems (up to 58V)
- Compact design for clean installations
Specifications
| Product Code | LV5384 |
| Product Type | MIDI Fuse Box with Main Mega Fuse |
| Number of Circuits | 7 |
| Main Fuse Type | MEGA Fuse |
| Circuit Fuse Type | MIDI |
| Voltage Rating | Up to 58V |
| Current Rating | 150A per circuit |
| Stud Size | M6 (6mm) |
| Busbar Material | Copper alloy |
| Housing Material | PA66+GF30 |
| Stud Material | Zinc plated steel |
| Mounting Hole | 8mm |
| Operating Temperature | -40°C to 125°C |

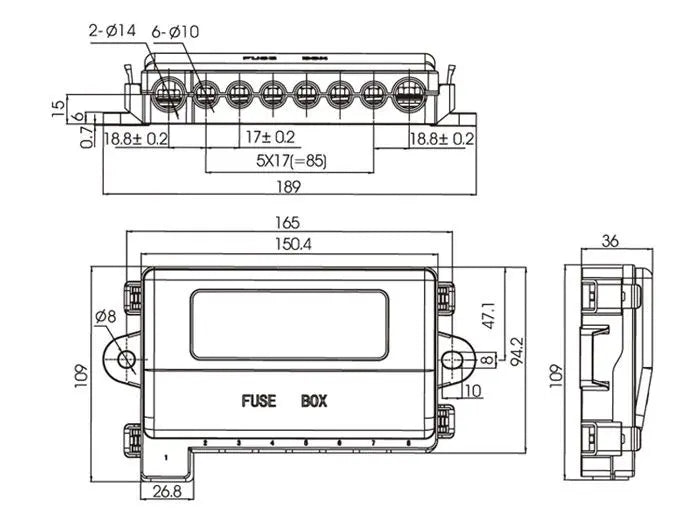

| Dimensions | 165 x 109 x 36 mm |
| Unit of Measure | Each |
Share
What is the purpose of the main MEGA fuse?
What is the purpose of the main MEGA fuse?
It protects the entire system by acting as a primary fuse for the incoming power supply.
What can each circuit handle?
What can each circuit handle?
Each MIDI fuse circuit can handle up to 150A, depending on fuse selection and wiring.
What is this fuse box typically used for?
What is this fuse box typically used for?
It’s used to distribute power from a main battery to multiple accessories like fridges, lights, compressors and inverters.
Is this suitable for dual battery systems?
Is this suitable for dual battery systems?
Yes. It’s ideal for dual battery and auxiliary power setups.
What type of fuses does it use?
What type of fuses does it use?
It uses MIDI fuses for each circuit and a MEGA fuse for the main input.
Can this be used in marine environments?
Can this be used in marine environments?
Yes. It’s designed to handle harsh conditions and is suitable for marine and off-road applications.
