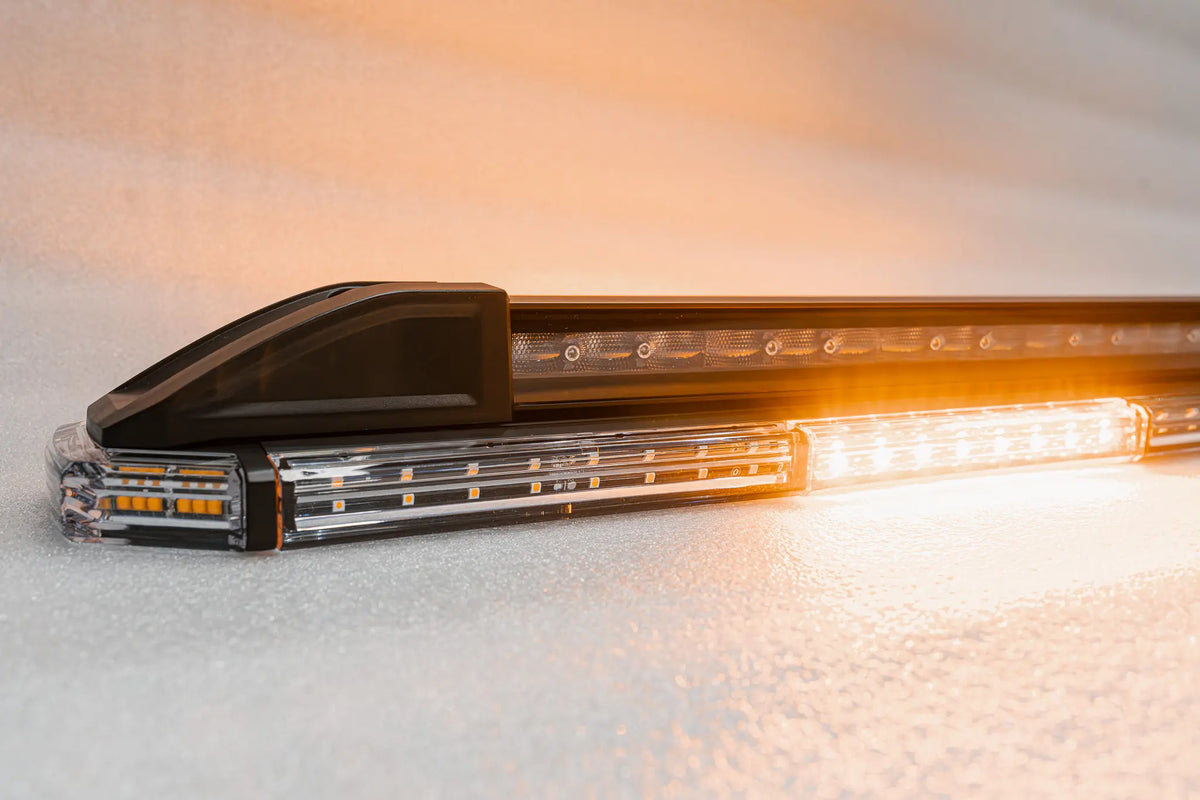

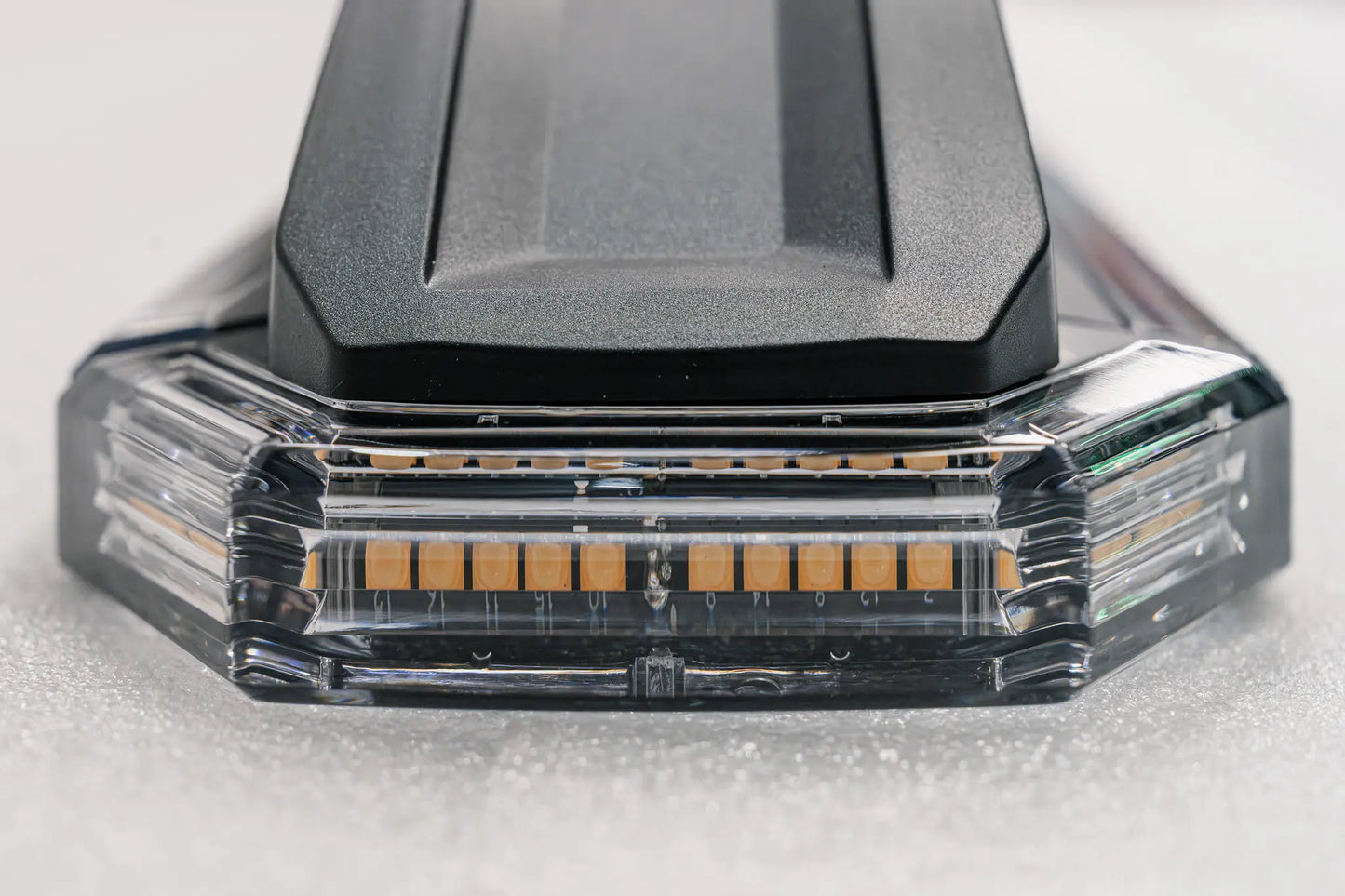

48" Double Decker Mine Spec LED Warning Light Bar - 1200mm Heavy Duty
Ideal for mining contractors, civil construction fleets, site supervisors, infrastructure operators and heavy equipment service providers requiring mine-compliant vehicle warning systems.
Regular price
$1,695.00 AUD
Regular priceSale price
$1,695.00 AUD
Unit price/ per
Sale
Tax included.
Shipping calculated at checkout.
Built for harsh Australian mining conditions
Designed to meet demanding site visibility standards
Heavy-duty commercial mounting system
Fast Australia-wide delivery
Expert advice from the Battery Force team
The 48" Double Decker Mine Spec LED Warning Light Bar is engineered for serious site compliance and maximum visibility in high-risk environments. Designed specifically for mining, civil, infrastructure and heavy contracting operations, this heavy-duty light bar delivers powerful 360° warning output with integrated multi-function signalling.

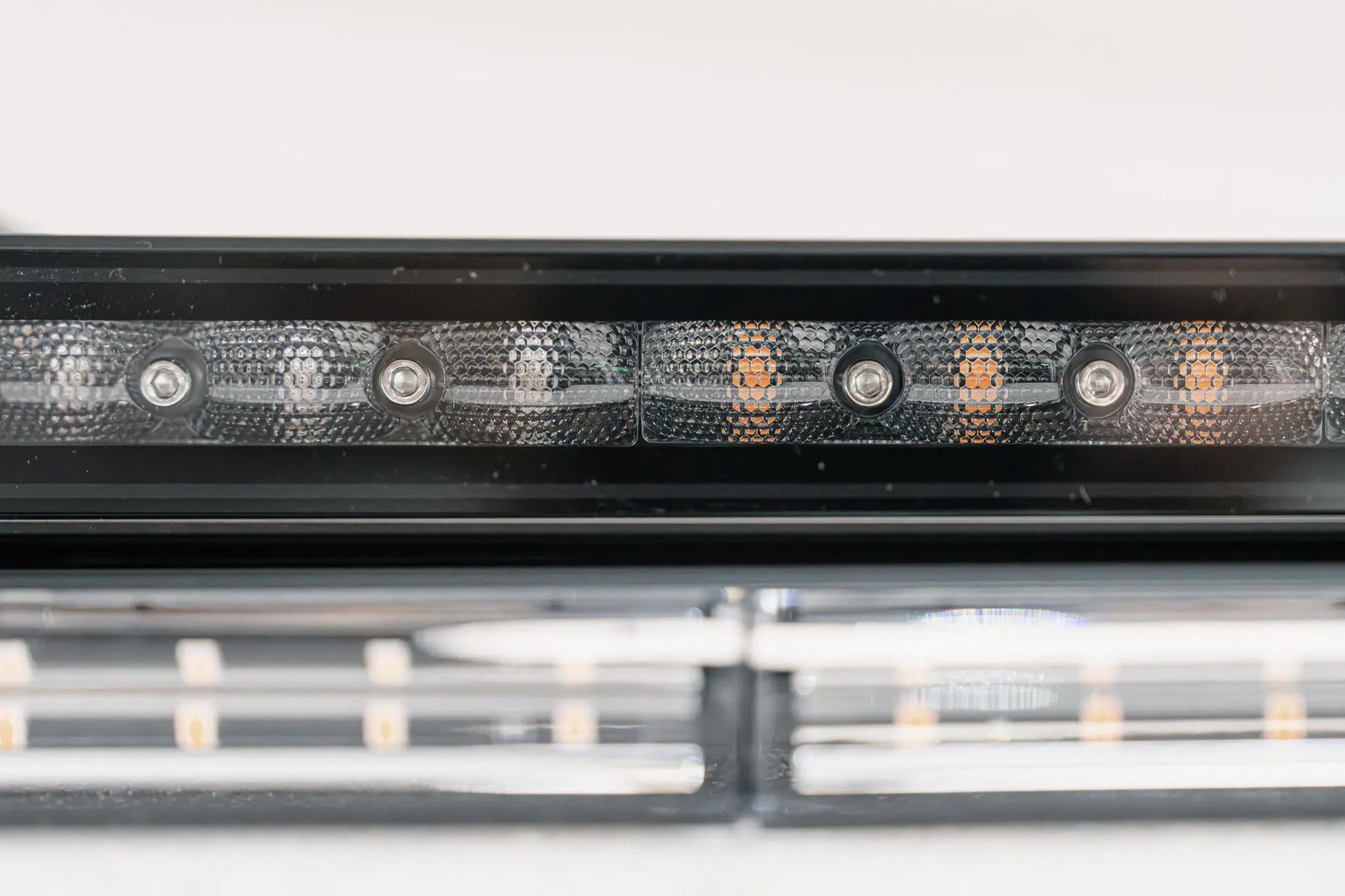

At 1200mm wide, this dual-layer light bar provides exceptional presence on utes, service trucks, water carts and site vehicles operating under strict mine safety standards. With integrated tail, brake, indicator and reverse functions, plus front and rear amber warning modules and forward-facing spot light capability, this unit is built for full-site operational compliance.
Featuring 19 selectable flash patterns - including R65-compliant sequences, arrow directional modes and steady-on operation - this bar allows you to meet varying mine and project specifications without changing hardware. Built to withstand vibration, dust, high-pressure washdowns and harsh Australian conditions, it’s a serious piece of safety equipment for contractors who can't afford downtime or compliance issues.
If your vehicles operate in Tier 1 mining environments or civil infrastructure projects, this light bar delivers the visibility, durability and professionalism required on modern Australian worksites.
Available Australia-wide from Battery Force with fast dispatch and expert technical support.
Key Features
48” (approx. 1200mm) double deck LED warning light bar
Mine spec configuration for high-compliance environments

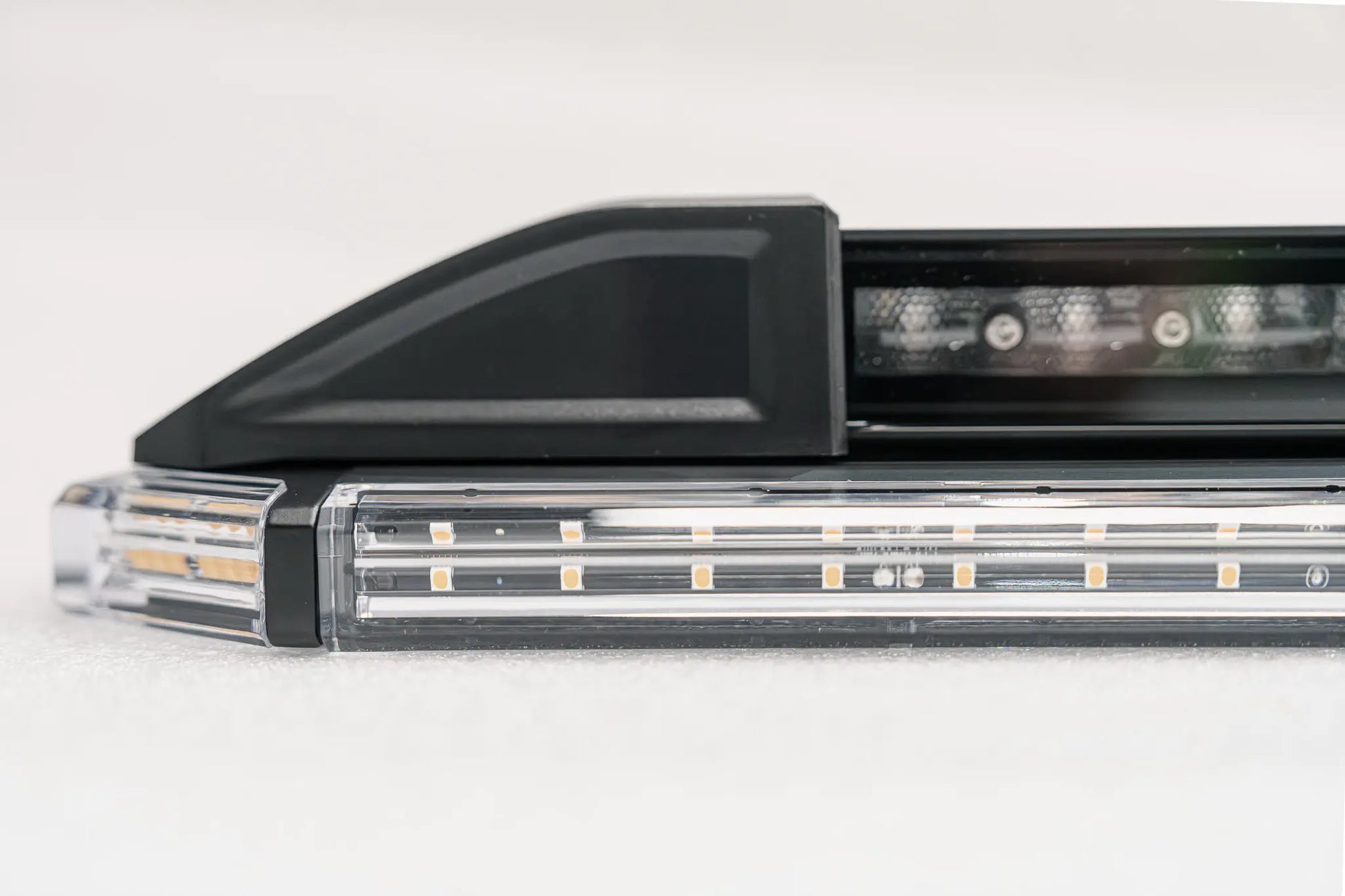

Dual-layer design for enhanced visibility and presence

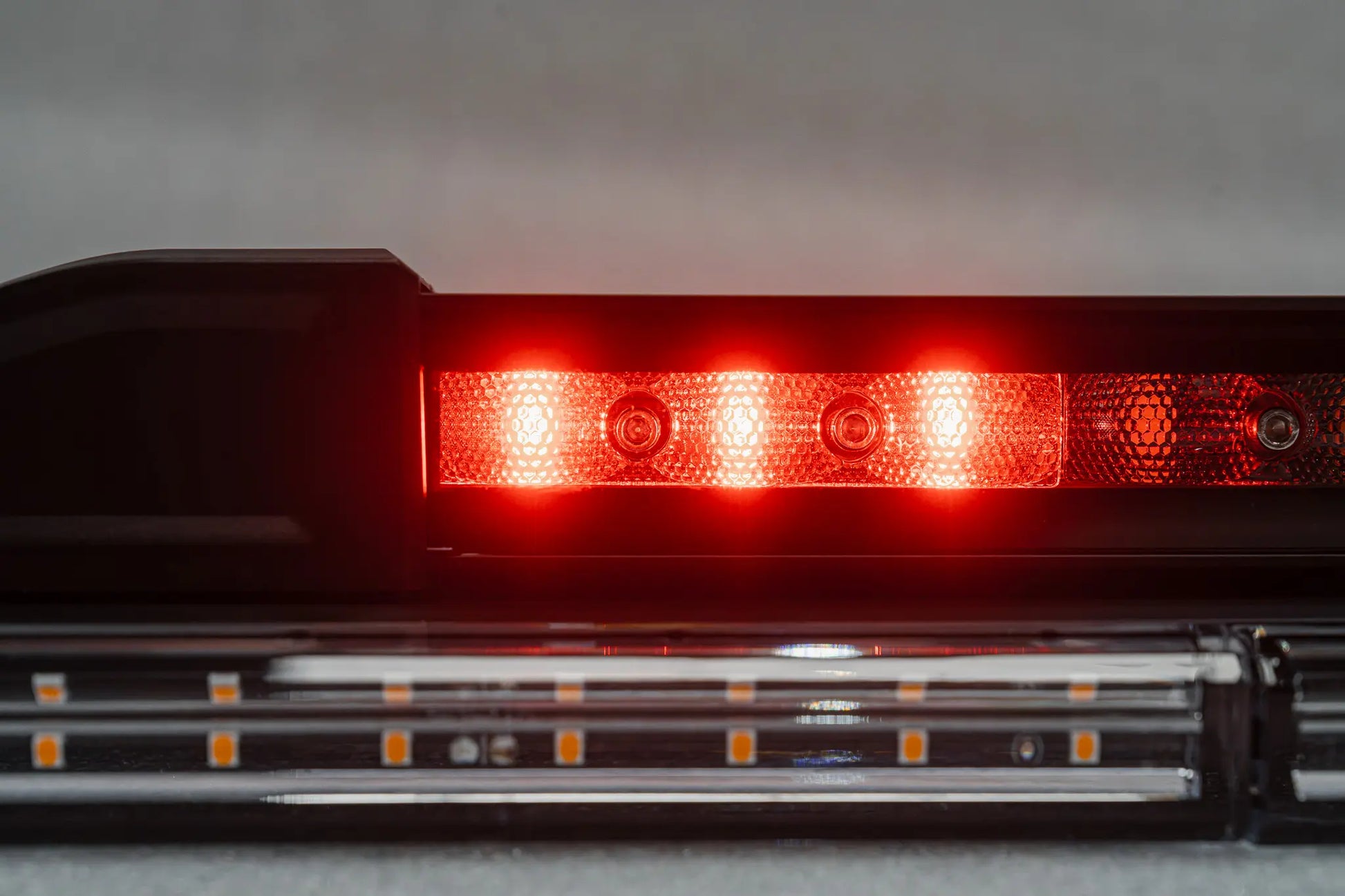

Integrated tail, brake, left/right indicator and reverse lights
Front and rear amber warning modules

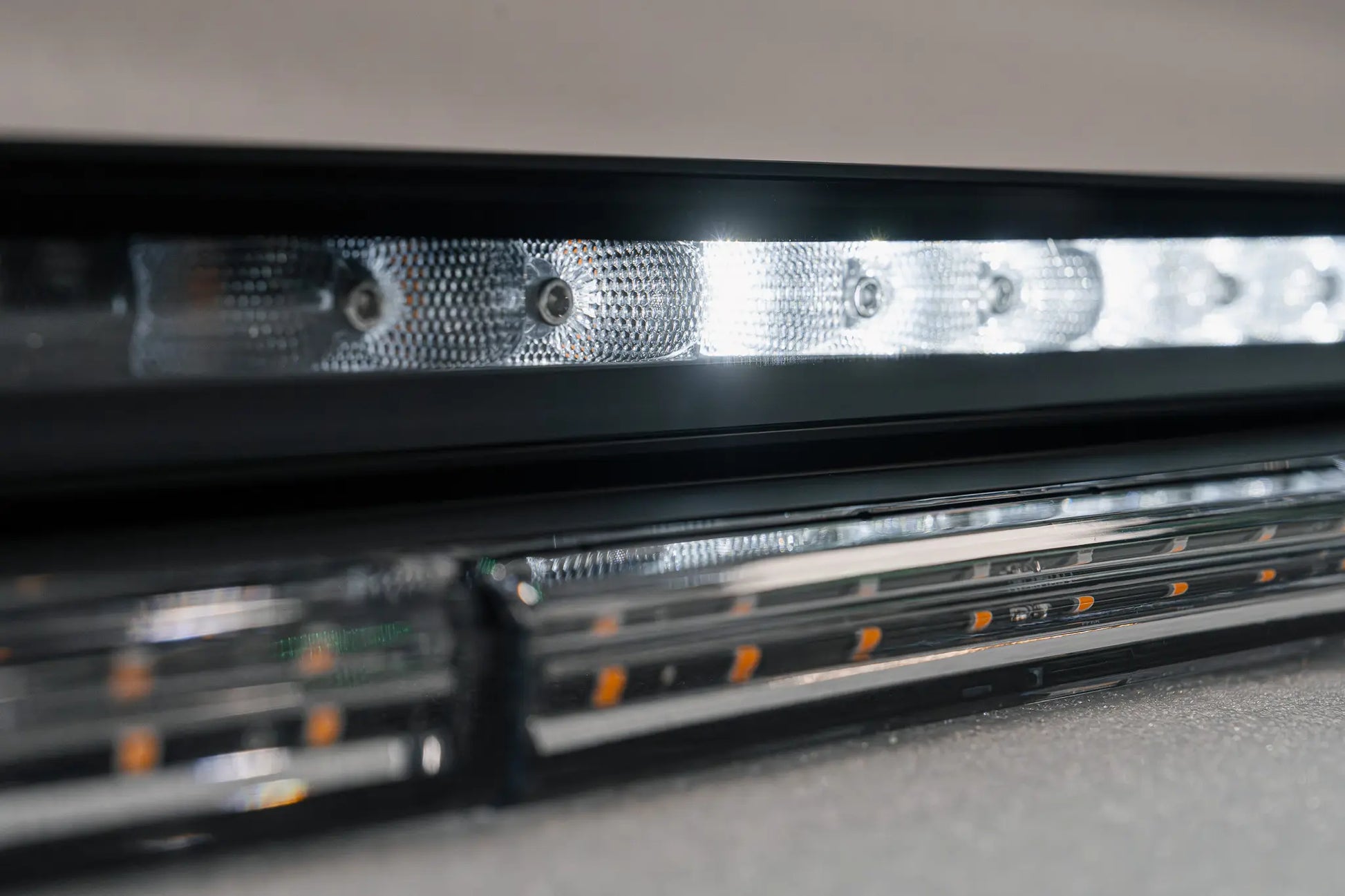

Forward-facing spot light function
19 selectable flash patterns including R65 sequences
Heavy-duty mounting system for commercial vehicles
Designed for harsh mining and civil conditions
Specifications
Light Bar Length
48” (Approx. 1200mm)
Overall Length
1207.4 ± 2.5 mm
Mounting Width
1184.7 ± 2 mm
Height
Approx. 110 mm
Depth
Approx. 107 mm
Configuration
Double Decker LED
Warning Colour
Amber
Integrated Functions
Tail, Brake, Indicators, Reverse
Flash Patterns
19 Selectable Modes
Compliance Modes
R65 & ICAO Type C&D patterns included
Application
Mining, Civil, Heavy Contracting
Warning Flash Pattern Modes
The unit includes 19 selectable sequences, including:
Fast Single Flash (R65)
Single Flash (CAT13)
Slow Single Flash (ICAO Type C&D)
Double & Quad Flash (R65)
Alternating Left/Right Patterns
Triple Flash Sequences
Directional Arrow Modes (Left, Right, Centre-Out)
Accumulation & Combination Modes
Steady-On Mode
This range ensures adaptability to varying site requirements across WA and national mine operations.
Share
Is this suitable for WA mine site compliance?
Yes. It includes R65 flash sequences and directional arrow functions commonly required on Tier 1 and Tier 2 mining operations. Always confirm site-specific requirements.
Does it include brake and indicator functions?
Yes. The bar integrates tail, brake, left and right indicator, and reverse lighting for full rear signalling capability.
Is it suitable for service bodies and fleet utes?
Absolutely. It is ideal for Hilux, Ranger, BT-50, LandCruiser, Isuzu and similar mine-spec fleet builds.
How many flash patterns are included?
There are 19 selectable warning sequences including R65, directional arrow and steady-on modes.
Is professional installation recommended?
Yes. For mine compliance and proper integration with vehicle systems, professional auto electrical installation is strongly recommended. Contact us today to check availability and book in.
