Powertech - SZ1906
4-Way IP66 Marine Switch Panel – SZ1906
4-Way IP66 Marine Switch Panel – SZ1906
Couldn't load pickup availability

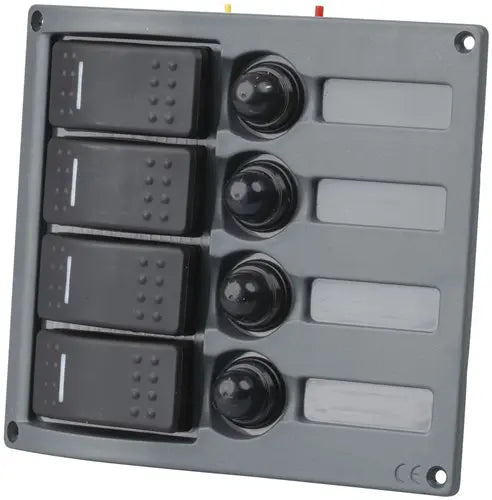

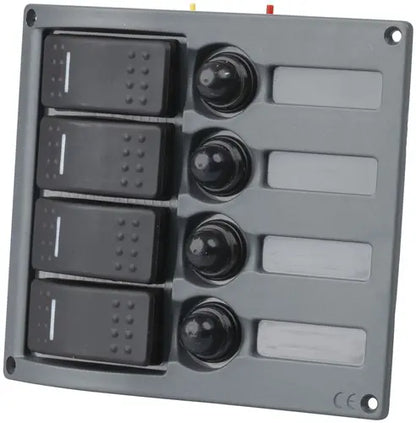

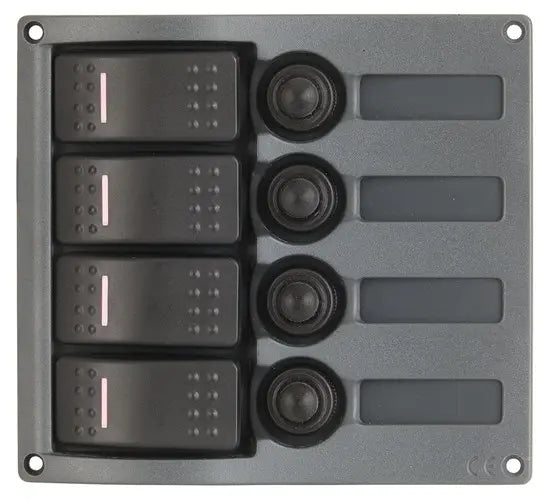

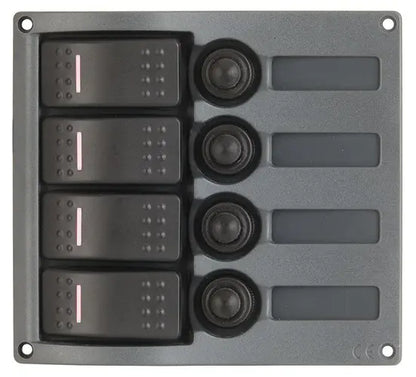

The Powertech SZ1906 4-Way IP66 Marine Switch Panel is built for tough marine and outdoor environments. Featuring four “Carling” style rocker switches and integrated front panel resettable circuit breakers, it offers reliable control and protection for your 12V or 24V DC systems.
Engineered with an IP66 weatherproof rating, this panel resists dust and strong water jets, making it perfect for boats, caravans, and off-road vehicles exposed to harsh conditions. The durable ABS plastic housing and simple spade terminal connections ensure long-lasting performance and easy installation.
With the ability to mount vertically or horizontally, this compact and versatile panel is a dependable solution for powering and protecting multiple circuits in demanding applications.
Key Features
- 4 black “Carling” style rocker switches
- Front panel resettable circuit breakers (6A each)
- IP66-rated for dust and water resistance
- Suitable for 12V and 24V DC systems
- Durable ABS plastic housing
- Can be mounted vertically or horizontally

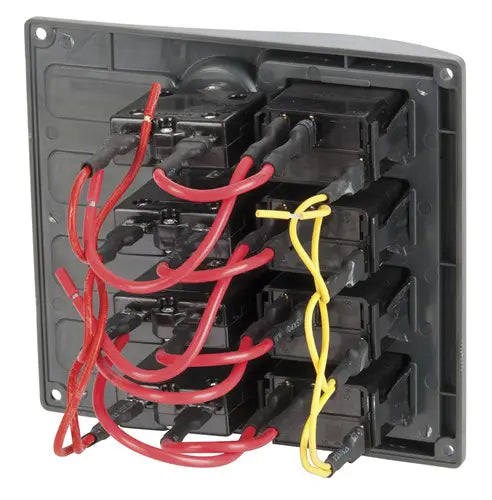

- Easy installation with spade terminal connections
Specifications
| Model Number | SZ1906 |
| Number of Switches | 4 |
| Switch Type | Rocker |
| Switch Style | “Carling” type |
| Switch Function | On/Off (1 position) |
| Switch Colour | Black |
| Voltage Rating | 12V / 24V DC |
| Individual Circuit Breakers | 6A (resettable) |
| IP Rating | IP66 (dust-tight, protected from strong water jets) |
| Switch Connection | Spade Terminals |
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| Dimensions (L x W) | 120mm x 130mm |
| Packaged Volume | 4.3L |
| Packaged Weight | 0.4kg |
| Packaged Size (L x W x H) | 22.1cm x 16.9cm x 11.5cm |
