Hardkorr - HKPSOLT1524V

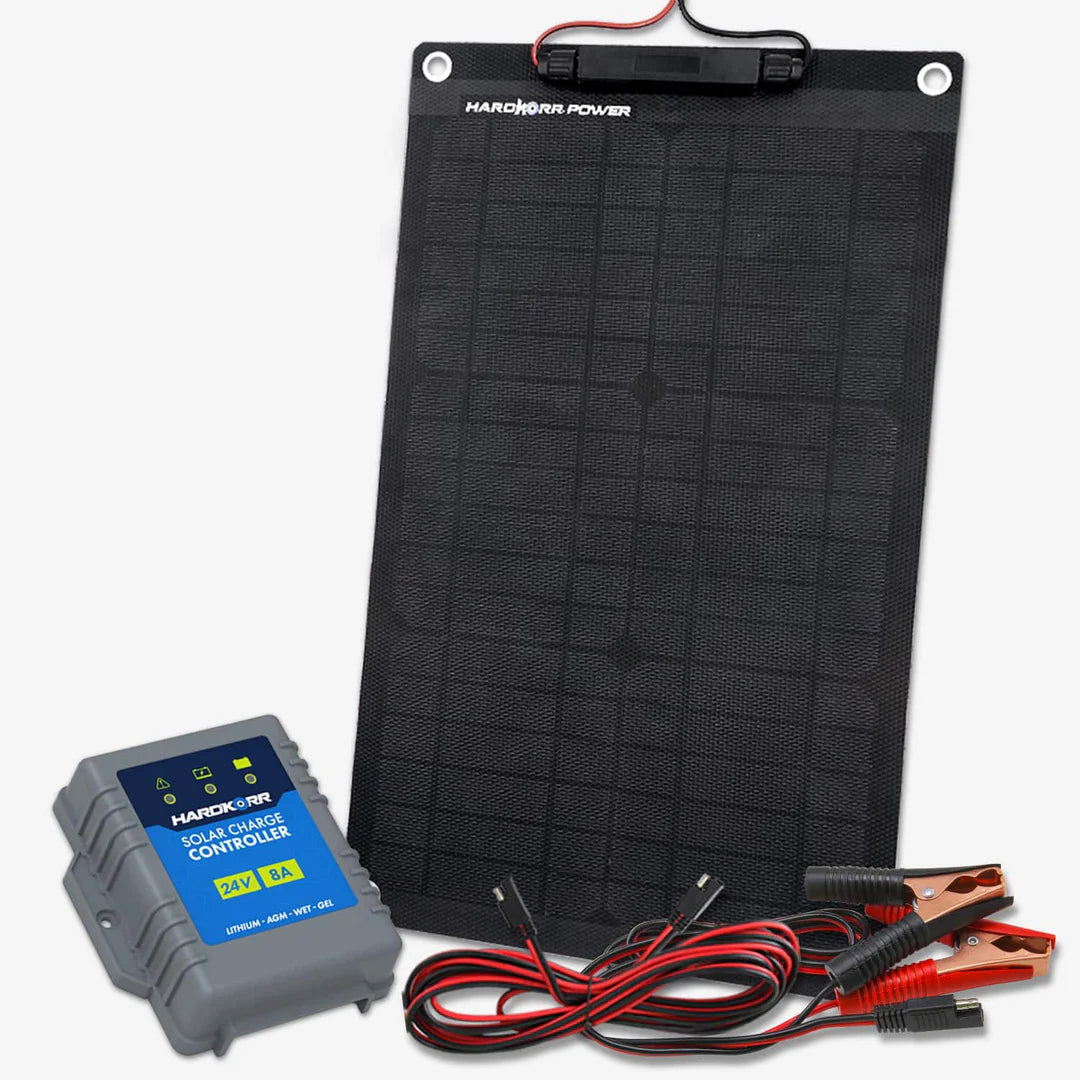

24v 15W Trickle Charger Solar Panel
24v 15W Trickle Charger Solar Panel
Couldn't load pickup availability
This 15w trickle charge solar panel will help you prolong the life of your 24v batteries, by topping them up when they’re not in use. It is ideal for caravans, boats, and machinery that periodically sit idle.
The built-in diode prevents reverse charging and ensures batteries do not become discharged at night, and the included controller protects against battery overcharge. It works with Lithium, AGM, gel and wet/flooded cell batteries.
How it works
Simply use the included alligator clamps and extension cable (if required) to connect your battery to the controller, and the controller to the solar panel. The panel incorporates pre-punched mounting holes if permanent fixture is desired.
Key features
- Built-in diode prevents battery from discharge at night
- Included controller protects batteries from overcharge
- Ultra-thin, lightweight and easy to transport
- Front face coated in our exclusive Crocskin® cell armour
- Frameless design, no rigid or breakable glass
- Fully waterproof and weatherproof
Specifications:
Cell type | A-grade monocrystalline silicon |
---|---|
Wattage | 15W |
Max. voltage | 35.28V |
Max. current | 420mA |
Open circuit | 42.3V |
Short circuit | 520mA |
Dimensions | 270(W) x 450(H) mm |
Cable gauge | 2 x 2.5mm2 (14AWG) |
Suitable battery types | AGM, Gel, Wet/Flooded |
Ingress Protection | IP65 |
Weight | 0.5kg |
Operating temperature | -20°C to 80°C |
Certifications | CE, RoHS, C-Tick |
Package Contents:
1x | 15w solar panel |
---|---|
1x | 8A waterproof (IP65) solar controller |
1x | 5m lead with bullet/SAE plugs |
1x | Bullet/SAE to battery clamp cable |
