LED - 100BARWM

12/24V Stop/Tail/Indicator/Reverse Assembly With 123 LEDs

12/24V Stop/Tail/Indicator/Reverse Assembly With 123 LEDs

$323.00 AUD
$323.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Specifications

Voltage 12 to 24
Light Style Stop/Tail/Indicator/Reverse Light
Light Type LED

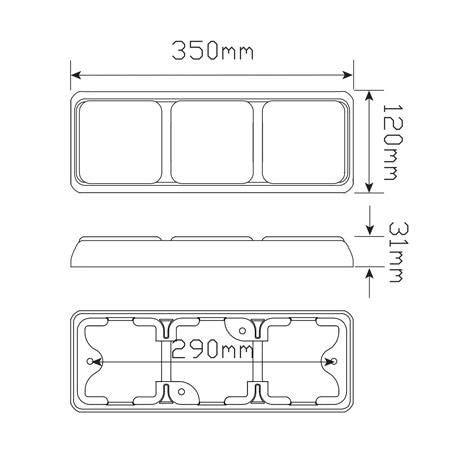

Mount Cnt to Cnt 290mm
Size 350 x 120 x 31mm
Current Stop: 0.33A, Tail: 0.06A, Indicator: 0.31A, Reverse: 0.17A @ 13.8V
Mount Surface Mount
Connector Pre-Wired
Environmental IP67
Compliance Stop/Tail: CRN33402, Indicator: CRN33156, Reverse: CRN35793
Length 44
Width 4.5
Height 19
Housing Colour black
Manufactured in China (Taiwan)

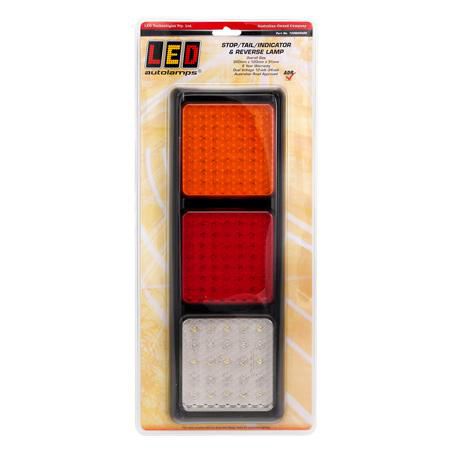

Packaging Blister Pack
Weight 0.7kg
Features
  • Individual Lens Replacements
  • ADR Road Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 5 Year Warranty
  • 350mm x 120mm x 31mm
