Micro fuses and MIDI fuses are both used in automotive, caravan, marine, 4WD and off-grid electrical systems, but they are not designed for the same job.
A micro fuse is a small blade-style fuse commonly used for lower-current circuits. A MIDI fuse is a larger bolt-down style fuse often used for higher-current battery and distribution circuits.
That difference matters because the fuse needs to suit the circuit, the cable, the current draw and the physical fuse holder being used. Choosing a fuse just because it fits, or using a higher-rated fuse because the correct lower rating is not available in the right format, can create problems later.
This is especially common in modern 12V systems where a larger MIDI-style fuse layout is used, but a smaller accessory circuit needs lower-amp protection. In that situation, a MIDI-to-micro fuse adapter can help bridge the gap.

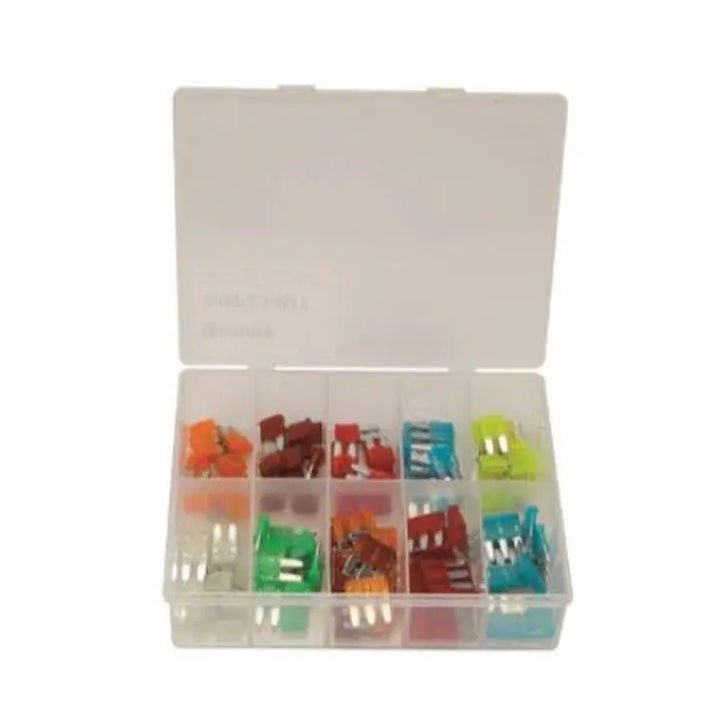

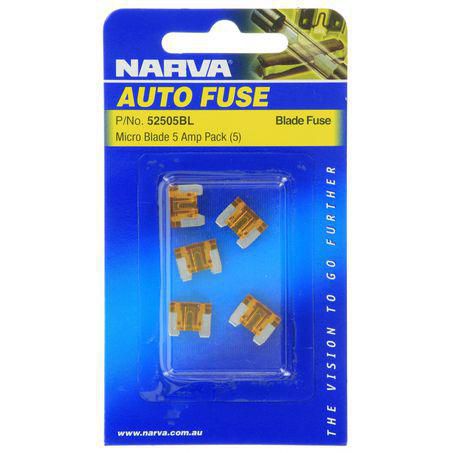

What is a micro fuse?
A micro fuse is a compact blade-style fuse used for smaller electrical circuits. It is commonly found in vehicles and low-current accessory installations where space is limited and the circuit does not require a large bolt-down fuse.
Micro fuses are often used for circuits such as:
- Small 12V accessories
- Control circuits
- Switch panels
- UHF radios and communication equipment
- Battery monitors
- Small LED lighting circuits
- Relay trigger circuits
- Camera systems and display screens
- USB outlets and low-current charging points
The key advantage of a micro fuse is that it gives you access to lower-amp fuse protection in a compact format. That makes it useful for smaller accessories and electronics in 12V systems.
What is a MIDI fuse?
A MIDI fuse is a larger style of fuse commonly used in higher-current DC circuits. It is usually mounted with studs or bolts rather than pushed into a small blade fuse socket.
MIDI fuses are commonly used in:
- Dual battery systems
- Battery-to-distribution feeds
- DC-DC charger circuits
- Inverter supply wiring
- Solar regulator and charging circuits
- Auxiliary battery systems
- Work vehicle power systems
- Caravan, canopy and marine battery setups
MIDI fuses are popular because they are compact for their current capacity, easy to mount in purpose-built holders, and suitable for many higher-current 12V and 24V applications.
The problem is not that MIDI fuses are bad. They are very useful in the right part of the system. The problem appears when a low-current circuit is forced into a MIDI fuse layout and the available fuse ratings are higher than the circuit really needs.
Micro fuse vs MIDI fuse: the main differences
| Feature | Micro Fuse | MIDI Fuse |
|---|---|---|
| Typical format | Small blade-style fuse | Larger bolt-down style fuse |
| Common use | Low-current accessory and control circuits | Higher-current battery and distribution circuits |
| Physical size | Compact | Larger than a micro fuse |
| Installation style | Push-in fuse holder or fuse box position | Mounted in a MIDI fuse holder or fuse block |
| Best suited to | Small accessories, electronics and low-amp circuits | Battery feeds, chargers, inverters and higher-current wiring |
| Common issue | May not suit higher-current circuits | May not provide low enough fuse ratings for small circuits |
Why the difference matters
A fuse is not just there to complete a circuit. It is there to protect the wiring and equipment if something goes wrong.
If the fuse is too small, it may blow unnecessarily. If the fuse is too large, it may not open quickly enough during a fault. If the fuse format does not suit the holder, it may not make proper contact or may become unreliable in a vehicle or marine environment.
This is why the difference between micro fuses and MIDI fuses matters. They are different formats for different types of circuits.
A properly designed 12V system may use both. The higher-current parts of the system may use MIDI fuses, while smaller accessory circuits may be better suited to micro fuses or other lower-current fuse formats.
Where the mismatch happens
The mismatch usually happens when the main system is built around MIDI fuse holders, but one of the circuits needs lower-amp protection.
For example, a 4WD canopy setup might use MIDI fuses for the DC-DC charger and battery distribution, but also need to protect smaller circuits for a UHF radio, monitor, switch panel or lighting control. Those smaller circuits may not need a large fuse, but the existing fuse layout may only have MIDI-style positions available.
That leaves a few options:
- Use a larger MIDI fuse than the circuit really needs
- Add another separate fuse holder for the smaller circuit
- Redesign part of the fuse layout
- Use a suitable adapter that allows a micro fuse to be used in the MIDI-style position
The last option is where the Battery Force MIDI-to-Micro Fuse Adapter becomes useful.
Can you use a micro fuse in a MIDI fuse holder?
Not directly. A micro fuse and a MIDI fuse are physically different. They do not use the same body shape, mounting style or connection method.
A micro blade fuse should not be forced into a MIDI fuse holder, clamped in place, packed out, modified or installed as a workaround. Poor contact can create heat, intermittent faults or unreliable protection.
However, a micro fuse can be used in a MIDI-style fuse position when a properly designed adapter is used.
For a direct answer to this question, read: Can You Use a Micro Fuse in a MIDI Fuse Holder?
When should you use a micro fuse?
A micro fuse is generally suitable for smaller circuits where lower-amp protection is required and the fuse holder is designed for that fuse format.
Common examples include:
- Low-current 12V accessories
- Electronic control circuits
- Switching circuits
- Small lighting circuits
- Communication equipment
- Display screens and battery monitors
- Small loads in caravans, canopies, boats and campers
The exact fuse rating should always be selected based on the accessory, current draw, cable size, cable length and manufacturer recommendations.
When should you use a MIDI fuse?
A MIDI fuse is generally used where a circuit needs higher-current protection in a compact and secure format.
Common examples include:
- Auxiliary battery feeds
- DC-DC charger input or output circuits
- Inverter supply circuits
- Solar charging circuits
- Main distribution feeds
- High-current accessories
- 12V and 24V vehicle power systems
MIDI fuses are useful, reliable and common in 12V systems. They just should not be treated as the best answer for every circuit, especially when a smaller accessory needs more precise low-amp protection.
For more on this, see: MIDI Fuse Holders: When They Work Well and When They Don’t
Why using the wrong fuse size can be a problem
Using the wrong fuse size can create two different problems.
If the fuse is too small, the circuit may blow fuses under normal use. That is annoying, but it is usually obvious.
If the fuse is too large, the problem can be more serious. The circuit may continue operating during a fault for longer than it should. That can allow heat to build in wiring, connectors or accessories before the fuse opens.
In low-current circuits, this can happen when someone uses a higher-rated MIDI fuse simply because it fits the existing holder.
That is not a good reason to choose a fuse.
For more detail, read: Why You Shouldn’t Oversize a Fuse in a 12V System
How a MIDI-to-micro fuse adapter helps
A MIDI-to-micro fuse adapter helps when the system already has a MIDI-style fuse position, but the circuit needs a lower-amp micro blade fuse.
Instead of using an oversized MIDI fuse, adding another fuse holder or changing the whole layout, the adapter allows a micro fuse to be used in that MIDI-style position.
This can help keep the installation:
- Cleaner
- More compact
- Easier to inspect
- Easier to troubleshoot
- Better matched to the actual circuit requirements
The Battery Force MIDI-to-Micro Fuse Adapter is designed for this exact situation: low-amp protection where a micro blade fuse is needed in a MIDI-style fuse layout.
Who is this useful for?
This type of adapter is useful for people building, repairing or upgrading 12V systems where the fuse format does not match the circuit requirement.
That includes:
- 4WD owners wiring canopy accessories
- Caravan owners adding small 12V loads
- Auto electricians cleaning up fuse layouts
- Marine installers working in compact battery spaces
- Work vehicle fitters adding electronics or control gear
- Campers and touring setups with mixed-current circuits
- Off-grid users adding smaller DC accessories
Battery Force ships Australia-wide, so this solution is available whether you are working on a local install in WA or ordering parts for a touring, caravan, work vehicle or marine setup elsewhere in Australia.
Choosing the right fuse for a 12V accessory
The correct fuse rating depends on more than the accessory alone. You need to consider the full circuit.
Before choosing a fuse, check:
- The accessory manufacturer’s recommended fuse rating
- The normal and maximum current draw
- The cable size
- The cable run length
- The environment the cable is installed in
- The type of fuse holder being used
- Whether the system is exposed to vibration, heat or moisture
For a broader guide, read: What Fuse Size Do I Need for 12V Accessories?
Related guides
This article is part of our 12V fuse protection guide series. You may also find these helpful:
- Micro Fuse Adapter Guide: How to Protect Low-Amp Circuits in 12V Systems
- Can You Use a Micro Fuse in a MIDI Fuse Holder?
- Why You Shouldn’t Oversize a Fuse in a 12V System
- What Fuse Size Do I Need for 12V Accessories?
- MIDI Fuse Holders: When They Work Well and When They Don’t
- How to Protect Low-Current Accessories in a 4WD, Caravan or Canopy Setup
- The Fuse Problem No One Talks About Until Something Melts
Frequently asked questions
Are micro fuses and MIDI fuses the same?
No. Micro fuses and MIDI fuses are different fuse formats. A micro fuse is a small blade-style fuse, while a MIDI fuse is a larger bolt-down style fuse commonly used in higher-current DC circuits.
Can a micro fuse replace a MIDI fuse?
Not directly. A micro fuse cannot simply replace a MIDI fuse because the physical format is different. In some low-amp applications, a micro fuse may be used in a MIDI-style position with a suitable MIDI-to-micro fuse adapter.
What is a MIDI fuse used for?
A MIDI fuse is commonly used for higher-current circuits such as battery feeds, DC-DC chargers, inverters, solar charging circuits and main distribution wiring in 12V and 24V systems.
What is a micro fuse used for?
A micro fuse is commonly used for lower-current circuits, small accessories, control circuits, communication equipment, monitors, lighting controls and other compact 12V electronics.
Why would I need a MIDI-to-micro fuse adapter?
You may need a MIDI-to-micro fuse adapter when your system uses a MIDI-style fuse position, but the circuit needs lower-amp protection from a micro blade fuse.
Where can I buy a MIDI-to-micro fuse adapter in Australia?
You can order the Battery Force MIDI-to-Micro Fuse Adapter online from Battery Force, with shipping available across Australia.
Final thoughts
Micro fuses and MIDI fuses both have an important place in 12V systems, but they are used for different types of circuits.
Micro fuses are useful for low-current accessories and electronics. MIDI fuses are useful for higher-current battery and distribution circuits. The trouble starts when the fuse holder format does not match the fuse rating the circuit actually needs.
For systems that use MIDI-style fuse positions but need lower-amp protection, the Battery Force MIDI-to-Micro Fuse Adapter provides a clean way to use a micro blade fuse without adding unnecessary extra fuse holders or oversizing the fuse.
