If you are working on a 12V system and wondering whether you can use a micro fuse in a MIDI fuse holder, the simple answer is: not directly.
A micro blade fuse and a MIDI fuse are different physical fuse formats. They are not designed to be swapped like-for-like, and a micro fuse should not simply be forced, packed, clamped or improvised into a MIDI fuse holder.
However, there is a practical solution. With the right adapter, a micro blade fuse can be used in a MIDI-style fuse position to provide lower-amp protection for smaller 12V circuits.
That is exactly what the Battery Force MIDI-to-Micro Fuse Adapter is designed for.
Why this question comes up
This issue usually appears when a 12V system has been built around MIDI fuse holders, but one of the circuits needs a lower fuse rating than the available MIDI fuse range provides.
That can happen in 4WDs, caravans, canopies, boats, work vehicles and off-grid battery systems. The main battery system might be using MIDI fuses for higher-current protection, while smaller accessories need more precise low-amp protection.
Common examples include:
- UHF radios
- Battery monitors
- Switch panels
- Small LED lighting circuits
- Relay trigger circuits
- Control modules
- Camera systems
- USB outlets and small charging circuits
- Low-current DC accessories
These accessories may not need a large fuse. In many cases, using a fuse that is too large defeats the purpose of having the correct circuit protection in the first place.
What is the difference between a micro fuse and a MIDI fuse?

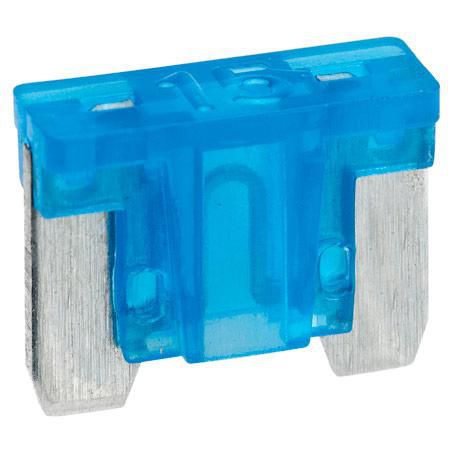

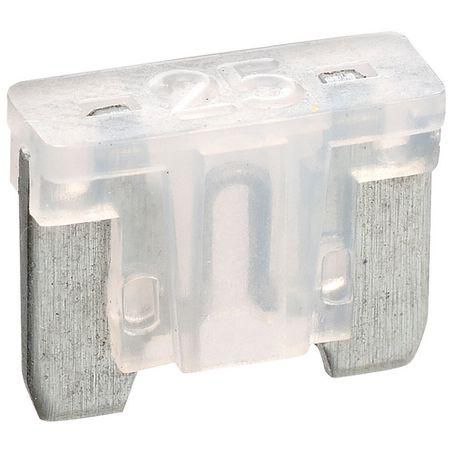

A micro fuse is a small blade-style fuse commonly used for lower-current automotive and accessory circuits. A MIDI fuse is a larger bolt-down style fuse often used in higher-current 12V and 24V applications.
The important difference here is physical format. A micro fuse and a MIDI fuse do not share the same shape, mounting style or connection method.
That means a micro fuse will not naturally fit into a MIDI holder without an adapter designed for that purpose.
For a broader comparison, read our guide: Micro Fuse vs MIDI Fuse: What’s the Difference?
Can you put a micro fuse directly into a MIDI fuse holder?
No. A micro blade fuse should not be installed directly into a MIDI fuse holder by itself.
A MIDI fuse holder is designed for a different fuse body and contact arrangement. Trying to make a micro fuse fit without the correct adapter can create poor contact, unreliable protection, heat build-up, vibration issues or a circuit that does not behave as expected.
In a vehicle, caravan, canopy or marine environment, vibration and movement make this even more important. The fuse must be held securely and make proper electrical contact.
How can a micro fuse be used in a MIDI-style fuse position?
A micro fuse can be used in a MIDI-style fuse position by using a properly designed MIDI-to-micro fuse adapter.
The adapter acts as the bridge between the MIDI-style mounting location and the smaller micro blade fuse. This allows the circuit to use a lower-amp micro fuse while still working within the existing MIDI-style fuse layout.
This is useful when you want to avoid:
- Adding another inline fuse holder
- Changing the whole fuse block layout
- Using a fuse that is too large for the circuit
- Creating a messy workaround in an otherwise clean installation
- Mixing more fuse holders and wiring joins than necessary
The Battery Force MIDI-to-Micro Fuse Adapter is made for this exact type of low-amp protection problem.
Why not just use the closest MIDI fuse?
It can be tempting to use the smallest MIDI fuse available and move on, but that may still be too large for the circuit you are trying to protect.
A fuse should be selected to suit the circuit, not just the holder. It needs to match the cable, accessory, current draw and installation requirements. If the fuse is too large, it may not open early enough in a fault condition.
That can increase the risk of:
- Overheated wiring
- Melted insulation
- Accessory damage
- Electrical faults that are harder to diagnose
- Unsafe modifications to a 12V system
We cover this in more detail here: Why You Shouldn’t Oversize a Fuse in a 12V System.
When does a MIDI-to-micro fuse adapter make sense?
A MIDI-to-micro fuse adapter makes sense when the system already has a MIDI-style fuse position, but the circuit needs lower-amp protection than a standard MIDI fuse option can provide.
This can be useful in:
- 4WD canopy power systems
- Dual battery installations
- Caravan accessory wiring
- Camper trailer electrical systems
- Marine DC circuits
- Work vehicle accessory systems
- Off-grid battery setups
- Compact battery boxes and control panels
It is especially useful where space is tight and you want to keep the fuse layout simple, tidy and easy to inspect later.
When should you avoid using one?
A fuse adapter should not be used as a shortcut around poor system design.
You should pause and get advice before using one if:
- You are unsure what fuse rating the circuit needs
- You do not know the cable size or cable run length
- The circuit is part of a high-current battery or inverter setup
- The existing fuse holder is damaged or corroded
- The installation has signs of overheating
- You are modifying a commercial, marine or safety-critical system
The adapter solves a physical fuse compatibility issue. It does not replace proper fuse sizing, correct wiring or safe installation.
What fuse size should you use?
The correct fuse size depends on the accessory, current draw, cable size, cable length and manufacturer recommendations.
Do not choose a fuse size only because it is available. The fuse must suit the circuit it is protecting.
As a general rule, check:
- The accessory manufacturer’s recommended fuse rating
- The expected current draw of the device
- The cable size used for the circuit
- The length of the cable run
- The environment the wiring is installed in
- Whether the circuit is exposed to heat, vibration or moisture
For a more detailed guide, see: What Fuse Size Do I Need for 12V Accessories?
Why this matters in Australian 12V systems
Australian 4WD, caravan and work vehicle setups often carry a mix of heavy-duty and low-current gear. A single system might power a fridge, lights, battery charger, UHF, compressor, camera, monitor and switch panel.
That mix makes circuit protection more important, not less.
When everything is packed into a canopy, battery box, drawer system, caravan compartment or under-bonnet installation, it is easy for small circuits to become an afterthought. But those smaller circuits still need the right fuse.
A MIDI-to-micro fuse adapter gives installers and DIY users a cleaner way to handle those lower-amp circuits without undoing the existing MIDI-style layout.
Recommended solution
For this specific situation, Battery Force offers the Battery Force MIDI-to-Micro Fuse Adapter.
It is designed for low-amp protection situations where a micro blade fuse is needed in a MIDI-style fuse position. It is suitable for a wide range of 12V accessory and control circuit applications, including 4WD, caravan, canopy, marine and off-grid battery systems.
Battery Force ships across Australia, so whether you are building a touring setup in WA, upgrading a caravan in Queensland, working on a canopy in Victoria or maintaining a work vehicle elsewhere in the country, this type of adapter can be ordered online and delivered to you.
Related guides
This article is part of our 12V fuse protection guide series. You may also find these useful:
- Micro Fuse Adapter Guide: How to Protect Low-Amp Circuits in 12V Systems
- Micro Fuse vs MIDI Fuse: What’s the Difference?
- Why You Shouldn’t Oversize a Fuse in a 12V System
- What Fuse Size Do I Need for 12V Accessories?
- MIDI Fuse Holders: When They Work Well and When They Don’t
- How to Protect Low-Current Accessories in a 4WD, Caravan or Canopy Setup
- The Fuse Problem No One Talks About Until Something Melts
Frequently asked questions
Can a micro fuse fit in a MIDI fuse holder?
A micro fuse does not directly fit in a MIDI fuse holder because the two fuse types use different physical formats. To use a micro fuse in a MIDI-style fuse position, you need a suitable adapter.
What does a MIDI-to-micro fuse adapter do?
A MIDI-to-micro fuse adapter allows a micro blade fuse to be used in a MIDI-style fuse location. This can help provide lower-amp protection for smaller 12V circuits without adding another fuse holder.
Is it safe to use a micro fuse adapter?
It can be safe when the adapter is suitable for the application and the fuse is correctly selected for the circuit. The wiring, cable size, current draw and installation condition still need to be checked.
Why would I use a micro fuse instead of a MIDI fuse?
You may use a micro fuse when the circuit needs lower-amp protection than the available MIDI fuse option provides. This is common with small 12V accessories, monitors, communication equipment, lighting controls and electronic control circuits.
Can I just use a bigger fuse instead?
No. A larger fuse should not be used simply because it fits the holder. A fuse that is too large may not protect the wiring or accessory correctly in a fault condition.
Where can I buy a MIDI-to-micro fuse adapter in Australia?
You can buy the Battery Force MIDI-to-Micro Fuse Adapter online from Battery Force, with shipping available across Australia.
Final answer
You cannot use a micro fuse directly in a MIDI fuse holder, because the two fuse types are physically different. But with the right MIDI-to-micro fuse adapter, you can use a micro blade fuse in a MIDI-style fuse position for low-amp 12V protection.
That makes it a useful solution for 4WD, caravan, canopy, marine, work vehicle and off-grid systems where the fuse holder is already in place but the circuit needs a more suitable lower-amp fuse.
