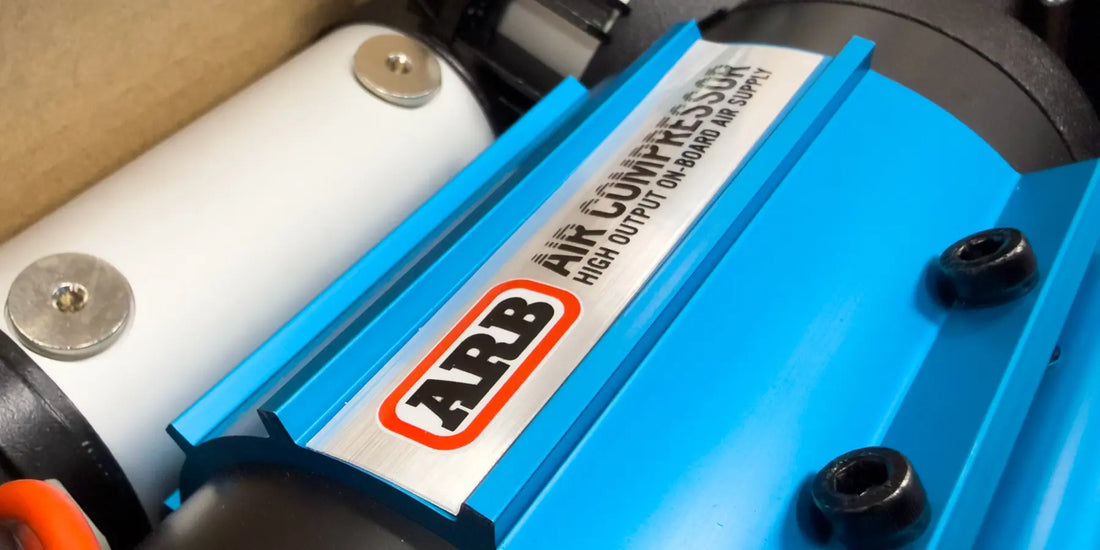

Installing an ARB air compressor isn’t just about bolting it in and connecting a couple of wires. Whether you're wiring a CKMA12 single compressor or a CKMTA12 twin compressor, proper cable sizing and fuse placement are critical for performance, reliability and safety.
Incorrect wiring is one of the most common causes of poor compressor performance.
This guide explains what matters - and why.
Why Proper Wiring Matters
ARB compressors draw significant current under load.
If wiring is undersized or poorly earthed, you may experience:
- Reduced airflow performance
- Slow inflation times
- Excessive heat build-up
- Voltage drop
- Premature component wear
In twin compressor setups especially, poor wiring can dramatically affect output.
Step 1 - Understand Current Draw
The ARB CKMA12 single compressor draws substantially less current than the CKMTA12 twin.
The twin compressor can draw high current under load - which means:
- Heavier cable is required
- Battery condition matters
- Fuse sizing must be correct
- Voltage drop becomes more critical
Always refer to ARB's official specifications for exact current ratings before selecting cable.
Step 2 - Cable Size Selection
Cable size is not about length alone - it's about current draw and voltage drop.
As a general principle:
- Higher current = thicker cable
- Longer cable runs = thicker cable
- Twin compressors require larger cable than singles
Undersized cable causes voltage drop, which:
- Reduces compressor efficiency
- Increases heat
- Stresses electrical components
If mounting under bonnet with a short battery run, voltage drop is easier to manage. Rear-mounted compressors require even more careful cable sizing.
When in doubt, overspec slightly rather than underspec.
Step 3 - Voltage Drop Explained
Voltage drop is the loss of voltage between the battery and the compressor due to resistance in the cable.
Excessive voltage drop leads to:
- Lower motor speed
- Reduced LPM output
- Increased current draw
- Heat build-up
For high-draw accessories like compressors, keeping voltage drop minimal is critical for maintaining performance.
This is especially important when:
- Running dual battery systems
- Using auxiliary batteries
- Mounting compressors in canopies
Step 4 - Fuse Placement & Protection
Fuse placement is about protecting the cable - not the compressor.
The main fuse must be:
- Installed as close to the battery positive terminal as possible
- Rated appropriately for compressor current draw
- Securely mounted
If the cable shorts and no fuse is present near the battery, the cable can overheat rapidly.
Twin compressors require larger fuses than single units due to higher current draw.
Never increase fuse size beyond recommended ratings to "solve" nuisance blowing - that indicates a wiring or installation issue.
Step 5 - Earth (Ground) Connections
Poor earth connections are one of the most common wiring faults.
Ensure:
- Clean, bare metal contact
- Secure bolt fastening
- No paint or corrosion between contact surfaces
- Short earth runs where possible
A weak earth can mimic voltage drop and reduce compressor performance.
Step 6 - Wiring with Dual Battery Systems
If your compressor runs off an auxiliary battery:
- Ensure the battery can handle high current draw
- Confirm isolator capacity
- Avoid undersized interconnect cables
- Monitor voltage under load
Twin compressors draw significantly more current, so auxiliary systems must be built accordingly.
Step 7 - Relays & Switching
ARB compressors typically include relay wiring to:
- Handle high current safely
- Protect switches
- Maintain circuit stability
Never wire high-draw compressors directly through light-duty switches without relay protection.
Common Wiring Mistakes
- Using automotive light-gauge cable
- Mounting fuse too far from battery
- Ignoring voltage drop
- Running earth through painted surfaces
- Mounting compressor in rear without upgrading cable size
These mistakes often lead to poor inflation performance and electrical faults.
Final Thoughts
Correct wiring is not optional - it directly affects compressor output, longevity and safety.
A properly wired ARB compressor will:
- Maintain consistent airflow
- Run cooler
- Inflate tyres faster
- Protect your vehicle’s electrical system
Whether you're installing a CKMA12 or stepping up to a CKMTA12 twin, take wiring seriously. High-performance 12V gear deserves high-quality electrical support.
Installation & Electrical Disclaimer
The information provided in this guide is for general educational purposes only. Vehicle electrical systems, battery configurations, cable sizing requirements and installation conditions vary significantly between vehicles and setups.
Battery Force does not accept liability for damage, injury, loss or faults resulting from the installation or use of products based on this guide. Always consult a qualified auto electrician or professional installer if you are unsure about any aspect of your installation.
