Redarc Universal Tow-Pro Wiring Kit

The REDARC TPWKIT-013 Universal Tow-Pro Wiring Kit supports the installation of the Tow-Pro Elite electric trailer brake controller into a wide range of vehicles.

It is suitable for vehicles where the start battery, Tow-Pro main unit and the cable run to the cabin are all in-line, via a 1.8m power cable length.

The Universal Tow-Pro Wiring Kit range replaces Tow-Pro Wiring Kit range and consolidates the range from 10 kits down to 3.

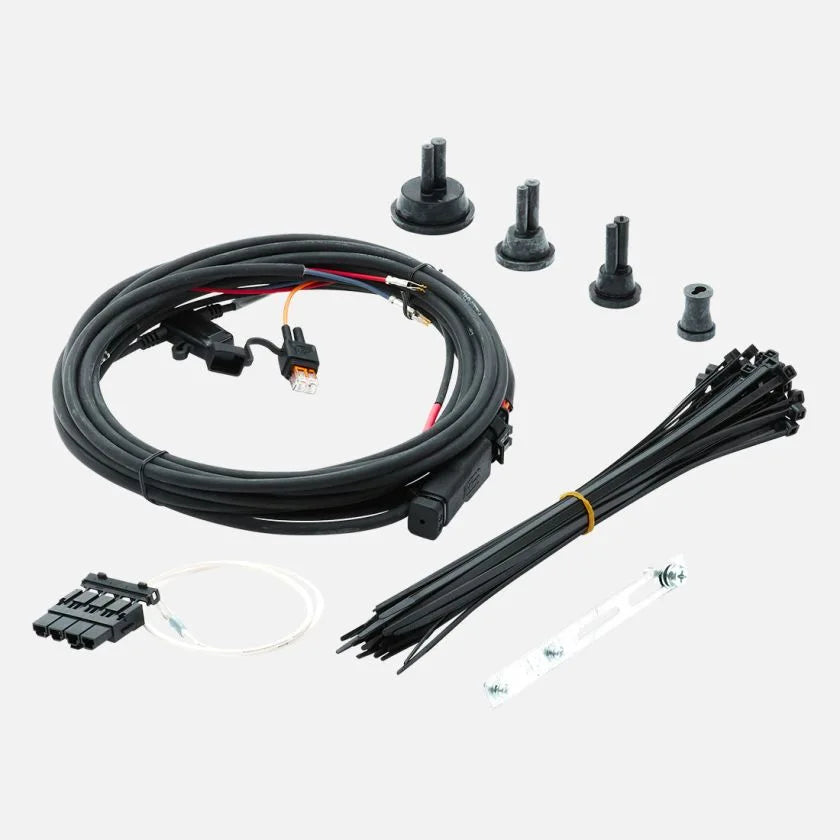

The Universal Tow-Pro Wiring Kit comes with the complete range of hardware required to install a Tow-Pro Elite brake controller and contains a Wago Boot, Protection Device, Wiring Harness, Mounting Bracket and fitting instructions.

REDARC’s new Universal range of Wiring Kits feature technology, come preinstalled with the Encapsulated Protection Device and compatible with modern driver aids such as Autonomous Emergency Braking, Adaptive Cruise Control, lane departure, collision avoidance and where the vehicle brake signal may be generated from different systems.

The standard 1m Remote Head cable that comes supplied in the Tow-Pro Elite (EBRH-ACCV3) will support the location of the remote head in the centre of the vehicle when the main unit is located around the glovebox area. If the preferred location for the remote head in these instances is on the driver’s side, you will need to purchase and fit the 2m remote head cable.

By using a REDARC Tow-Pro Wiring Kit you ensure a quick and high-quality installation of Australia’s favourite brake controller, the Tow-Pro Elite.

REDARC offer a wide range of accessories to aid and assist the install of the market-leading Tow-Pro Elite into most vehicles including Switch Inserts, Remote Head Wiring Kits and a Mounting Bracket Kit.

For technical support or any other enquiries contact our Technical Support Team on 1800 REDARC.
