Seasoned tourers know that, after a fridge, the most-used accessory is a 12v air compressor.
Correct tyre pressures determine grip, heat build-up, steering feel and carcass life; you lower pressures for sand or rock then restore them for bitumen, and the vehicle simply behaves.
The only practical question is configuration - an arb air compressor mounted in the vehicle, ready on a switch, or a portable air compressor that travels between rigs and jobs.
Portable or mounted?
Portable air compressor.
Housed in a case and powered from the car battery (or Anderson), a portable unit reaches any wheel, any trailer and most sporting equipment via a long air hose. It’s flexible and easy to lend, although deployment takes a minute, heat soak demands pauses on big tyres, and storage must protect the intake and electrics from dust or water.

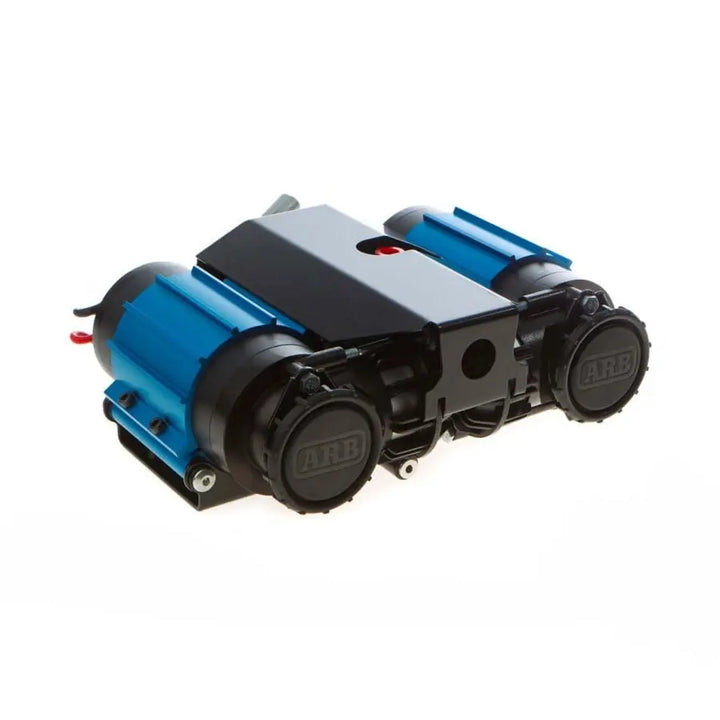

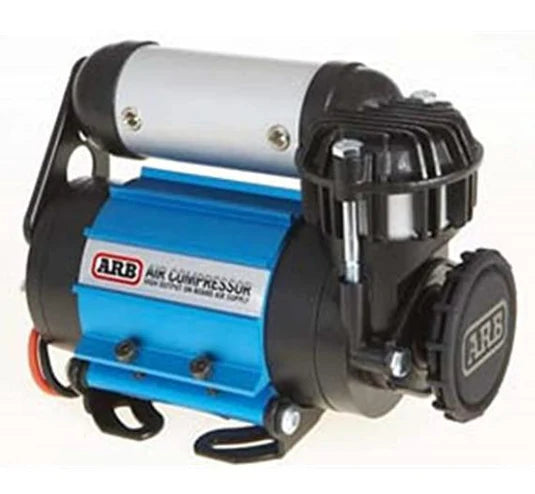

Hard-mounted ARB compressor.
An arb compressor installed in the engine bay or rear quarter connects to a dash switch and a quick-connect fitting; plug in, and inflating tyres begins immediately. Add a small air tank if you want faster bursts, steadier pressure for lockers, or brief powering air tools. Fitment requires heavy-gauge cable, a fuse located near the battery, and a mount away from exhaust heat and splash - do it once and it feels factory.
What actually matters (beyond the logo)
- Flow rate (L/min). Higher flow shortens stops; large all-terrains and caravans justify a high-output 4wd air compressor or twin piston.
- Duty cycle. A real indicator of endurance; if you air up eight tyres routinely, buy heavy duty and avoid thermal cycling.
- Current draw and voltage drop. Big airflow means big amps; short, thick cable and clean earths keep the motor at its design speed.
- Thermal design. Metal heads, sensible ducting and fan assist delay cut-out.
- Hose, couplers and pressure gauge. Standard quick-connects, a 6-10 m hose and an accurate gauge turn guesswork into repeatable tyre inflation.
- Maximum pressure. Enough for highway loads and tiny trailer casings; small volumes are easy to over-shoot.
If you’re comparing an air compressor online, those six items reveal more than the brochure adjectives.
A disciplined routine that works everywhere
- Choose targets - sand, track, highway - and write them on the sun visor.
- Deflate efficiently with a valve-core tool so the compressor isn’t doing unnecessary work.
- Connect once. Mounted arb air compressor via the rear quick-connect; portable via clamps or Anderson.
- Walk the vehicle clockwise: inflate, cap, move; don’t forget the spare.
- Recheck after ten minutes on road because casing temperature increases pressure.
Reliability, safety and small habits
Compressed air components run hot; let the head cool before repacking. Cap couplers so grit can’t chew o-rings.
For portables, store high and dry; for fixed units, add regular maintenance to the service list - inspect wiring, intake filters and mounts at each oil change.
If thermal cut-out trips, that’s protection working; increase airflow and pause. Slow performance usually traces to low system voltage: measure at the compressor under load - if the reading sags, you’ve built in resistance.
Can a 12V setup run tools?
Briefly, yes. A quality arb compressor will free a stubborn bolt or seat a bead, particularly with a small air tank acting as a buffer; for sustained work, mains gear still wins. Think of 12V as field capability rather than a workshop substitute.
Extras that earn their keep
- Tyre deflator to halve air-down time.
- Inflation kit with blow gun and needles for balls and mattresses.
- Inline filter when the mount lives in a dusty cavity.
- Spare valve cores and caps - they disappear precisely when you’re on schedule.
Frequently asked questions
-
Why carry air when servos exist?
Remote beaches and forest roads don’t; a compressor converts best-practice pressures into habit, not hope. -
Portable or mounted - what’s quicker?
Flow rate dictates total time; mounted wins on setup. -
What fails first?
Poor wiring and crushed hoses; build the power path correctly and coil the hose loosely. -
How often should I test it?
Run it at home monthly; you’ll catch leaks early and keep the routine familiar.
Final thoughts
A dependable 12v air compressor - whether a compact portable air unit or a hard-mounted arb compressor - turns the air-down/air-up cycle into a two-minute ritual. Choose the format that matches your travel, wire it correctly, keep an honest gauge in the pouch, and your tyres will grip better off-road, track straighter on highway and live longer everywhere - the kind of quiet upgrade you notice all trip.
